Magnitude |
:4.1 |
| Date & Time (UTC) | 2017-12-05 09:23:43.2 |
| Date & Time (Local) | 1396/9/14 12:53:43.2 |

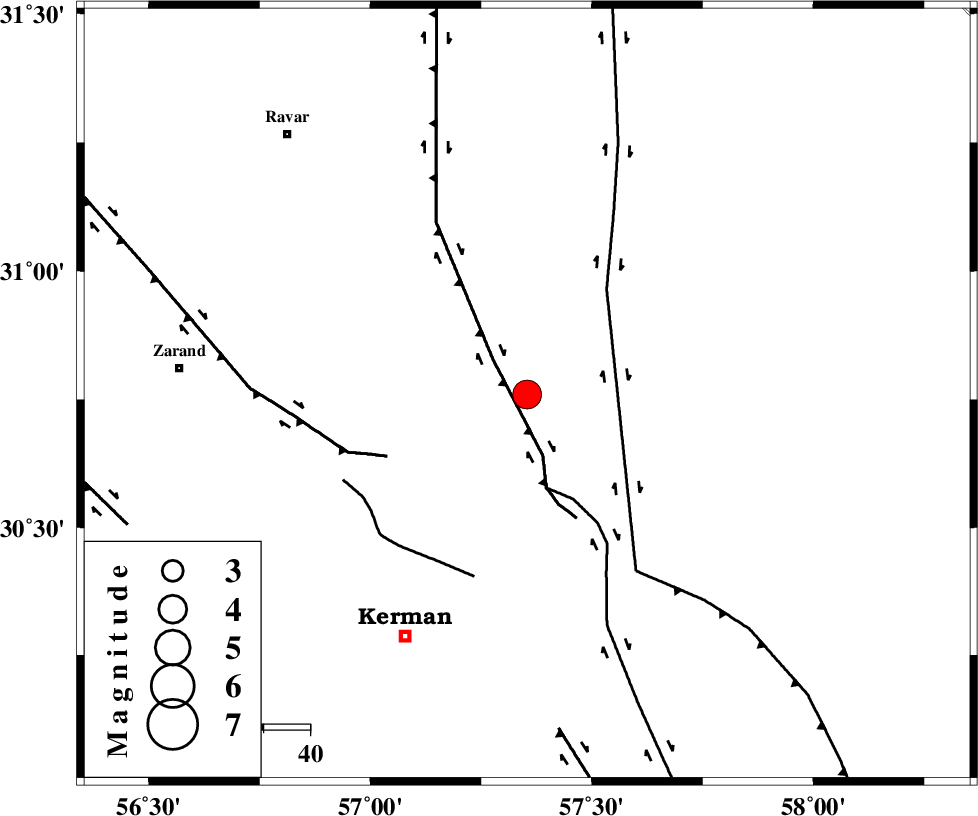

| Location | Lat:30.76 Lon: 57.354 |
| Region | Kerman Province, 59 km North-East of Kerman |
Nearest Cities |
|
| 24 km North East of Harjand, Kerman Province | |
| 30 km North of Dehlulu, Kerman Province | |
| 36 km East of Hejdak, Kerman Province | |
| 45 km North East of Hutak, Kerman Province | |
| 46 km North East of Chatrud, Kerman Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| LAKARKUH_F (Length: 138 km) , Distance to epicenter: 10 km | |
| GOLBAF_SIRCH_F (Length: 114 km) , Distance to epicenter: 21 km | |
| NAYBAND_F (Length: 258 km) , Distance to epicenter: 29 km | |
| Number of Phases | 17 |
| RMS | 0.3 |
| Number of Stations | 15 |
| Error in Latitude | >2.3 km |
| Error in Longitude | 2.8 km |
| Error in Depth | 5.6 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 123629 | IIEES | BSRN | N | 2107.8 | 0.52 | 2017-12-05 09:24:51 | 2017-12-05 10:41:00 | n |
| 123630 | IIEES | BSRN | E | 1321.2 | 0.47 | 2017-12-05 09:24:51 | 2017-12-05 10:41:00 | n |
| 123631 | IIEES | TABS | N | 508.2 | 0.53 | 2017-12-05 09:25:31 | 2017-12-05 10:41:00 | n |
| 123632 | IIEES | BNDS | N | 174.1 | 0.43 | 2017-12-05 09:25:40 | 2017-12-05 10:41:00 | n |
| 123633 | IIEES | SHRO | N | 53.1 | 0.54 | 2017-12-05 09:26:36 | 2017-12-05 10:41:00 | n |
| 123634 | IIEES | SHRO | E | 60.9 | 0.54 | 2017-12-05 09:26:44 | 2017-12-05 10:41:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | KRBR | Z | Pg | E | 2017-12-05 09:24:01 | 0.16 | y | 103 | 214 | |||
| IIEES | KRBR | N | Sg | E | 2017-12-05 09:24:13 | -0.26 | y | 103 | 214 | |||
| IIEES | BSRN | Z | Pn | E | 2017-12-05 09:24:17 | 0.12 | y | 215 | 51 | |||
| IIEES | BSRN | N | Sg | E | 2017-12-05 09:24:44 | 0.06 | y | 215 | 51 | |||
| IIEES | YZKH | Z | Pn | E | 2017-12-05 09:24:30 | -0.06 | y | 318 | 305 | |||
| IIEES | TABS | Z | Pn | E | 2017-12-05 09:24:30 | -0.42 | y | 321 | 356 | |||
| IIEES | ZHSF | Z | Pn | E | 2017-12-05 09:24:34 | -0.55 | y | 353 | 110 | |||
| IIEES | BNDS | Z | Pn | E | 2017-12-05 09:24:40 | 0.55 | y | 390 | 197 | |||
| IIEES | SHRT | Z | Pn | E | 2017-12-05 09:24:43 | 0.15 | y | 423 | 40 | |||
| IIEES | NASN | Z | Pn | E | 2017-12-05 09:24:52 | 0.41 | y | 486 | 299 | |||
| IIEES | GHIR | Z | Pn | E | 2017-12-05 09:24:53 | -0.3 | y | 504 | 238 | |||
| IIEES | SHRO | Z | Pn | E | 2017-12-05 09:25:04 | -0.29 | y | 595 | 348 | |||
| IIEES | CHBR | Z | Pn | E | 2017-12-05 09:25:11 | 0.35 | y | 649 | 151 | |||
| IIEES | KHMZ | Z | Pn | E | 2017-12-05 09:25:26 | 0.16 | y | 771 | 297 | |||
| IIEES | MRVT | Z | Pn | E | 2017-12-05 09:25:27 | 0.43 | y | 774 | 352 | |||
| IIEES | ASAO | Z | Pn | E | 2017-12-05 09:25:30 | -0.43 | y | 805 | 303 | |||
| IIEES | THKV | Z | Pn | E | 2017-12-05 09:25:34 | 0.28 | y | 831 | 315 | |||
