Magnitude |
:3.8 |
| Date & Time (UTC) | 2017-12-08 07:39:44.0 |
| Date & Time (Local) | 1396/9/17 11:09:44.0 |

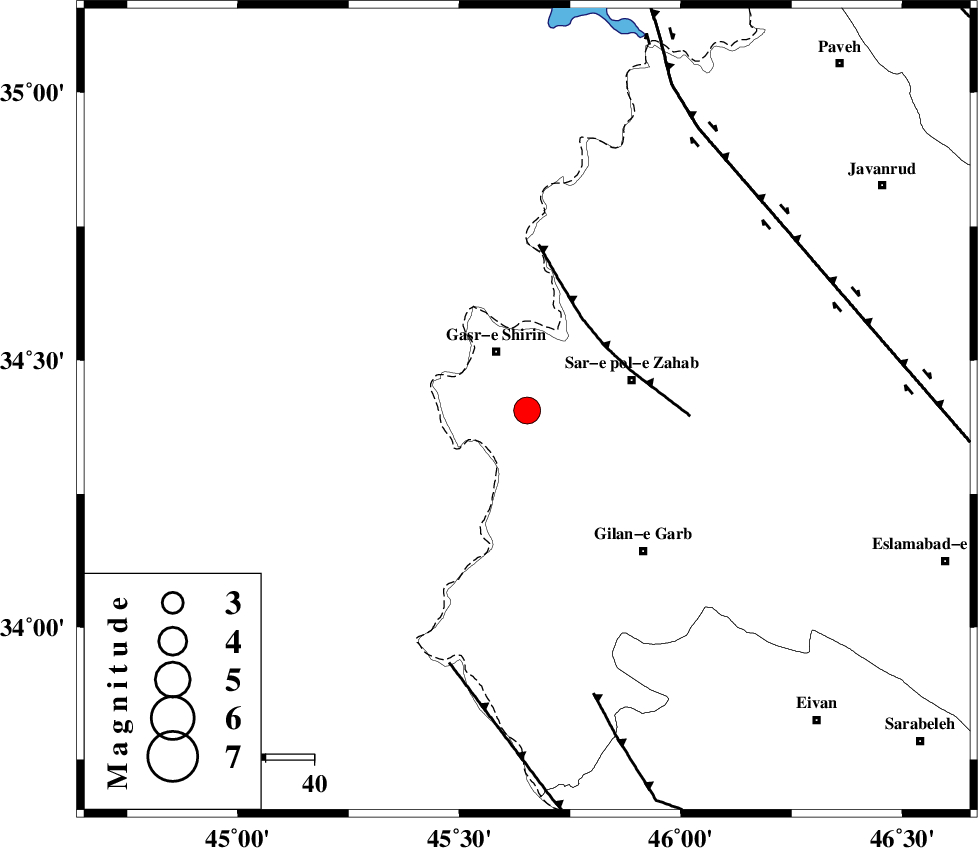

| Location | Lat:34.406 Lon: 45.653 |
| Region | Kermanshah Province, 14 km South of Qasr-E-Shirin |
Nearest Cities |
|
| 7 km of Seyyed sohrab, Kermanshah Province | |
| 14 km South of Qasr-E-Shirin, Kermanshah Province | |
| 15 km West of Qareh belagh, Kermanshah Province | |
| 16 km South of Aqabarar, Kermanshah Province | |
| 16 km North East of Khosravi, Kermanshah Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| MFF8 (Length: 48 km) , Distance to epicenter: 21 km | |
| ZFF4 (Length: 128 km) , Distance to epicenter: 55 km | |
| MFF7 (Length: 99 km) , Distance to epicenter: 61 km | |
| Number of Phases | 16 |
| RMS | 0.7 |
| Number of Stations | 14 |
| Error in Latitude | >4.1 km |
| Error in Longitude | 9.7 km |
| Error in Depth | 9.9 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 123772 | IIEES | SNGE | N | 1123.8 | 0.58 | 2017-12-08 07:40:40 | 2017-12-09 08:56:00 | n |
| 123773 | IIEES | SNGE | E | 662.1 | 0.78 | 2017-12-08 07:40:49 | 2017-12-09 08:56:00 | n |
| 123774 | IIEES | GIDE | E | 84.1 | 0.44 | 2017-12-08 07:42:14 | 2017-12-09 08:56:00 | n |
| 123775 | IIEES | GIDE | N | 101.1 | 0.71 | 2017-12-08 07:42:28 | 2017-12-09 08:56:00 | n |
| 123776 | IIEES | GHVR | N | 53.7 | 0.77 | 2017-12-08 07:42:25 | 2017-12-09 08:56:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | ILBA | Z | Pg | E | 2017-12-08 07:40:00 | -0.17 | y | 101 | 149 | |||
| IIEES | ILBA | N | Sg | E | 2017-12-08 07:40:13 | 0.38 | y | 101 | 149 | |||
| IIEES | SNGE | Z | Pg | E | 2017-12-08 07:40:11 | -0.73 | y | 173 | 63 | |||
| IIEES | SNGE | E | Sg | E | 2017-12-08 07:40:34 | 0.49 | y | 173 | 63 | |||
| IIEES | ASAO | Z | Pn | E | 2017-12-08 07:40:42 | 0.81 | y | 402 | 87 | |||
| IIEES | KHMZ | Z | Pn | E | 2017-12-08 07:40:41 | -0.12 | y | 405 | 99 | |||
| IIEES | GIDE | Z | Pn | E | 2017-12-08 07:40:54 | 3.68 | n | 4 | 476 | 53 | ||
| IIEES | THKV | Z | Pn | E | 2017-12-08 07:40:53 | -0.97 | y | 505 | 69 | |||
| IIEES | GHVR | Z | Pn | E | 2017-12-08 07:40:55 | 0.07 | y | 514 | 88 | |||
| IIEES | CHTH | Z | Pn | E | 2017-12-08 07:40:57 | -0.07 | y | 526 | 70 | |||
| IIEES | GRMI | Z | Pn | E | 2017-12-08 07:40:57 | 0.06 | y | 528 | 22 | |||
| IIEES | MAKU | Z | Pn | E | 2017-12-08 07:41:01 | 0.84 | y | 556 | 351 | |||
| IIEES | DAMV | Z | Pn | E | 2017-12-08 07:41:05 | -0.35 | y | 592 | 75 | |||
| IIEES | NASN | Z | Pn | E | 2017-12-08 07:41:17 | 0.19 | y | 687 | 103 | |||
| IIEES | GHIR | Z | Pn | E | 2017-12-08 07:41:51 | -0.65 | y | 973 | 132 | |||
| IIEES | BNDS | Z | Pn | E | 2017-12-08 07:42:26 | -3.1 | y | 1269 | 125 | |||
