Magnitude |
:3.2 |
| Date & Time (UTC) | 2017-12-09 03:30:05.4 |
| Date & Time (Local) | 1396/9/18 07:00:05.4 |

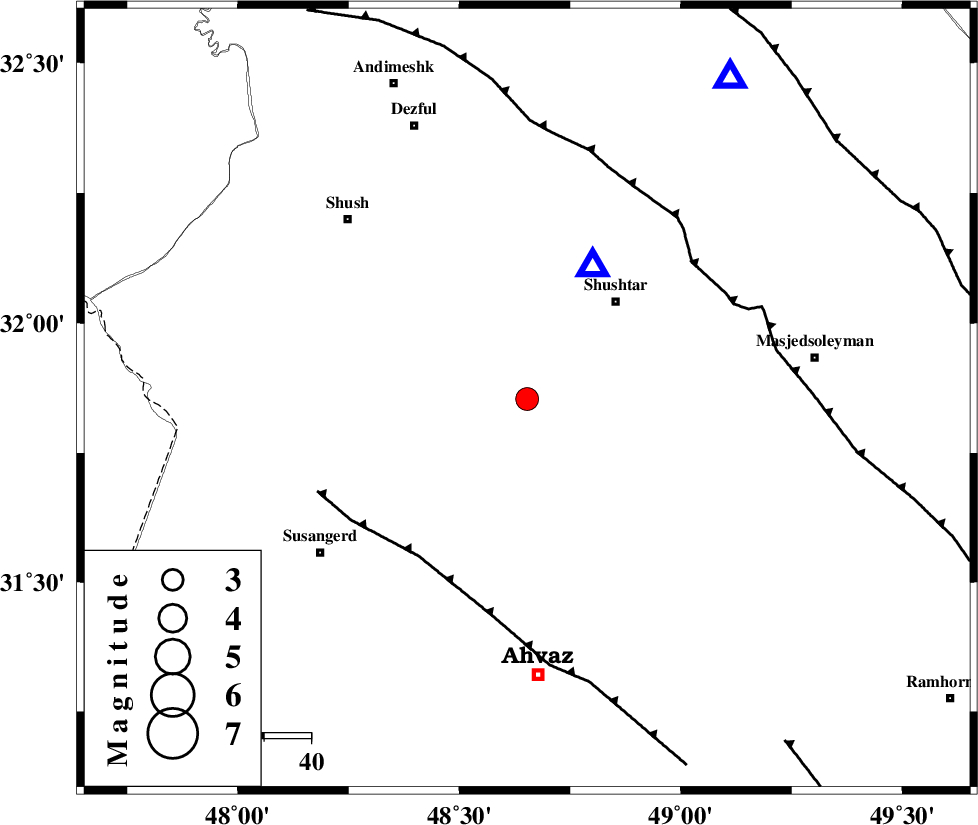

| Location | Lat:31.854 Lon: 48.653 |
| Region | Khoozestan Province, 28 km South-West of Shushtar |
Nearest Cities |
|
| 21 km West of Mehdiabad, Khoozestan Province | |
| 22 km South West of Sardarabad, Khoozestan Province | |
| 23 km North West of Arabhasan, Khoozestan Province | |
| 26 km North East of Abdolkhan-eali, Khoozestan Province | |
| 28 km South West of Shushtar, Khoozestan Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| AHVAZ_F (Length: 99 km) , Distance to epicenter: 41 km | |
| DEZFUL_EMBAYMENT (Length: 228 km) , Distance to epicenter: 46 km | |
| MFF2 (Length: 205 km) , Distance to epicenter: 86 km | |
| Number of Phases | 12 |
| RMS | 0.4 |
| Number of Stations | 10 |
| Error in Latitude | >5.8 km |
| Error in Longitude | 6.5 km |
| Error in Depth | 9 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 123881 | IIEES | KHMZ | E | 104.3 | 0.41 | 2017-12-09 03:31:20 | 2017-12-10 08:19:00 | n |
| 123882 | IIEES | ASAO | E | 49.3 | 0.72 | 2017-12-09 03:31:44 | 2017-12-10 08:19:00 | n |
| 123883 | IIEES | ASAO | N | 55.3 | 0.6 | 2017-12-09 03:31:46 | 2017-12-10 08:19:00 | n |
| 123884 | IIEES | GHVR | E | 39.9 | 0.61 | 2017-12-09 03:32:05 | 2017-12-10 08:19:00 | n |
| 123885 | IIEES | GHVR | N | 41.2 | 0.71 | 2017-12-09 03:32:10 | 2017-12-10 08:19:00 | n |
| 123886 | IIEES | THKV | N | 24.5 | 0.88 | 2017-12-09 03:32:45 | 2017-12-10 08:19:00 | n |
| 123887 | IIEES | DAMV | N | 10.7 | 0.54 | 2017-12-09 03:32:42 | 2017-12-10 08:19:00 | n |
| 123888 | IIEES | DAMV | E | 11.6 | 0.97 | 2017-12-09 03:32:47 | 2017-12-10 08:19:00 | n |
| 123889 | IIEES | YZKH | N | 7.1 | 0.64 | 2017-12-09 03:32:53 | 2017-12-10 08:19:00 | n |
| 123890 | IIEES | YZKH | E | 17.1 | 0.85 | 2017-12-09 03:32:55 | 2017-12-10 08:19:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | KHMZ | Z | Pn | E | 2017-12-09 03:30:43 | 0.15 | y | 243 | 30 | |||
| IIEES | KHMZ | E | S | E | 2017-12-09 03:31:11 | -0.11 | y | 243 | 30 | |||
| IIEES | ILBA | Z | Pn | E | 2017-12-09 03:30:50 | -0.29 | y | 302 | 311 | |||
| IIEES | ASAO | Z | Pn | E | 2017-12-09 03:30:54 | 0.35 | y | 325 | 23 | |||
| IIEES | ASAO | E | Sg | E | 2017-12-09 03:31:36 | -0.28 | y | 325 | 23 | |||
| IIEES | GHVR | Z | Pn | E | 2017-12-09 03:31:00 | 0.72 | y | 379 | 39 | |||
| IIEES | NASN | Z | Pn | E | 2017-12-09 03:31:02 | -0.91 | y | 405 | 74 | |||
| IIEES | THKV | Z | Pn | E | 2017-12-09 03:31:14 | 0.12 | y | 495 | 24 | |||
| IIEES | CHTH | Z | Pn | E | 2017-12-09 03:31:15 | -0.28 | y | 505 | 26 | |||
| IIEES | DAMV | Z | Pn | E | 2017-12-09 03:31:18 | 0.57 | y | 520 | 35 | |||
| IIEES | ZNJK | Z | Pn | E | 2017-12-09 03:31:19 | -0.07 | y | 534 | 0 | |||
| IIEES | YZKH | Z | Pn | E | 2017-12-09 03:31:23 | 0.12 | y | 563 | 82 | |||
