Magnitude |
:3 |
| Date & Time (UTC) | 2017-12-09 02:16:33.3 |
| Date & Time (Local) | 1396/9/18 05:46:33.3 |

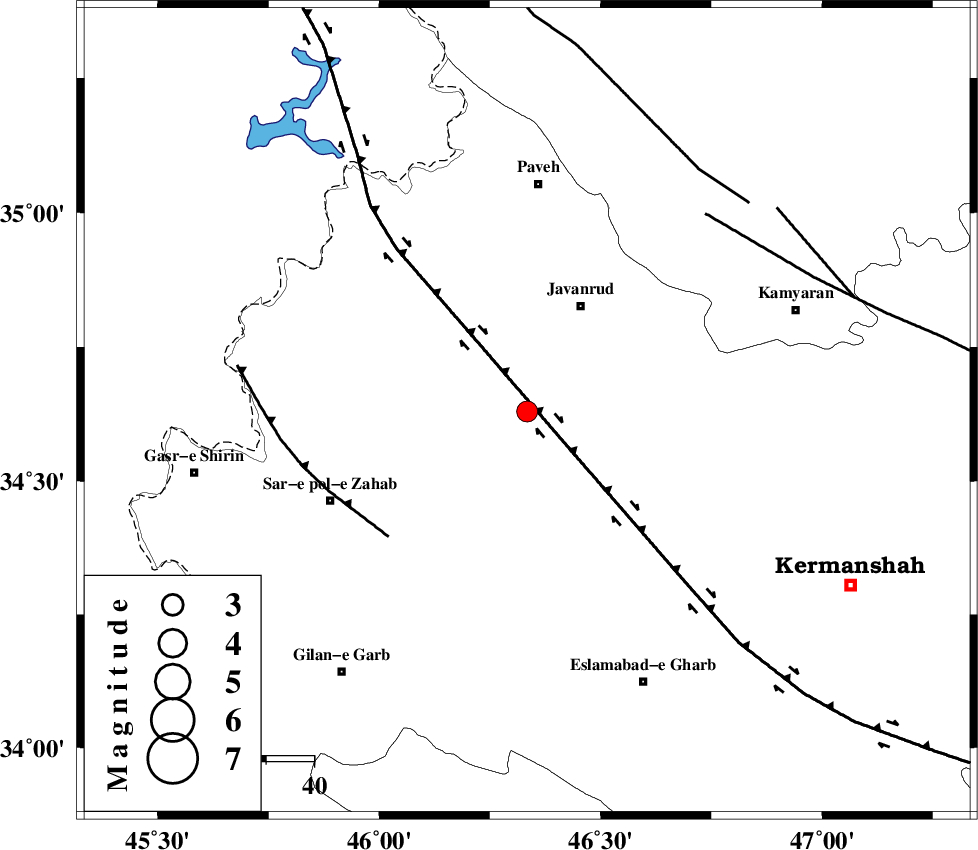

| Location | Lat:34.63 Lon: 46.334 |
| Region | Kermanshah Province, 25 km South-West of Javanrud |
Nearest Cities |
|
| 7 km of Mirabad, Kermanshah Province | |
| 14 km West of Dolatabad, Kermanshah Province | |
| 15 km North of Zavleh olia, Kermanshah Province | |
| 18 km South West of Sarukhan, Kermanshah Province | |
| 19 km East of Qolqoleh, Kermanshah Province | |
| Depth | 8 km |
| Agency | |
Faults within 150 km: |
|
| HZF4 (Length: 492 km) , Distance to epicenter: 9 km | |
| MFF8 (Length: 48 km) , Distance to epicenter: 39 km | |
| SARTAKHT_F (Length: 78 km) , Distance to epicenter: 55 km | |
| Number of Phases | 12 |
| RMS | 0.4 |
| Number of Stations | 10 |
| Error in Latitude | >4.1 km |
| Error in Longitude | 7.5 km |
| Error in Depth | 5.7 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 123891 | IIEES | SNGE | E | 402.1 | 0.53 | 2017-12-09 02:17:08 | 2017-12-10 08:19:00 | n |
| 123892 | IIEES | SNGE | N | 462.7 | 0.45 | 2017-12-09 02:17:08 | 2017-12-10 08:19:00 | n |
| 123893 | IIEES | ILBA | N | 365.2 | 0.27 | 2017-12-09 02:17:14 | 2017-12-10 08:19:00 | n |
| 123894 | IIEES | ASAO | N | 23.2 | 0.69 | 2017-12-09 02:18:23 | 2017-12-10 08:19:00 | n |
| 123895 | IIEES | ASAO | E | 27.3 | 0.49 | 2017-12-09 02:18:25 | 2017-12-10 08:19:00 | n |
| 123896 | IIEES | KHMZ | N | 14.9 | 0.53 | 2017-12-09 02:18:22 | 2017-12-10 08:19:00 | n |
| 123897 | IIEES | KHMZ | E | 29.9 | 0.64 | 2017-12-09 02:18:37 | 2017-12-10 08:19:00 | n |
| 123898 | IIEES | GIDE | N | 18.7 | 0.59 | 2017-12-09 02:18:46 | 2017-12-10 08:19:00 | n |
| 123899 | IIEES | GIDE | E | 19.3 | 0.39 | 2017-12-09 02:18:48 | 2017-12-10 08:19:00 | n |
| 123900 | IIEES | GHVR | N | 18.5 | 0.68 | 2017-12-09 02:19:01 | 2017-12-10 08:19:00 | n |
| 123901 | IIEES | GHVR | E | 24.6 | 0.78 | 2017-12-09 02:19:05 | 2017-12-10 08:19:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | SNGE | Z | Pg | E | 2017-12-09 02:16:51 | -0.54 | y | 106 | 61 | |||
| IIEES | SNGE | N | Sg | E | 2017-12-09 02:17:05 | -0.18 | y | 106 | 61 | |||
| IIEES | ILBA | Z | Pg | E | 2017-12-09 02:16:52 | -0.72 | y | 112 | 186 | |||
| IIEES | ILBA | N | Sg | E | 2017-12-09 02:17:07 | 0.26 | y | 112 | 186 | |||
| IIEES | ZNJK | Z | Pn | E | 2017-12-09 02:17:20 | 0.02 | y | 311 | 43 | |||
| IIEES | ASAO | Z | Pn | E | 2017-12-09 02:17:24 | 0.18 | y | 339 | 90 | |||
| IIEES | KHMZ | Z | Pn | E | 2017-12-09 02:17:25 | 0.51 | y | 349 | 105 | |||
| IIEES | GIDE | Z | Pn | E | 2017-12-09 02:17:33 | 0.39 | y | 411 | 51 | |||
| IIEES | GHVR | Z | Pn | E | 2017-12-09 02:17:38 | 0.36 | y | 451 | 91 | |||
| IIEES | CHTH | Z | Pn | E | 2017-12-09 02:17:38 | -0.08 | y | 458 | 71 | |||
| IIEES | GRMI | Z | Pn | E | 2017-12-09 02:17:42 | 0.25 | y | 484 | 16 | |||
| IIEES | DAMV | Z | Pn | E | 2017-12-09 02:17:47 | -0.18 | y | 526 | 76 | |||
