Magnitude |
:4.5 |
| Date & Time (UTC) | 2017-12-11 14:42:41.5 |
| Date & Time (Local) | 1396/9/20 18:12:41.5 |

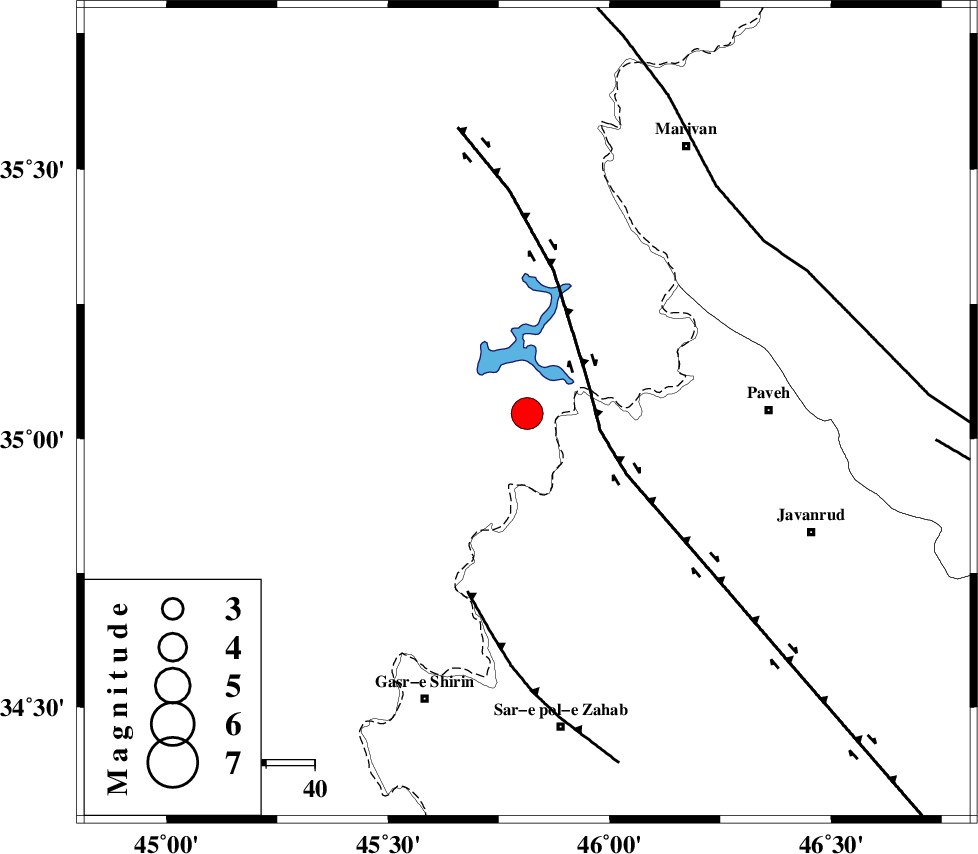

| Location | Lat:35.047 Lon: 45.814 |
| Region | Iraq, 32 km North of Tazehabad |
Nearest Cities |
|
| 13 km West of Markhil, Kermanshah Province | |
| 26 km North West of Dehsheykh, Kermanshah Province | |
| 29 km North West of Bayangan, Kermanshah Province | |
| 32 km North of Tazehabad, Kermanshah Province | |
| 32 km North West of Mazran, Kermanshah Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| HZF4 (Length: 492 km) , Distance to epicenter: 14 km | |
| MFF8 (Length: 48 km) , Distance to epicenter: 39 km | |
| PIRANSHAHR_F (Length: 253 km) , Distance to epicenter: 60 km | |
| Number of Phases | 16 |
| RMS | 0.5 |
| Number of Stations | 14 |
| Error in Latitude | >5.4 km |
| Error in Longitude | 5.9 km |
| Error in Depth | 7.4 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 124042 | IIEES | SNGE | E | 6584.8 | 0.38 | 2017-12-11 14:43:29 | 2017-12-12 07:10:00 | n |
| 124043 | IIEES | SNGE | N | 5571.4 | 0.7 | 2017-12-11 14:43:30 | 2017-12-12 07:10:00 | n |
| 124044 | IIEES | ILBA | N | 13861.6 | 0.48 | 2017-12-11 14:43:32 | 2017-12-12 07:10:00 | n |
| 124045 | IIEES | KHMZ | N | 439.6 | 0.41 | 2017-12-11 14:44:53 | 2017-12-12 07:10:00 | n |
| 124046 | IIEES | GIDE | N | 935.4 | 0.69 | 2017-12-11 14:44:50 | 2017-12-12 07:10:00 | n |
| 124047 | IIEES | GIDE | E | 732.4 | 0.69 | 2017-12-11 14:45:03 | 2017-12-12 07:10:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | SNGE | Z | Pg | E | 2017-12-11 14:43:04 | -0.68 | y | 140 | 88 | |||
| IIEES | SNGE | N | Sg | E | 2017-12-11 14:43:22 | 0.12 | y | 140 | 88 | |||
| IIEES | ILBA | Z | Pg | E | 2017-12-11 14:43:08 | 0.07 | y | 162 | 167 | |||
| IIEES | ZNJK | Z | Pn | E | 2017-12-11 14:43:28 | 0.28 | y | 316 | 54 | |||
| IIEES | ASAO | Z | Pn | E | 2017-12-11 14:43:38 | 1.01 | y | 389 | 97 | |||
| IIEES | KHMZ | Z | Pn | E | 2017-12-11 14:43:39 | -0.51 | y | 408 | 110 | |||
| IIEES | GIDE | Z | Pn | E | 2017-12-11 14:43:42 | 0.19 | y | 424 | 59 | |||
| IIEES | GRMI | Z | Pn | E | 2017-12-11 14:43:45 | -0.04 | y | 457 | 23 | |||
| IIEES | THKV | Z | Pn | E | 2017-12-11 14:43:48 | 0.58 | y | 470 | 77 | |||
| IIEES | MAKU | Z | Pn | E | 2017-12-11 14:43:49 | -0.33 | y | 489 | 348 | |||
| IIEES | CHTH | Z | Pn | E | 2017-12-11 14:43:50 | -0.19 | y | 491 | 77 | |||
| IIEES | GHVR | Z | Pn | E | 2017-12-11 14:43:51 | -0.2 | y | 501 | 96 | |||
| IIEES | DAMV | Z | Pn | E | 2017-12-11 14:43:58 | -0.32 | y | 563 | 82 | |||
| IIEES | NASN | Z | Pn | E | 2017-12-11 14:44:14 | -0.82 | y | 693 | 109 | |||
| IIEES | YZKH | Z | Pn | E | 2017-12-11 14:44:35 | -1.37 | y | 865 | 107 | |||
| IIEES | GHIR | Z | Pn | E | 2017-12-11 14:44:51 | -3.69 | n | 4 | 1012 | 136 | ||
