Magnitude |
:3.6 |
| Date & Time (UTC) | 2017-12-11 12:42:49.1 |
| Date & Time (Local) | 1396/9/20 16:12:49.1 |

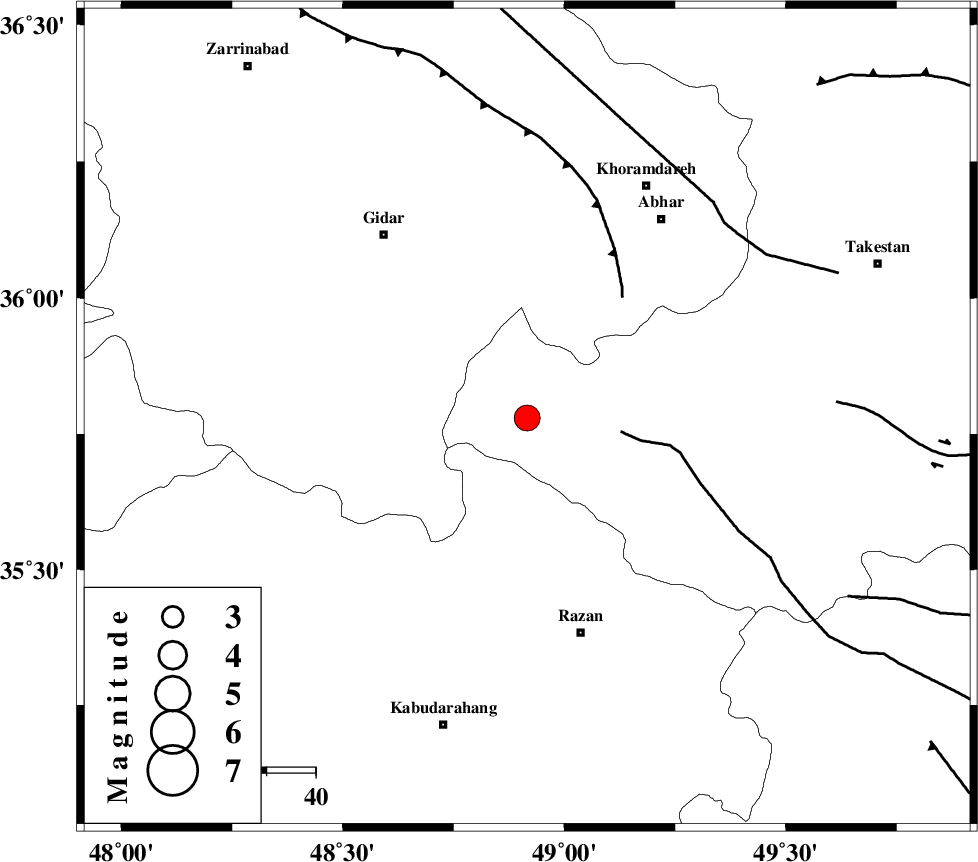

| Location | Lat:35.78 Lon: 48.916 |
| Region | Ghazvin Province, 45 km North-West of Razan |
Nearest Cities |
|
| 25 km North East of Kahla, Zanjan Province | |
| 31 km North East of Khorandeh, Hamedan Province | |
| 34 km North West of Ab-e garm, Ghazvin Province | |
| 36 km North West of Avaj, Ghazvin Province | |
| 39 km North of Damag, Hamedan Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| KUSHK_E_NOSRAT_F (Length: 230 km) , Distance to epicenter: 19 km | |
| SOLTANIYEH_F (Length: 119 km) , Distance to epicenter: 31 km | |
| ZANJAN_F (Length: 137 km) , Distance to epicenter: 57 km | |
| Number of Phases | 17 |
| RMS | 0.9 |
| Number of Stations | 16 |
| Error in Latitude | >5.9 km |
| Error in Longitude | 5.8 km |
| Error in Depth | 8.6 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 124048 | IIEES | GIDE | E | 1056.8 | 0.59 | 2017-12-11 12:43:43 | 2017-12-12 07:10:00 | n |
| 124049 | IIEES | GIDE | N | 1252.5 | 0.52 | 2017-12-11 12:43:44 | 2017-12-12 07:10:00 | n |
| 124050 | IIEES | SNGE | N | 466 | 0.41 | 2017-12-11 12:43:35 | 2017-12-12 07:10:00 | n |
| 124051 | IIEES | THKV | E | 577.9 | 0.47 | 2017-12-11 12:43:45 | 2017-12-12 07:10:00 | n |
| 124052 | IIEES | THKV | N | 625.8 | 0.36 | 2017-12-11 12:43:45 | 2017-12-12 07:10:00 | n |
| 124053 | IIEES | CHTH | N | 334.6 | 0.37 | 2017-12-11 12:43:52 | 2017-12-12 07:10:00 | n |
| 124054 | IIEES | KHMZ | E | 219.9 | 0.34 | 2017-12-11 12:44:01 | 2017-12-12 07:10:00 | n |
| 124055 | IIEES | KHMZ | N | 265.5 | 0.34 | 2017-12-11 12:44:04 | 2017-12-12 07:10:00 | n |
| 124056 | IIEES | DAMV | E | 367.8 | 0.36 | 2017-12-11 12:44:09 | 2017-12-12 07:10:00 | n |
| 124057 | IIEES | DAMV | N | 290.8 | 0.43 | 2017-12-11 12:44:09 | 2017-12-12 07:10:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | ZNJK | Z | Pg | E | 2017-12-11 12:43:05 | -0.37 | y | 101 | 348 | |||
| IIEES | GIDE | Z | Pg | E | 2017-12-11 12:43:14 | -0.15 | y | 155 | 35 | |||
| IIEES | SNGE | Z | Pg | E | 2017-12-11 12:43:14 | -1.11 | y | 162 | 242 | |||
| IIEES | ASAO | Z | Pg | E | 2017-12-11 12:43:16 | -1.05 | y | 170 | 143 | |||
| IIEES | THKV | Z | Pg | E | 2017-12-11 12:43:18 | -0.45 | y | 178 | 85 | |||
| IIEES | CHTH | Z | Pn | E | 2017-12-11 12:43:21 | -0.79 | y | 200 | 85 | |||
| IIEES | CHTH | N | Sg | E | 2017-12-11 12:43:45 | -0.39 | y | 200 | 85 | |||
| IIEES | KHMZ | Z | Pn | E | 2017-12-11 12:43:27 | 0.37 | y | 246 | 157 | |||
| IIEES | GHVR | Z | Pn | E | 2017-12-11 12:43:30 | 1.92 | y | 257 | 124 | |||
| IIEES | DAMV | Z | Pn | E | 2017-12-11 12:43:32 | 0.63 | y | 277 | 93 | |||
| IIEES | ILBA | Z | Pn | E | 2017-12-11 12:43:40 | 0.62 | y | 345 | 227 | |||
| IIEES | GRMI | Z | Pn | E | 2017-12-11 12:43:41 | 1.41 | y | 348 | 345 | |||
| IIEES | NASN | Z | Pn | E | 2017-12-11 12:43:57 | 0.32 | y | 488 | 132 | |||
| IIEES | SHRO | Z | Pn | E | 2017-12-11 12:44:16 | -0.36 | y | 641 | 86 | |||
| IIEES | YZKH | Z | Pn | E | 2017-12-11 12:44:17 | 0.34 | y | 645 | 124 | |||
| IIEES | MRVT | Z | Pn | E | 2017-12-11 12:44:20 | 0.32 | y | 674 | 70 | |||
| IIEES | TABS | Z | Pn | E | 2017-12-11 12:44:34 | -0.33 | y | 787 | 105 | |||
