Magnitude |
:2.9 |
| Date & Time (UTC) | 2017-12-12 19:48:55.1 |
| Date & Time (Local) | 1396/9/21 23:18:55.1 |

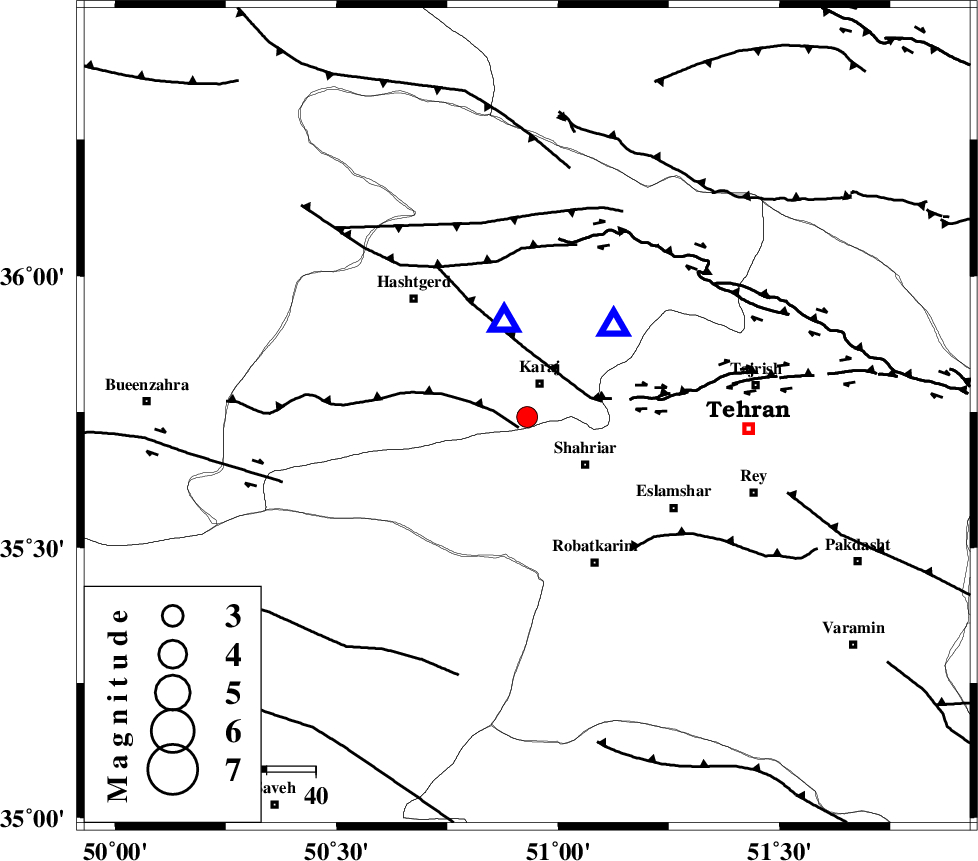

| Location | Lat:35.741 Lon: 50.93 |
| Region | Tehran Province, 7 km of Karaj |
Nearest Cities |
|
| 7 km of Karaj, Tehran Province | |
| 9 km North of Malard, Tehran Province | |
| 15 km North West of Shahriyar, Tehran Province | |
| 18 km North West of Joqin, Tehran Province | |
| 22 km South of Barghan, Tehran Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| ESHTEHARD_F (Length: 69 km) , Distance to epicenter: 3 km | |
| N_TEHRAN_F4 (Length: 115 km) , Distance to epicenter: 13 km | |
| MOSHA_F (Length: 234 km) , Distance to epicenter: 32 km | |
| Number of Phases | 15 |
| RMS | 0.4 |
| Number of Stations | 13 |
| Error in Latitude | >2.2 km |
| Error in Longitude | 3.5 km |
| Error in Depth | 4.3 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 124273 | IIEES | THKV | E | 4300.7 | 0.25 | 2017-12-12 19:49:03 | 2017-12-13 08:06:00 | n |
| 124274 | IIEES | THKV | N | 2936.1 | 0.19 | 2017-12-12 19:49:03 | 2017-12-13 08:06:00 | n |
| 124275 | IIEES | CHTH | E | 7412.3 | 0.08 | 2017-12-12 19:49:04 | 2017-12-13 08:06:00 | n |
| 124276 | IIEES | DAMV | N | 356.9 | 0.12 | 2017-12-12 19:49:23 | 2017-12-13 08:06:00 | n |
| 124277 | IIEES | DAMV | E | 386.1 | 0.14 | 2017-12-12 19:49:24 | 2017-12-13 08:06:00 | n |
| 124278 | IIEES | GHVR | E | 210.1 | 0.55 | 2017-12-12 19:49:43 | 2017-12-13 08:06:00 | n |
| 124279 | IIEES | GHVR | N | 189.1 | 0.63 | 2017-12-12 19:49:46 | 2017-12-13 08:06:00 | n |
| 124280 | IIEES | ASAO | E | 94.5 | 0.34 | 2017-12-12 19:49:42 | 2017-12-13 08:06:00 | n |
| 124281 | IIEES | ASAO | N | 105.1 | 0.34 | 2017-12-12 19:49:43 | 2017-12-13 08:06:00 | n |
| 124282 | IIEES | GIDE | N | 286.3 | 0.52 | 2017-12-12 19:49:48 | 2017-12-13 08:06:00 | n |
| 124283 | IIEES | GIDE | E | 193.2 | 0.52 | 2017-12-12 19:49:53 | 2017-12-13 08:06:00 | n |
| 124284 | IIEES | ZNJK | E | 66.1 | 0.33 | 2017-12-12 19:50:00 | 2017-12-13 08:06:00 | n |
| 124285 | IIEES | ZNJK | N | 66.2 | 0.24 | 2017-12-12 19:50:00 | 2017-12-13 08:06:00 | n |
| 124286 | IIEES | KHMZ | N | 31.1 | 0.6 | 2017-12-12 19:50:07 | 2017-12-13 08:06:00 | n |
| 124287 | IIEES | NASN | E | 14.2 | 0.62 | 2017-12-12 19:50:45 | 2017-12-13 08:06:00 | n |
| 124288 | IIEES | GRMI | E | 6.1 | 0.75 | 2017-12-12 19:50:59 | 2017-12-13 08:06:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | THKV | Z | Pg | E | 2017-12-12 19:48:59 | 0.28 | y | 19.9 | 347 | |||
| IIEES | CHTH | Z | Pg | E | 2017-12-12 19:49:00 | -0.32 | y | 25.7 | 44 | |||
| IIEES | DAMV | Z | Pg | E | 2017-12-12 19:49:10 | -0.48 | y | 95 | 97 | |||
| IIEES | GHVR | Z | Pg | E | 2017-12-12 19:49:19 | 0.18 | y | 143 | 168 | |||
| IIEES | ASAO | Z | Pg | E | 2017-12-12 19:49:21 | -0.09 | y | 156 | 212 | |||
| IIEES | GIDE | Z | Pg | E | 2017-12-12 19:49:21 | 0.17 | y | 160 | 325 | |||
| IIEES | ZNJK | Z | Pn | E | 2017-12-12 19:49:31 | 0.08 | y | 227 | 298 | |||
| IIEES | KHMZ | Z | Pn | E | 2017-12-12 19:49:32 | -0.01 | y | 239 | 202 | |||
| IIEES | KHMZ | E | Sg | E | 2017-12-12 19:50:02 | -0.13 | y | 239 | 202 | |||
| IIEES | SNGE | Z | Pn | E | 2017-12-12 19:49:47 | 3.39 | n | 4 | 333 | 259 | ||
| IIEES | NASN | Z | Pn | E | 2017-12-12 19:49:49 | 0.73 | y | 369 | 152 | |||
| IIEES | GRMI | Z | Pn | E | 2017-12-12 19:49:56 | -0.39 | y | 434 | 323 | |||
| IIEES | SHRO | Z | Pn | E | 2017-12-12 19:49:59 | -0.34 | y | 460 | 85 | |||
| IIEES | ILBA | Z | Pn | E | 2017-12-12 19:50:03 | -0.4 | y | 492 | 243 | |||
| IIEES | MRVT | Z | Pn | E | 2017-12-12 19:50:06 | 0.8 | y | 508 | 64 | |||
