Magnitude |
:3.2 |
| Date & Time (UTC) | 2017-12-14 22:02:22.0 |
| Date & Time (Local) | 1396/9/24 01:32:22.0 |

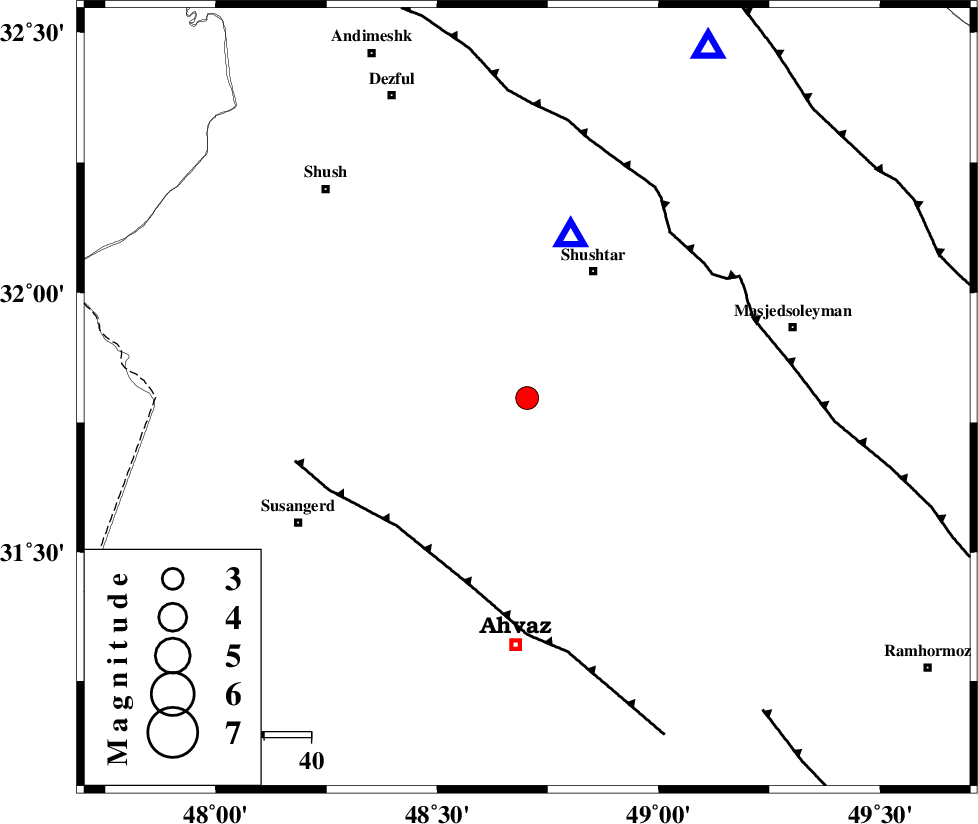

| Location | Lat:31.797 Lon: 48.703 |
| Region | Khoozestan Province, 31 km South-West of Shushtar |
Nearest Cities |
|
| 18 km West of Arabhasan, Khoozestan Province | |
| 21 km South West of Mehdiabad, Khoozestan Province | |
| 26 km South of Sardarabad, Khoozestan Province | |
| 29 km North West of Mollasani, Khoozestan Province | |
| 30 km East of Abdolkhan-eali, Khoozestan Province | |
| Depth | 18 km |
| Agency | |
Faults within 150 km: |
|
| AHVAZ_F (Length: 99 km) , Distance to epicenter: 39 km | |
| DEZFUL_EMBAYMENT (Length: 228 km) , Distance to epicenter: 47 km | |
| AGHAJARI_F (Length: 88 km) , Distance to epicenter: 84 km | |
| Number of Phases | 20 |
| RMS | 0.5 |
| Number of Stations | 18 |
| Error in Latitude | >4.1 km |
| Error in Longitude | 5.9 km |
| Error in Depth | 9.2 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 124501 | IIEES | KHMZ | E | 83.4 | 0.49 | 2017-12-14 22:03:35 | 2017-12-16 07:32:00 | n |
| 124502 | IIEES | ILBA | N | 41 | 0.27 | 2017-12-14 22:04:00 | 2017-12-16 07:32:00 | n |
| 124503 | IIEES | GHVR | E | 35.5 | 0.4 | 2017-12-14 22:04:16 | 2017-12-16 07:32:00 | n |
| 124504 | IIEES | GHVR | N | 36.5 | 0.6 | 2017-12-14 22:04:24 | 2017-12-16 07:32:00 | n |
| 124505 | IIEES | SNGE | N | 32.3 | 0.49 | 2017-12-14 22:04:01 | 2017-12-16 07:32:00 | n |
| 124506 | IIEES | SNGE | E | 22.5 | 0.6 | 2017-12-14 22:04:12 | 2017-12-16 07:32:00 | n |
| 124507 | IIEES | NASN | E | 24.4 | 0.74 | 2017-12-14 22:04:23 | 2017-12-16 07:32:00 | n |
| 124508 | IIEES | YZKH | E | 9.6 | 0.48 | 2017-12-14 22:05:12 | 2017-12-16 07:32:00 | n |
| 124509 | IIEES | YZKH | N | 11.1 | 0.8 | 2017-12-14 22:05:13 | 2017-12-16 07:32:00 | n |
| 124510 | IIEES | GHIR | E | 23.7 | 0.32 | 2017-12-14 22:05:32 | 2017-12-16 07:32:00 | n |
| 124511 | IIEES | GHIR | N | 20.3 | 0.8 | 2017-12-14 22:05:36 | 2017-12-16 07:32:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | KHMZ | Z | Pn | E | 2017-12-14 22:03:00 | 0.42 | y | 246 | 28 | |||
| IIEES | KHMZ | N | Sg | E | 2017-12-14 22:03:31 | -0.35 | y | 246 | 28 | |||
| IIEES | ILBA | Z | Pn | E | 2017-12-14 22:03:07 | -0.57 | y | 309 | 312 | |||
| IIEES | ASAO | Z | Pn | E | 2017-12-14 22:03:10 | 0.2 | y | 329 | 22 | |||
| IIEES | ASAO | N | S | E | 2017-12-14 22:03:45 | -0.54 | y | 329 | 22 | |||
| IIEES | GHVR | Z | Pn | E | 2017-12-14 22:03:17 | 0.94 | y | 381 | 38 | |||
| IIEES | SNGE | Z | Pn | E | 2017-12-14 22:03:17 | 0.14 | y | 387 | 341 | |||
| IIEES | NASN | Z | Pn | E | 2017-12-14 22:03:19 | -0.17 | y | 402 | 73 | |||
| IIEES | THKV | Z | Pn | E | 2017-12-14 22:03:31 | 0.42 | y | 499 | 23 | |||
| IIEES | CHTH | Z | Pn | E | 2017-12-14 22:03:32 | -0.32 | y | 508 | 26 | |||
| IIEES | DAMV | Z | Pn | E | 2017-12-14 22:03:35 | 0.9 | y | 522 | 35 | |||
| IIEES | ZNJK | Z | Pn | E | 2017-12-14 22:03:36 | 0.2 | y | 541 | 360 | |||
| IIEES | YZKH | Z | Pn | E | 2017-12-14 22:03:38 | -0.53 | y | 560 | 82 | |||
| IIEES | GHIR | Z | Pn | E | 2017-12-14 22:03:39 | -0.28 | y | 568 | 132 | |||
| IIEES | KRBR | Z | Pn | E | 2017-12-14 22:04:08 | 0.24 | y | 796 | 103 | |||
| IIEES | TABS | Z | Pn | E | 2017-12-14 22:04:10 | 0.03 | y | 815 | 73 | |||
| IIEES | SHRO | Z | Pn | E | 2017-12-14 22:04:10 | -0.93 | y | 821 | 53 | |||
| IIEES | BNDS | Z | Pn | E | 2017-12-14 22:04:17 | -0.37 | y | 872 | 122 | |||
| IIEES | BSRN | Z | Pn | E | 2017-12-14 22:04:32 | 0.35 | y | 986 | 86 | |||
| IIEES | SHRT | Z | Pn | E | 2017-12-14 22:04:46 | -0.25 | y | 1105 | 76 | |||
