Magnitude |
:5 |
| Date & Time (UTC) | 2017-12-21 17:04:45.3 |
| Date & Time (Local) | 1396/9/30 20:34:45.3 |
| Location | Lat:31.388 Lon: 56.325 |
| Region | Kerman Province, 48 km North-West of Ravar |
Nearest Cities |
|
| 4 km of Kuhbanan, Kerman Province | |
| 5 km North of Jor, Kerman Province | |
| 28 km North of Toghroljerd, Kerman Province | |
| 33 km South of Asfih, Yazd Province | |
| 34 km East of Basab, Yazd Province | |
| Depth | 15 km |
| Agency | |

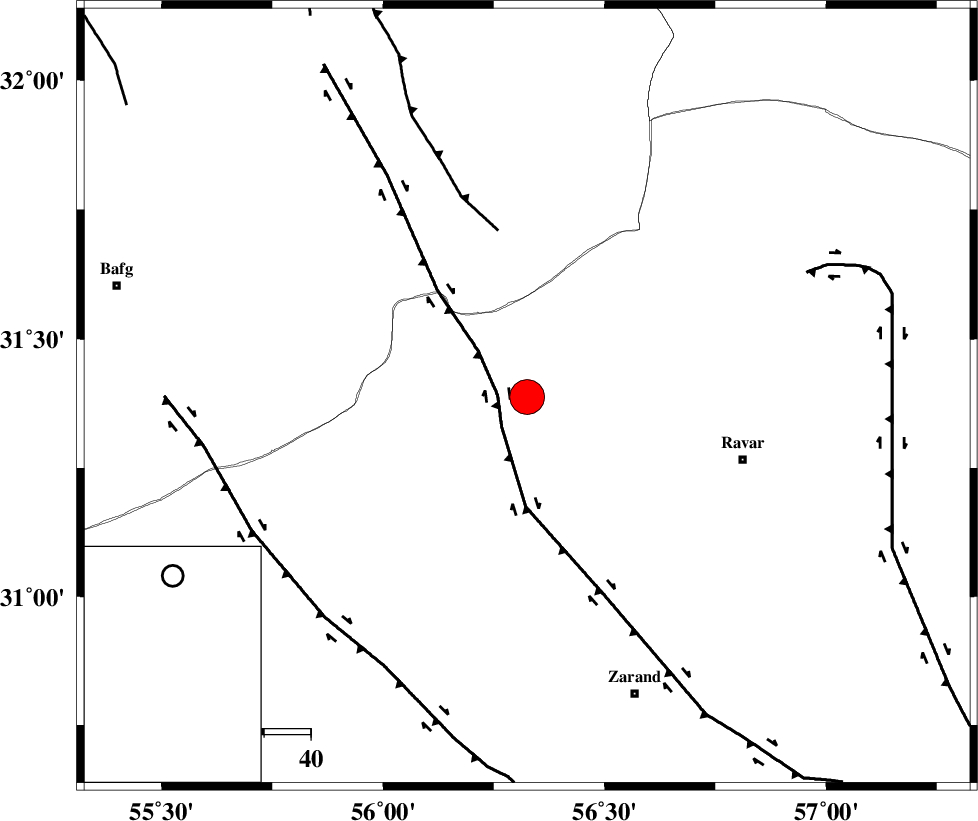

Faults within 150 km: |
|
| KUHBANAN_F (Length: 189 km) , Distance to epicenter: 6 km | |
| JAFARABAD_F (Length: 60 km) , Distance to epicenter: 36 km | |
| DARIVAN_F (Length: 131 km) , Distance to epicenter: 64 km | |
| Number of Phases | 26 |
| RMS | 0.5 |
| Number of Stations | 24 |
| Error in Latitude | >3.9 km |
| Error in Longitude | 4.2 km |
| Error in Depth | 12.6 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 125211 | IIEES | KRBR | N | 29847 | 0.49 | 2017-12-21 17:05:41 | 2017-12-21 05:38:00 | n |
| 125212 | IIEES | KRBR | E | 24725.5 | 0.7 | 2017-12-21 17:05:42 | 2017-12-21 05:38:00 | n |
| 125213 | IIEES | YZKH | N | 16697.3 | 0.58 | 2017-12-21 17:05:45 | 2017-12-21 05:38:00 | n |
| 125214 | IIEES | YZKH | E | 14129.3 | 0.58 | 2017-12-21 17:05:46 | 2017-12-21 05:38:00 | n |
| 125215 | IIEES | TABS | E | 1985.3 | 0.73 | 2017-12-21 17:06:06 | 2017-12-21 05:38:00 | n |
| 125216 | IIEES | TABS | N | 5041.6 | 0.65 | 2017-12-21 17:06:15 | 2017-12-21 05:38:00 | n |
| 125217 | IIEES | BSRN | N | 5241.4 | 0.62 | 2017-12-21 17:06:11 | 2017-12-21 05:38:00 | n |
| 125218 | IIEES | NASN | N | 2203.5 | 0.65 | 2017-12-21 17:06:36 | 2017-12-21 05:38:00 | n |
| 125219 | IIEES | NASN | E | 1773.2 | 0.62 | 2017-12-21 17:06:42 | 2017-12-21 05:38:00 | n |
| 125220 | IIEES | BNDS | E | 1190.7 | 0.58 | 2017-12-21 17:06:57 | 2017-12-21 05:38:00 | n |
| 125221 | IIEES | BNDS | N | 1135 | 0.51 | 2017-12-21 17:07:04 | 2017-12-21 05:38:00 | n |
| 125222 | IIEES | SHRT | E | 1140.9 | 0.6 | 2017-12-21 17:07:00 | 2017-12-21 05:38:00 | n |
| 125223 | IIEES | SHRT | N | 1579.4 | 0.76 | 2017-12-21 17:07:03 | 2017-12-21 05:38:00 | n |
| 125224 | IIEES | GHIR | N | 1024.1 | 0.77 | 2017-12-21 17:07:17 | 2017-12-21 05:38:00 | n |
| 125225 | IIEES | GHIR | E | 1557 | 0.56 | 2017-12-21 17:07:18 | 2017-12-21 05:38:00 | n |
| 125226 | IIEES | GHVR | N | 769.2 | 0.6 | 2017-12-21 17:07:51 | 2017-12-21 05:38:00 | n |
| 125227 | IIEES | GHVR | E | 1968.5 | 0.84 | 2017-12-21 17:07:53 | 2017-12-21 05:38:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | KRBR | Z | Pg | E | 2017-12-21 17:05:12 | -0.07 | y | 161 | 165 | |||
| IIEES | KRBR | E | Sg | E | 2017-12-21 17:05:31 | 0.04 | y | 161 | 165 | |||
| IIEES | YZKH | Z | Pn | E | 2017-12-21 17:05:16 | -0.88 | y | 198 | 305 | |||
| IIEES | TABS | Z | Pn | E | 2017-12-21 17:05:25 | 0.01 | y | 262 | 16 | |||
| IIEES | BSRN | Z | Pn | E | 2017-12-21 17:05:26 | -0.18 | y | 273 | 76 | |||
| IIEES | NASN | Z | Pn | E | 2017-12-21 17:05:38 | -0.58 | y | 367 | 296 | |||
| IIEES | BNDS | Z | Pn | E | 2017-12-21 17:05:48 | 0.56 | y | 442 | 182 | |||
| IIEES | SHRT | Z | Pn | E | 2017-12-21 17:05:48 | 0.2 | y | 449 | 55 | |||
| IIEES | ZHSF | Z | Pn | E | 2017-12-21 17:05:51 | 0.16 | y | 470 | 114 | |||
| IIEES | GHIR | Z | Pn | E | 2017-12-21 17:05:51 | -0.09 | y | 471 | 224 | |||
| IIEES | SHRO | Z | Pn | E | 2017-12-21 17:05:56 | -0.56 | y | 513 | 357 | |||
| IIEES | GHVR | Z | Pn | E | 2017-12-21 17:06:06 | 0.37 | y | 586 | 307 | |||
| IIEES | DAMV | Z | Pn | E | 2017-12-21 17:06:10 | 0.7 | y | 620 | 320 | |||
| IIEES | KHMZ | Z | Pn | E | 2017-12-21 17:06:14 | 0.75 | y | 652 | 295 | |||
| IIEES | ASAO | Z | Pn | E | 2017-12-21 17:06:19 | 0.93 | y | 685 | 302 | |||
| IIEES | CHTH | Z | Pn | E | 2017-12-21 17:06:19 | 0.07 | y | 695 | 318 | |||
| IIEES | MRVT | Z | Pn | E | 2017-12-21 17:06:19 | 0 | y | 696 | 358 | |||
| IIEES | BJRD | Z | Pn | E | 2017-12-21 17:06:21 | 0.51 | y | 707 | 8 | |||
| IIEES | THKV | Z | Pn | E | 2017-12-21 17:06:21 | 0.24 | y | 712 | 316 | |||
| IIEES | CHBR | Z | Pn | E | 2017-12-21 17:06:26 | -0.92 | y | 760 | 147 | |||
| IIEES | GIDE | Z | Pn | E | 2017-12-21 17:06:39 | 0.82 | y | 852 | 318 | |||
| IIEES | ZNJK | Z | Pn | E | 2017-12-21 17:06:47 | 0.08 | y | 917 | 312 | |||
| IIEES | SNGE | Z | Pn | E | 2017-12-21 17:06:47 | -1.06 | y | 932 | 299 | |||
| IIEES | ILBA | Z | Pn | E | 2017-12-21 17:06:52 | -2.84 | n | 4 | 982 | 287 | ||
| IIEES | GRMI | Z | Pn | E | 2017-12-21 17:07:12 | -0.61 | y | 1126 | 319 | |||
| IIEES | MAKU | Z | Pn | E | 2017-12-21 17:07:44 | -0.08 | y | 1377 | 313 | |||
