Magnitude |
:4 |
| Date & Time (UTC) | 2017-12-23 18:32:39.1 |
| Date & Time (Local) | 1396/10/2 22:02:39.1 |

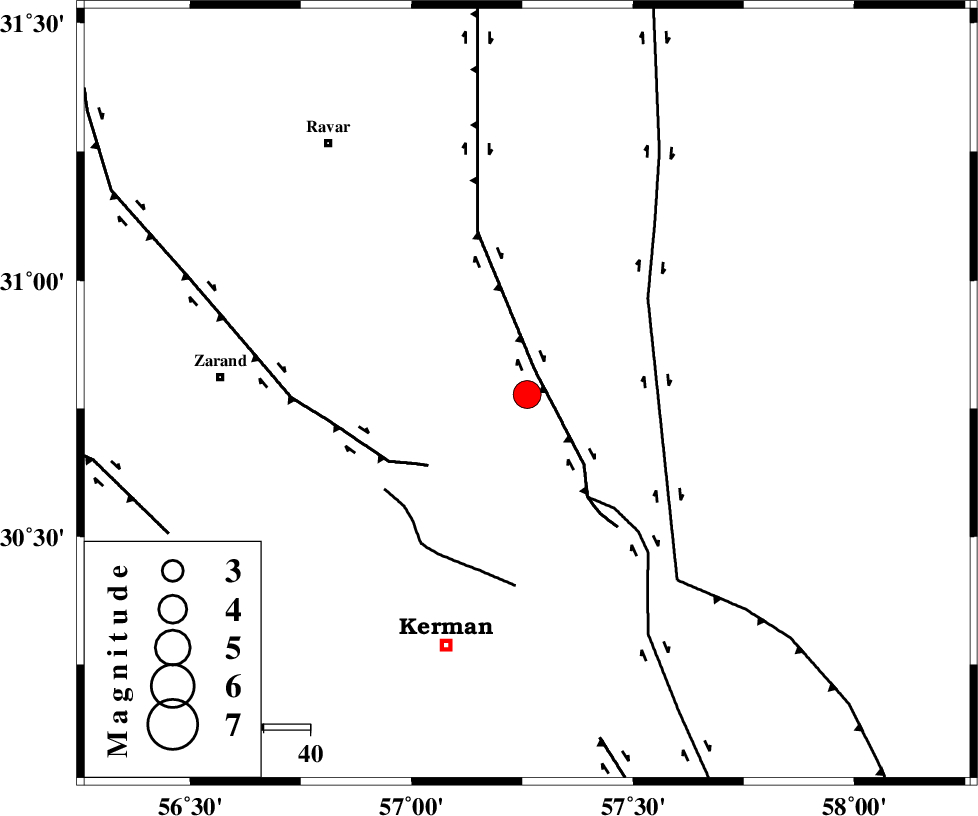

| Location | Lat:30.778 Lon: 57.261 |
| Region | Kerman Province, 57 km North-East of Kerman |
Nearest Cities |
|
| 18 km North East of Harjand, Kerman Province | |
| 27 km North East of Hejdak, Kerman Province | |
| 30 km North of Dehlulu, Kerman Province | |
| 38 km North East of Hutak, Kerman Province | |
| 39 km North East of Chatrud, Kerman Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| LAKARKUH_F (Length: 138 km) , Distance to epicenter: 6 km | |
| GOLBAF_SIRCH_F (Length: 114 km) , Distance to epicenter: 26 km | |
| KUHBANAN_F (Length: 189 km) , Distance to epicenter: 26 km | |
| Number of Phases | 16 |
| RMS | 0.5 |
| Number of Stations | 14 |
| Error in Latitude | >3.3 km |
| Error in Longitude | 3.4 km |
| Error in Depth | 7.9 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 125329 | IIEES | BSRN | E | 1311.2 | 0.48 | 2017-12-23 18:33:44 | 2017-12-24 08:14:00 | n |
| 125330 | IIEES | BSRN | N | 1400.4 | 0.28 | 2017-12-23 18:33:46 | 2017-12-24 08:14:00 | n |
| 125331 | IIEES | YZKH | N | 318 | 0.46 | 2017-12-23 18:34:09 | 2017-12-24 08:14:00 | n |
| 125332 | IIEES | YZKH | E | 423 | 0.46 | 2017-12-23 18:34:13 | 2017-12-24 08:14:00 | n |
| 125333 | IIEES | TABS | E | 344.9 | 0.89 | 2017-12-23 18:34:23 | 2017-12-24 08:14:00 | n |
| 125334 | IIEES | TABS | N | 264.7 | 0.62 | 2017-12-23 18:34:25 | 2017-12-24 08:14:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | KRBR | Z | Pg | E | 2017-12-23 18:32:55 | -0.75 | y | 100 | 209 | |||
| IIEES | BSRN | Z | Pn | E | 2017-12-23 18:33:13 | -0.4 | y | 221 | 53 | |||
| IIEES | BSRN | N | Sg | E | 2017-12-23 18:33:41 | 0.02 | y | 221 | 53 | |||
| IIEES | YZKH | Z | Pn | E | 2017-12-23 18:33:25 | 0.03 | y | 310 | 306 | |||
| IIEES | YZKH | E | Sg | E | 2017-12-23 18:34:06 | 0.52 | y | 310 | 306 | |||
| IIEES | TABS | Z | Pn | E | 2017-12-23 18:33:26 | -0.23 | y | 319 | 358 | |||
| IIEES | ZHSF | Z | Pn | E | 2017-12-23 18:33:32 | 0.44 | y | 362 | 110 | |||
| IIEES | BNDS | Z | Pn | E | 2017-12-23 18:33:36 | 0.89 | y | 389 | 196 | |||
| IIEES | SHRT | Z | Pn | E | 2017-12-23 18:33:40 | 0.46 | y | 427 | 41 | |||
| IIEES | NASN | Z | Pn | E | 2017-12-23 18:33:46 | -0.06 | y | 478 | 299 | |||
| IIEES | SHRO | Z | Pn | E | 2017-12-23 18:33:59 | -0.67 | y | 592 | 349 | |||
| IIEES | CHBR | Z | Pn | E | 2017-12-23 18:34:08 | 0.07 | y | 655 | 150 | |||
| IIEES | DAMV | Z | Pn | E | 2017-12-23 18:34:18 | 0.65 | y | 730 | 319 | |||
| IIEES | KHMZ | Z | Pn | E | 2017-12-23 18:34:20 | -1.01 | y | 762 | 297 | |||
| IIEES | BJRD | Z | Pn | E | 2017-12-23 18:34:21 | -0.34 | y | 768 | 1 | |||
| IIEES | MRVT | Z | Pn | E | 2017-12-23 18:34:22 | 0.12 | y | 771 | 352 | |||
