Magnitude |
:3.1 |
| Date & Time (UTC) | 2018-01-01 08:18:55.6 |
| Date & Time (Local) | 1396/10/11 11:48:55.6 |

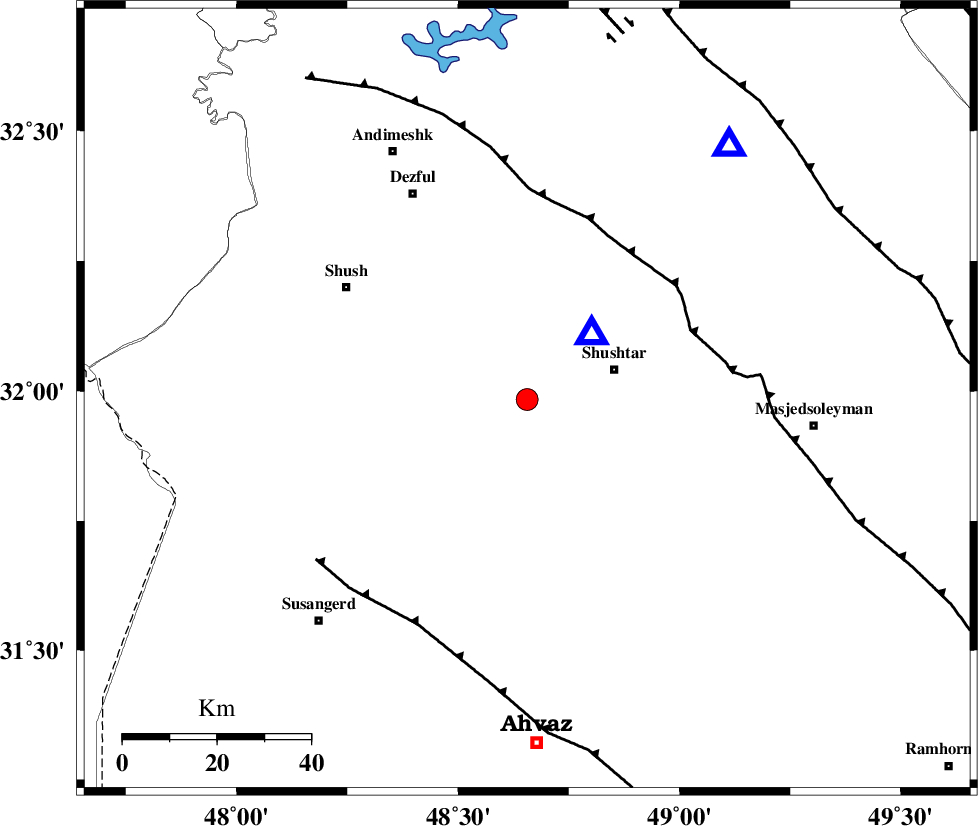

| Location | Lat:31.984 Lon: 48.656 |
| Region | Khoozestan Province, 20 km -West of Shushtar |
Nearest Cities |
|
| 13 km West of Sardarabad, Khoozestan Province | |
| 18 km North West of Mehdiabad, Khoozestan Province | |
| 20 km West of Shushtar, Khoozestan Province | |
| 28 km North West of Arabhasan, Khoozestan Province | |
| 30 km South West of Samaleh, Khoozestan Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| DEZFUL_EMBAYMENT (Length: 228 km) , Distance to epicenter: 38 km | |
| AHVAZ_F (Length: 99 km) , Distance to epicenter: 54 km | |
| MFF2 (Length: 205 km) , Distance to epicenter: 77 km | |
| Number of Phases | 7 |
| RMS | 0.1 |
| Number of Stations | 7 |
| Error in Latitude | >4.7 km |
| Error in Longitude | 1.4 km |
| Error in Depth | 0 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 125809 | IIEES | KHMZ | E | 70.2 | 0.4 | 2018-01-01 08:20:09 | 2018-01-01 09:00:00 | n |
| 125810 | IIEES | ILBA | N | 57.2 | 0.54 | 2018-01-01 08:20:37 | 2018-01-01 09:00:00 | n |
| 125811 | IIEES | ASAO | N | 48.8 | 0.62 | 2018-01-01 08:20:34 | 2018-01-01 09:00:00 | n |
| 125812 | IIEES | ASAO | E | 44.4 | 0.55 | 2018-01-01 08:20:44 | 2018-01-01 09:00:00 | n |
| 125813 | IIEES | SNGE | N | 43.8 | 0.29 | 2018-01-01 08:20:34 | 2018-01-01 09:00:00 | n |
| 125814 | IIEES | SNGE | E | 31.9 | 0.36 | 2018-01-01 08:20:35 | 2018-01-01 09:00:00 | n |
| 125815 | IIEES | GHVR | E | 46.8 | 0.56 | 2018-01-01 08:20:53 | 2018-01-01 09:00:00 | n |
| 125816 | IIEES | NASN | N | 30.5 | 0.92 | 2018-01-01 08:21:07 | 2018-01-01 09:00:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | KHMZ | Z | Pn | E | 2018-01-01 08:19:31 | -0.2 | y | 230 | 32 | |||
| IIEES | ILBA | Z | Pn | E | 2018-01-01 08:19:39 | -0.01 | y | 293 | 309 | |||
| IIEES | ASAO | Z | Pn | E | 2018-01-01 08:19:42 | 0.1 | y | 312 | 24 | |||
| IIEES | SNGE | Z | Pn | E | 2018-01-01 08:19:48 | 0.02 | y | 366 | 341 | |||
| IIEES | GHVR | Z | Pn | E | 2018-01-01 08:19:49 | 0.12 | y | 367 | 40 | |||
| IIEES | NASN | Z | Pn | E | 2018-01-01 08:19:51 | -1.87 | n | 4 | 401 | 76 | ||
| IIEES | YZKH | Z | Pn | E | 2018-01-01 08:20:13 | 0 | y | 561 | 84 | |||
