Magnitude |
:2.8 |
| Date & Time (UTC) | 2018-01-03 21:00:01.4 |
| Date & Time (Local) | 1396/10/14 00:30:01.4 |
| Location | Lat:31.422 Lon: 56.309 |
| Region | Kerman Province, 51 km North-West of Ravar |
Nearest Cities |
|
| 2 km North of Kuhbanan, Kerman Province | |
| 7 km North of Jor, Kerman Province | |
| 29 km South of Asfih, Yazd Province | |
| 31 km East of Basab, Yazd Province | |
| 32 km North West of Toghroljerd, Kerman Province | |
| Depth | 15 km |
| Agency | |

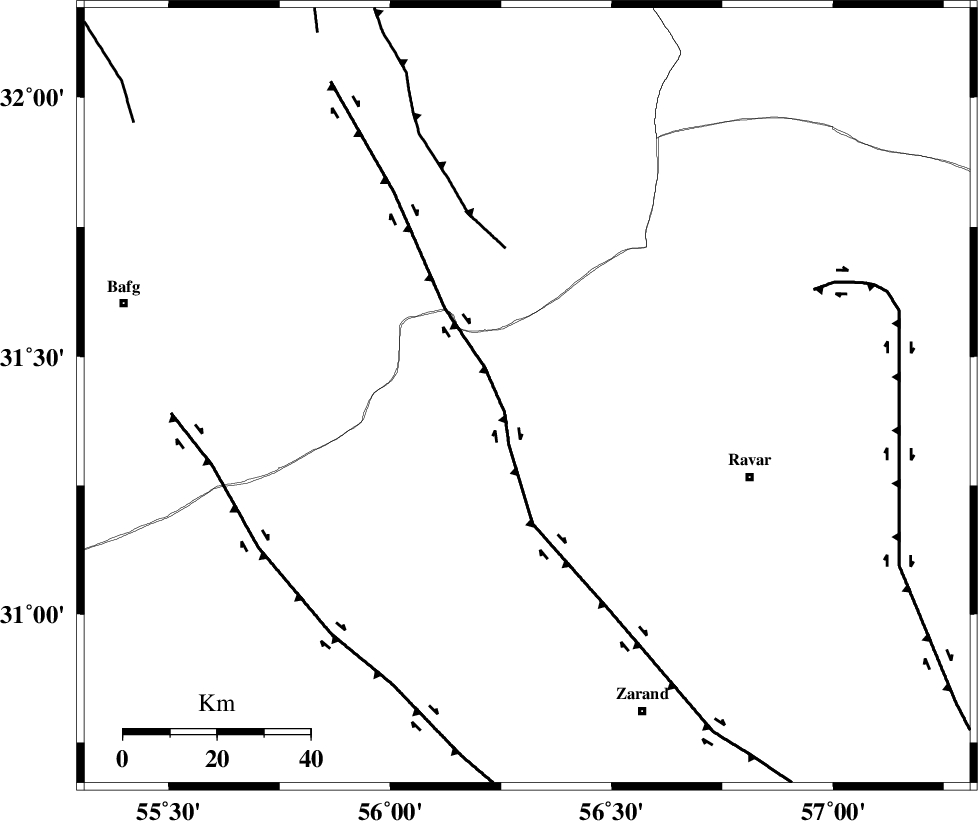

Faults within 150 km: |
|
| KUHBANAN_F (Length: 189 km) , Distance to epicenter: 6 km | |
| JAFARABAD_F (Length: 60 km) , Distance to epicenter: 32 km | |
| LAKARKUH_F (Length: 138 km) , Distance to epicenter: 66 km | |
| Number of Phases | 9 |
| RMS | 0.2 |
| Number of Stations | 7 |
| Error in Latitude | >2.6 km |
| Error in Longitude | 1.8 km |
| Error in Depth | 4.5 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 126482 | IIEES | KRBR | E | 132.8 | 0.12 | 2018-01-03 21:00:56 | 2018-01-08 11:08:00 | n |
| 126483 | IIEES | KRBR | N | 73.5 | 0.3 | 2018-01-03 21:00:59 | 2018-01-08 11:08:00 | n |
| 126484 | IIEES | YZKH | N | 144.7 | 0.35 | 2018-01-03 21:01:02 | 2018-01-08 11:08:00 | n |
| 126485 | IIEES | YZKH | E | 119.9 | 0.3 | 2018-01-03 21:01:06 | 2018-01-08 11:08:00 | n |
| 126486 | IIEES | TABS | N | 33.4 | 0.53 | 2018-01-03 21:01:20 | 2018-01-08 11:08:00 | n |
| 126487 | IIEES | BSRN | N | 34.2 | 0.56 | 2018-01-03 21:01:24 | 2018-01-08 11:08:00 | n |
| 126488 | IIEES | BSRN | E | 31.4 | 0.99 | 2018-01-03 21:01:28 | 2018-01-08 11:08:00 | n |
| 126489 | IIEES | NASN | E | 15 | 0.41 | 2018-01-03 21:01:46 | 2018-01-08 11:08:00 | n |
| 126490 | IIEES | NASN | N | 14.7 | 0.48 | 2018-01-03 21:01:51 | 2018-01-08 11:08:00 | n |
| 126491 | IIEES | SHRT | N | 4.4 | 0.52 | 2018-01-03 21:02:20 | 2018-01-08 11:08:00 | n |
| 126492 | IIEES | SHRO | E | 8.6 | 0.5 | 2018-01-03 21:02:32 | 2018-01-08 11:08:00 | n |
| 126493 | IIEES | SHRO | N | 9 | 0.64 | 2018-01-03 21:02:34 | 2018-01-08 11:08:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | KRBR | Z | Pg | E | 2018-01-03 21:00:29 | 0.09 | y | 165 | 165 | |||
| IIEES | YZKH | Z | Pn | E | 2018-01-03 21:00:33 | -0.42 | y | 195 | 304 | |||
| IIEES | YZKH | N | Sg | E | 2018-01-03 21:00:57 | 0.11 | y | 195 | 304 | |||
| IIEES | TABS | Z | Pn | E | 2018-01-03 21:00:41 | 0.27 | y | 258 | 17 | |||
| IIEES | BSRN | Z | Pn | E | 2018-01-03 21:00:43 | 0.21 | y | 274 | 77 | |||
| IIEES | BSRN | N | Sg | E | 2018-01-03 21:01:18 | -0.21 | y | 274 | 77 | |||
| IIEES | NASN | Z | Pn | E | 2018-01-03 21:00:54 | -0.08 | y | 364 | 296 | |||
| IIEES | SHRT | Z | Pn | E | 2018-01-03 21:01:04 | -0.11 | y | 448 | 56 | |||
| IIEES | SHRO | Z | Pn | E | 2018-01-03 21:01:12 | 0.14 | y | 510 | 357 | |||
