Magnitude |
:3.2 |
| Date & Time (UTC) | 2018-01-13 11:22:36.0 |
| Date & Time (Local) | 1396/10/23 14:52:36.0 |

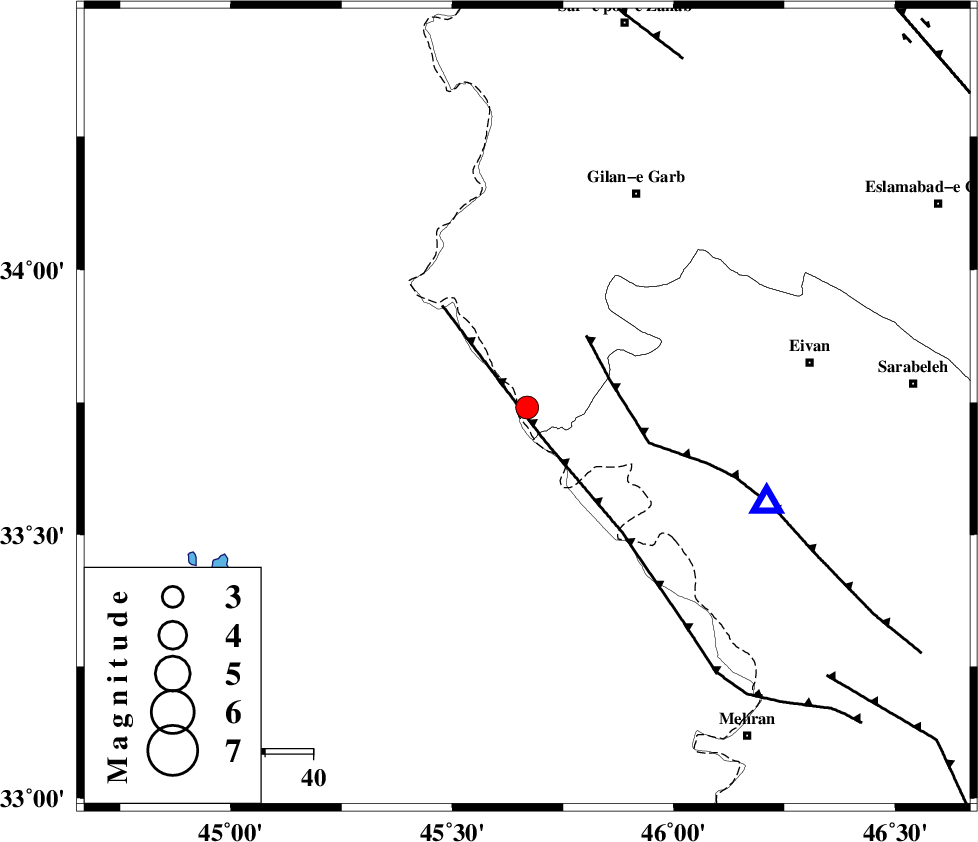

| Location | Lat:33.74 Lon: 45.669 |
| Region | Kermanshah Province, 50 km South-West of Gilan-E-Gharb |
Nearest Cities |
|
| 16 km South of Sumar, Kermanshah Province | |
| 42 km South West of Nian, Kermanshah Province | |
| 48 km South West of Teran, Ilam Province | |
| 50 km South West of Gilan-E-Gharb, Kermanshah Province | |
| 52 km South West of Zarneh, Ilam Province | |
| Depth | 16 km |
| Agency | |
Faults within 150 km: |
|
| ZFF4 (Length: 128 km) , Distance to epicenter: 8 km | |
| MFF7 (Length: 99 km) , Distance to epicenter: 18 km | |
| MFF8 (Length: 48 km) , Distance to epicenter: 80 km | |
| Number of Phases | 8 |
| RMS | 0.2 |
| Number of Stations | 6 |
| Error in Latitude | >2.4 km |
| Error in Longitude | 7.5 km |
| Error in Depth | 6.3 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 126782 | IIEES | SNGE | N | 265.1 | 0.69 | 2018-01-13 11:23:43 | 2018-01-14 07:36:00 | n |
| 126783 | IIEES | SNGE | E | 174.8 | 0.42 | 2018-01-13 11:23:44 | 2018-01-14 07:36:00 | n |
| 126784 | IIEES | KHMZ | E | 22 | 0.4 | 2018-01-13 11:24:18 | 2018-01-14 07:36:00 | n |
| 126785 | IIEES | KHMZ | N | 24 | 0.46 | 2018-01-13 11:24:19 | 2018-01-14 07:36:00 | n |
| 126786 | IIEES | ASAO | N | 22.4 | 0.57 | 2018-01-13 11:24:22 | 2018-01-14 07:36:00 | n |
| 126787 | IIEES | GHVR | N | 18.3 | 0.45 | 2018-01-13 11:24:46 | 2018-01-14 07:36:00 | n |
| 126788 | IIEES | GHVR | E | 18.4 | 0.36 | 2018-01-13 11:24:47 | 2018-01-14 07:36:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | ILBA | Z | Pg | E | 2018-01-13 11:22:45 | 0.01 | y | 51.5 | 104 | |||
| IIEES | ILBA | N | Sg | E | 2018-01-13 11:22:52 | 0.02 | y | 51.5 | 104 | |||
| IIEES | SNGE | Z | Pn | E | 2018-01-13 11:23:10 | 0.15 | y | 215 | 45 | |||
| IIEES | SNGE | N | Sg | E | 2018-01-13 11:23:37 | -0.03 | y | 215 | 45 | |||
| IIEES | KHMZ | Z | Pn | E | 2018-01-13 11:23:32 | -0.37 | y | 398 | 89 | |||
| IIEES | ASAO | Z | Pn | E | 2018-01-13 11:23:34 | 0.05 | y | 412 | 76 | |||
| IIEES | ZNJK | Z | Pn | E | 2018-01-13 11:23:36 | -0.13 | y | 426 | 39 | |||
| IIEES | GHVR | Z | Pn | E | 2018-01-13 11:23:48 | 0.33 | y | 521 | 79 | |||
