Magnitude |
:5.1 |
| Date & Time (UTC) | 2018-01-11 07:14:15.5 |
| Date & Time (Local) | 1396/10/21 10:44:15.5 |

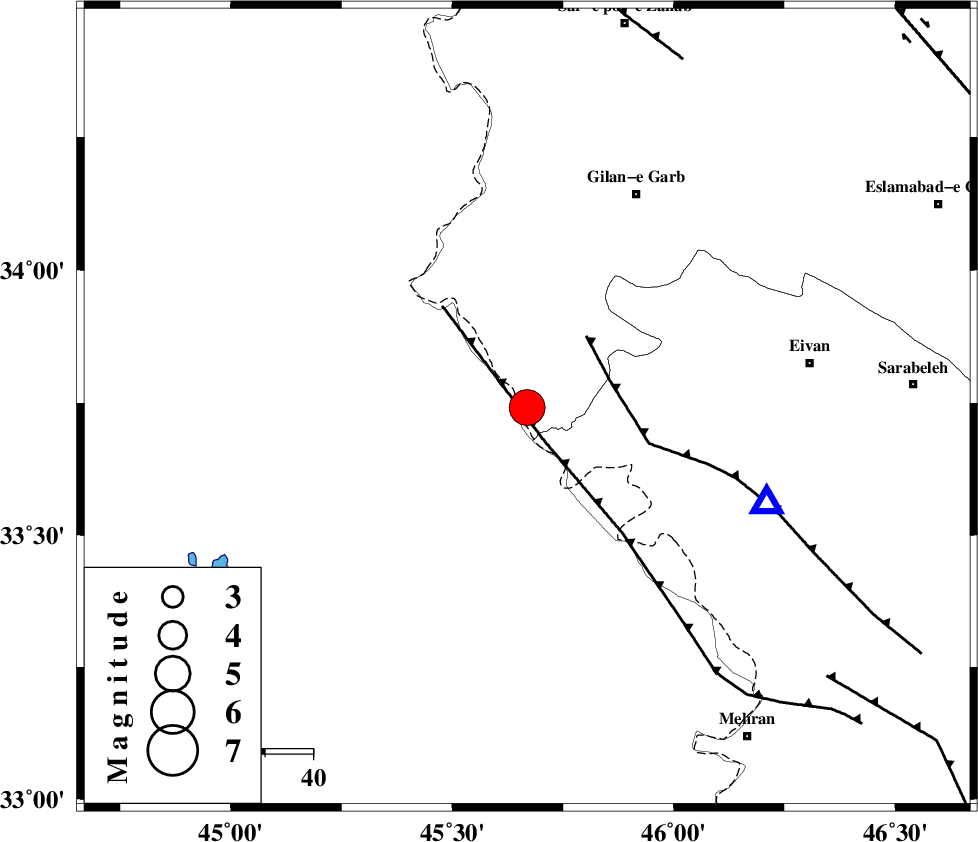

| Location | Lat:33.741 Lon: 45.669 |
| Region | Kermanshah Province, 50 km South-West of Gilan-E-Gharb |
Nearest Cities |
|
| 16 km South of Sumar, Kermanshah Province | |
| 42 km South West of Nian, Kermanshah Province | |
| 48 km South West of Teran, Ilam Province | |
| 50 km South West of Gilan-E-Gharb, Kermanshah Province | |
| 52 km South West of Zarneh, Ilam Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| ZFF4 (Length: 128 km) , Distance to epicenter: 8 km | |
| MFF7 (Length: 99 km) , Distance to epicenter: 18 km | |
| MFF8 (Length: 48 km) , Distance to epicenter: 80 km | |
| Number of Phases | 14 |
| RMS | 0.4 |
| Number of Stations | 12 |
| Error in Latitude | >4 km |
| Error in Longitude | 8.3 km |
| Error in Depth | 7.8 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 126854 | IIEES | ILBA | N | 160000 | 0.34 | 2018-01-11 07:14:33 | 2018-01-14 07:36:00 | n |
| 126855 | IIEES | SNGE | N | 12503.5 | 0.4 | 2018-01-11 07:15:20 | 2018-01-14 07:36:00 | n |
| 126856 | IIEES | SNGE | E | 12658.1 | 0.74 | 2018-01-11 07:15:26 | 2018-01-14 07:36:00 | n |
| 126857 | IIEES | ASAO | N | 1830.9 | 0.65 | 2018-01-11 07:16:34 | 2018-01-14 07:36:00 | n |
| 126858 | IIEES | GHVR | N | 1316.1 | 0.29 | 2018-01-11 07:16:34 | 2018-01-14 07:36:00 | n |
| 126859 | IIEES | GHVR | E | 1634.1 | 0.58 | 2018-01-11 07:16:59 | 2018-01-14 07:36:00 | n |
| 126860 | IIEES | GIDE | E | 800.4 | 0.6 | 2018-01-11 07:17:00 | 2018-01-14 07:36:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | ILBA | Z | Pg | E | 2018-01-11 07:14:24 | 0.1 | y | 51.6 | 104 | |||
| IIEES | ILBA | N | Sg | E | 2018-01-11 07:14:31 | 0.07 | y | 51.6 | 104 | |||
| IIEES | SNGE | Z | Pn | E | 2018-01-11 07:14:50 | 0.04 | y | 215 | 45 | |||
| IIEES | SNGE | N | Sg | E | 2018-01-11 07:15:16 | 0.14 | y | 215 | 45 | |||
| IIEES | ASAO | Z | Pn | E | 2018-01-11 07:15:14 | 0.43 | y | 412 | 76 | |||
| IIEES | ZNJK | Z | Pn | E | 2018-01-11 07:15:16 | 0.08 | y | 425 | 39 | |||
| IIEES | GHVR | Z | Pn | E | 2018-01-11 07:15:28 | 0.24 | y | 521 | 79 | |||
| IIEES | GIDE | Z | Pn | E | 2018-01-11 07:15:27 | -0.6 | y | 523 | 46 | |||
| IIEES | THKV | Z | Pn | E | 2018-01-11 07:15:29 | -0.51 | y | 534 | 62 | |||
| IIEES | CHTH | Z | Pn | E | 2018-01-11 07:15:31 | -0.56 | y | 554 | 63 | |||
| IIEES | GRMI | Z | Pn | E | 2018-01-11 07:15:37 | -0.28 | y | 597 | 19 | |||
| IIEES | MAKU | Z | Pn | E | 2018-01-11 07:15:42 | 0.71 | y | 629 | 352 | |||
| IIEES | NASN | Z | Pn | E | 2018-01-11 07:15:46 | -0.22 | y | 673 | 97 | |||
| IIEES | YZKH | Z | Pn | E | 2018-01-11 07:16:08 | 0.07 | y | 846 | 98 | |||
