Magnitude |
:3.4 |
| Date & Time (UTC) | 2018-01-15 09:45:40.8 |
| Date & Time (Local) | 1396/10/25 13:15:40.8 |

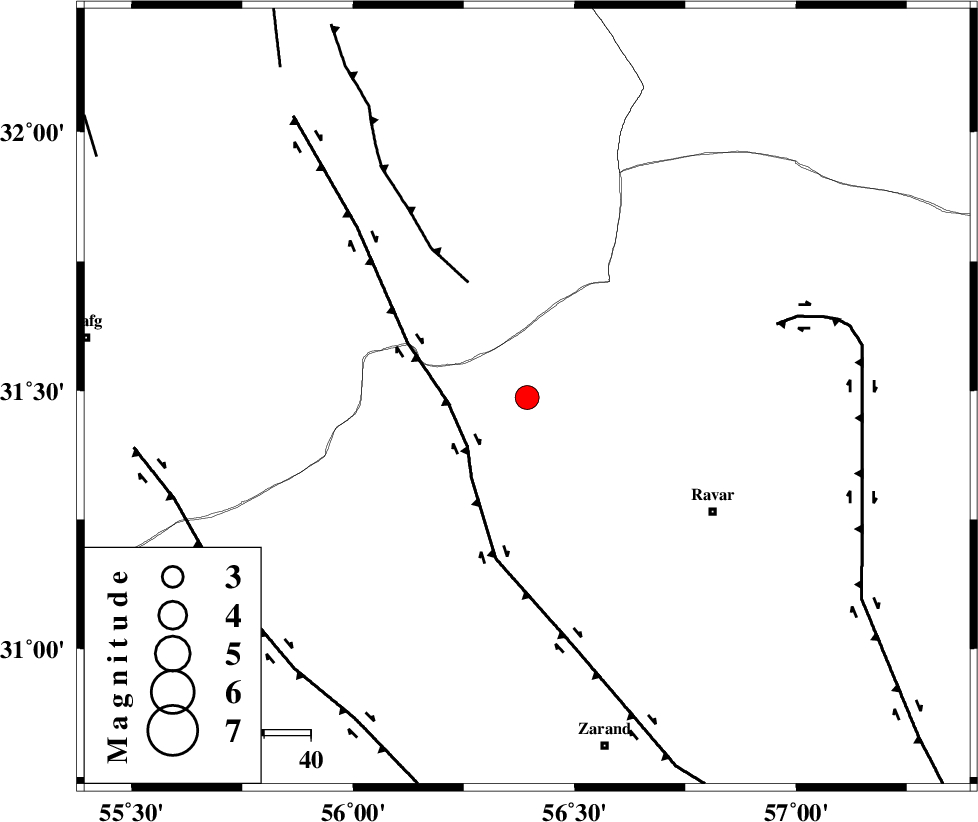

| Location | Lat:31.487 Lon: 56.393 |
| Region | Kerman Province, 47 km North-West of Ravar |
Nearest Cities |
|
| 12 km North East of Kuhbanan, Kerman Province | |
| 17 km North East of Jor, Kerman Province | |
| 26 km South East of Asfih, Yazd Province | |
| 38 km North of Toghroljerd, Kerman Province | |
| 39 km North East of Basab, Yazd Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| KUHBANAN_F (Length: 189 km) , Distance to epicenter: 17 km | |
| JAFARABAD_F (Length: 60 km) , Distance to epicenter: 28 km | |
| LAKARKUH_F (Length: 138 km) , Distance to epicenter: 56 km | |
| Number of Phases | 11 |
| RMS | 0.3 |
| Number of Stations | 8 |
| Error in Latitude | >2.4 km |
| Error in Longitude | 2.6 km |
| Error in Depth | 6.1 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 126987 | IIEES | KRBR | N | 420.8 | 0.43 | 2018-01-15 09:46:34 | 2018-01-15 10:15:00 | n |
| 126988 | IIEES | KRBR | E | 330.4 | 0.46 | 2018-01-15 09:46:37 | 2018-01-15 10:15:00 | n |
| 126989 | IIEES | YZKH | E | 276.5 | 0.28 | 2018-01-15 09:46:42 | 2018-01-15 10:15:00 | n |
| 126990 | IIEES | BSRN | E | 185.5 | 0.26 | 2018-01-15 09:47:04 | 2018-01-15 10:15:00 | n |
| 126991 | IIEES | BNDS | N | 36 | 0.44 | 2018-01-15 09:48:05 | 2018-01-15 10:15:00 | n |
| 126992 | IIEES | BNDS | E | 35 | 0.27 | 2018-01-15 09:48:06 | 2018-01-15 10:15:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | KRBR | Z | Pg | E | 2018-01-15 09:46:09 | 0.43 | y | 170 | 168 | |||
| IIEES | KRBR | N | Sg | E | 2018-01-15 09:46:29 | -0.21 | y | 170 | 168 | |||
| IIEES | YZKH | Z | Pg | E | 2018-01-15 09:46:13 | 0.05 | y | 198 | 301 | |||
| IIEES | YZKH | N | Sg | E | 2018-01-15 09:46:36 | -0.4 | y | 198 | 301 | |||
| IIEES | TABS | Z | Pn | E | 2018-01-15 09:46:19 | 0.3 | y | 249 | 16 | |||
| IIEES | BSRN | Z | Pn | E | 2018-01-15 09:46:20 | -0.66 | y | 264 | 78 | |||
| IIEES | BSRN | N | Sg | E | 2018-01-15 09:46:55 | 0.07 | y | 264 | 78 | |||
| IIEES | NASN | Z | Pn | E | 2018-01-15 09:46:35 | 0.56 | y | 368 | 294 | |||
| IIEES | SHRT | Z | Pn | E | 2018-01-15 09:46:42 | -0.01 | y | 437 | 56 | |||
| IIEES | BNDS | Z | Pn | E | 2018-01-15 09:46:44 | -0.18 | y | 453 | 183 | |||
| IIEES | ZHSF | Z | Pn | E | 2018-01-15 09:46:46 | 0.12 | y | 469 | 115 | |||
