Magnitude |
:3.3 |
| Date & Time (UTC) | 2018-01-23 02:03:25.2 |
| Date & Time (Local) | 1396/11/3 05:33:25.2 |

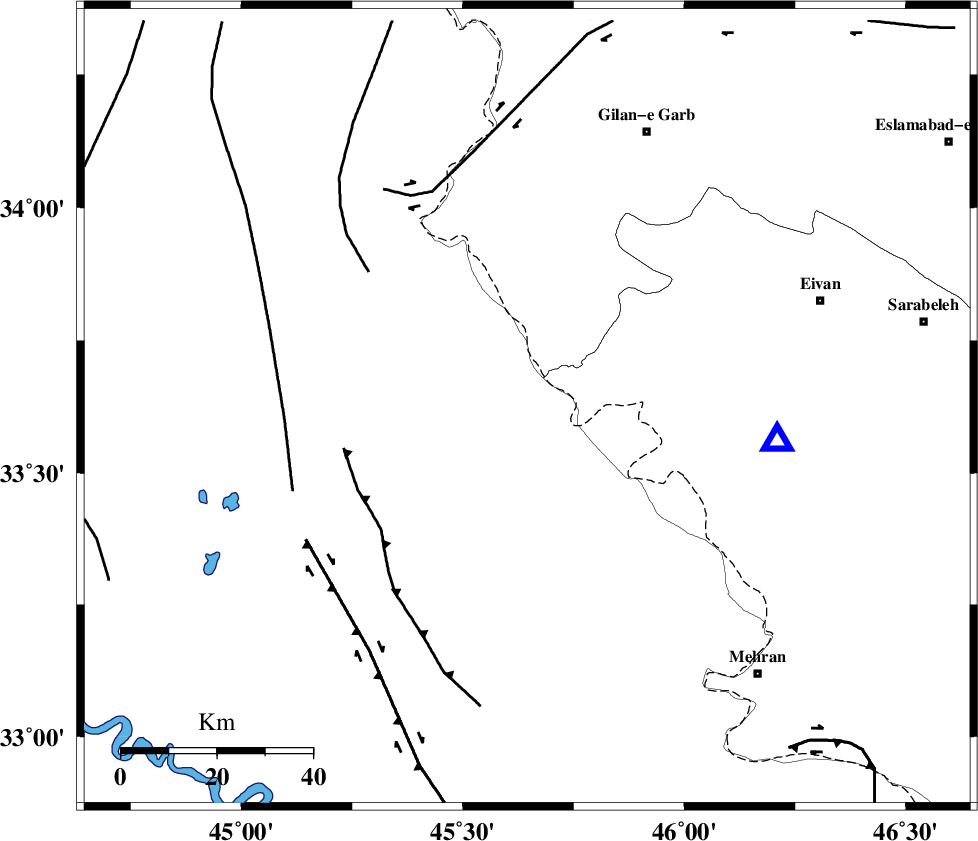

| Location | Lat:33.624 Lon: 45.645 |
| Region | Iraq, 63 km South-West of Gilan-E-Gharb |
Nearest Cities |
|
| 28 km South of Sumar, Kermanshah Province | |
| 53 km North West of Salehabad, Ilam Province | |
| 54 km South West of Nian, Kermanshah Province | |
| 57 km South West of Teran, Ilam Province | |
| 58 km West of Chavar, Ilam Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| ZFF4 (Length: 128 km) , Distance to epicenter: 8 km | |
| MFF7 (Length: 99 km) , Distance to epicenter: 27 km | |
| MFF6 (Length: 144 km) , Distance to epicenter: 78 km | |
| Number of Phases | 10 |
| RMS | 0.3 |
| Number of Stations | 8 |
| Error in Latitude | >6.2 km |
| Error in Longitude | 4.5 km |
| Error in Depth | 8.6 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 127377 | IIEES | SNGE | N | 170.5 | 0.52 | 2018-01-23 02:04:35 | 2018-01-23 06:46:00 | n |
| 127378 | IIEES | SRSL | N | 93.7 | 0.59 | 2018-01-23 02:04:53 | 2018-01-23 06:46:00 | n |
| 127379 | IIEES | GHVR | E | 17.8 | 0.34 | 2018-01-23 02:05:37 | 2018-01-23 06:46:00 | n |
| 127380 | IIEES | GHVR | N | 15.9 | 0.26 | 2018-01-23 02:05:38 | 2018-01-23 06:46:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | SNGE | Z | Pn | E | 2018-01-23 02:04:01 | -0.05 | y | 226 | 43 | |||
| IIEES | SNGE | N | Sg | E | 2018-01-23 02:04:29 | -0.04 | y | 226 | 43 | |||
| IIEES | SRSL | Z | Pn | E | 2018-01-23 02:04:09 | 0.27 | y | 288 | 356 | |||
| IIEES | KHMZ | Z | Pn | E | 2018-01-23 02:04:22 | -0.51 | y | 401 | 87 | |||
| IIEES | ASAO | Z | Pn | E | 2018-01-23 02:04:25 | 0.62 | y | 417 | 75 | |||
| IIEES | ASAO | N | S | E | 2018-01-23 02:05:08 | 0.13 | y | 417 | 75 | |||
| IIEES | ZNJK | Z | Pn | E | 2018-01-23 02:04:27 | -0.04 | y | 437 | 38 | |||
| IIEES | GHVR | Z | Pn | E | 2018-01-23 02:04:38 | -0.15 | y | 526 | 78 | |||
| IIEES | GRMI | Z | Pn | E | 2018-01-23 02:04:48 | -0.1 | y | 610 | 19 | |||
| IIEES | MAKU | Z | Pn | E | 2018-01-23 02:04:52 | -0.33 | y | 642 | 353 | |||
