Magnitude |
:3.1 |
| Date & Time (UTC) | 2018-01-26 04:56:33.5 |
| Date & Time (Local) | 1396/11/6 08:26:33.5 |

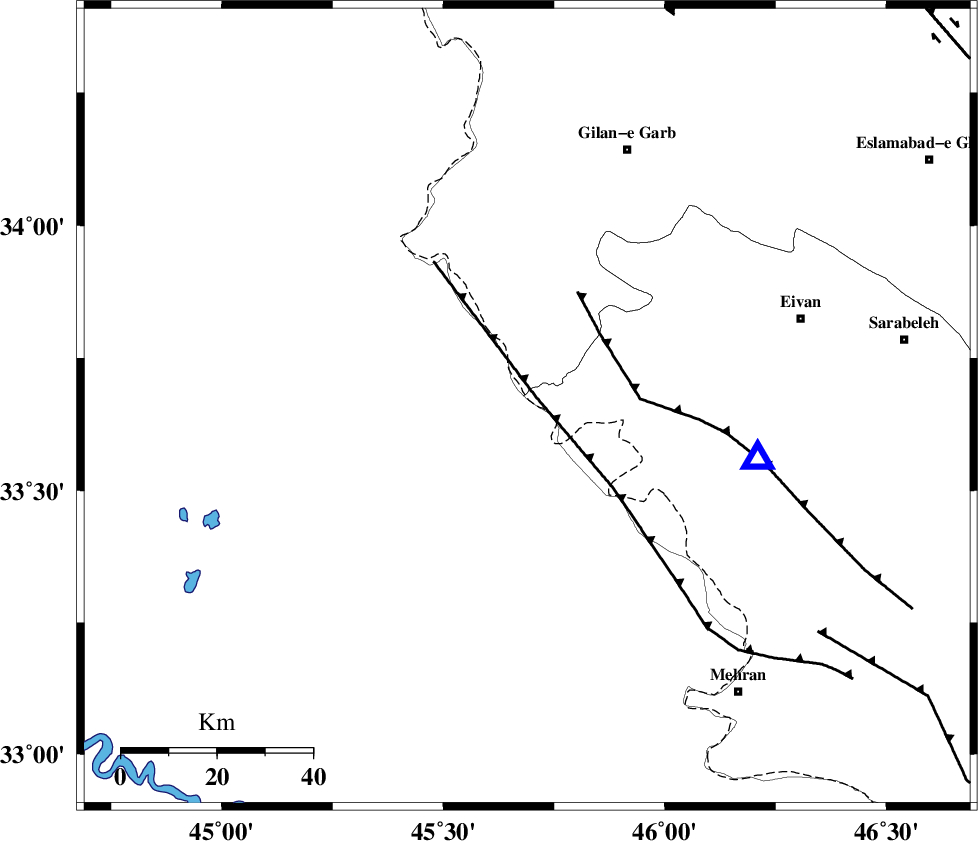

| Location | Lat:33.658 Lon: 45.689 |
| Region | Iraq, 58 km South-West of Gilan-E-Gharb |
Nearest Cities |
|
| 25 km South of Sumar, Kermanshah Province | |
| 48 km South West of Nian, Kermanshah Province | |
| 51 km North West of Salehabad, Ilam Province | |
| 52 km South West of Teran, Ilam Province | |
| 54 km West of Chavar, Ilam Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| ZFF4 (Length: 128 km) , Distance to epicenter: 3 km | |
| MFF7 (Length: 99 km) , Distance to epicenter: 22 km | |
| MFF6 (Length: 144 km) , Distance to epicenter: 77 km | |
| Number of Phases | 8 |
| RMS | 0.2 |
| Number of Stations | 6 |
| Error in Latitude | >3.2 km |
| Error in Longitude | 5.7 km |
| Error in Depth | 7.3 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 127487 | IIEES | ILBA | E | 3082.4 | 0.26 | 2018-01-26 04:56:49 | 2018-01-27 08:41:00 | n |
| 127488 | IIEES | ILBA | N | 4311.3 | 0.26 | 2018-01-26 04:56:50 | 2018-01-27 08:41:00 | n |
| 127489 | IIEES | SNGE | N | 137.6 | 0.66 | 2018-01-26 04:57:40 | 2018-01-27 08:41:00 | n |
| 127490 | IIEES | SNGE | E | 153.6 | 0.6 | 2018-01-26 04:57:41 | 2018-01-27 08:41:00 | n |
| 127491 | IIEES | SRSL | E | 49.5 | 0.62 | 2018-01-26 04:58:01 | 2018-01-27 08:41:00 | n |
| 127492 | IIEES | SRSL | N | 80.5 | 0.82 | 2018-01-26 04:58:10 | 2018-01-27 08:41:00 | n |
| 127493 | IIEES | KHMZ | N | 18.9 | 0.4 | 2018-01-26 04:58:16 | 2018-01-27 08:41:00 | n |
| 127494 | IIEES | KHMZ | E | 17.3 | 0.36 | 2018-01-26 04:58:19 | 2018-01-27 08:41:00 | n |
| 127495 | IIEES | ASAO | N | 13.3 | 0.67 | 2018-01-26 04:58:21 | 2018-01-27 08:41:00 | n |
| 127496 | IIEES | ASAO | E | 12.4 | 0.52 | 2018-01-26 04:58:21 | 2018-01-27 08:41:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | ILBA | Z | Pg | E | 2018-01-26 04:56:42 | -0.04 | y | 48.2 | 94 | |||
| IIEES | ILBA | N | Sg | E | 2018-01-26 04:56:48 | 0.07 | y | 48.2 | 94 | |||
| IIEES | SNGE | Z | Pn | E | 2018-01-26 04:57:08 | -0.01 | y | 220 | 43 | |||
| IIEES | SNGE | N | Sg | E | 2018-01-26 04:57:36 | -0.1 | y | 220 | 43 | |||
| IIEES | SRSL | Z | Pn | E | 2018-01-26 04:57:16 | -0.07 | y | 284 | 355 | |||
| IIEES | KHMZ | Z | Pn | E | 2018-01-26 04:57:30 | -0.41 | y | 396 | 88 | |||
| IIEES | ASAO | Z | Pn | E | 2018-01-26 04:57:32 | 0.27 | y | 412 | 75 | |||
| IIEES | ZNJK | Z | Pn | E | 2018-01-26 04:57:35 | 0.34 | y | 432 | 38 | |||
