Magnitude |
:3.4 |
| Date & Time (UTC) | 2018-01-30 01:26:35.3 |
| Date & Time (Local) | 1396/11/10 04:56:35.3 |

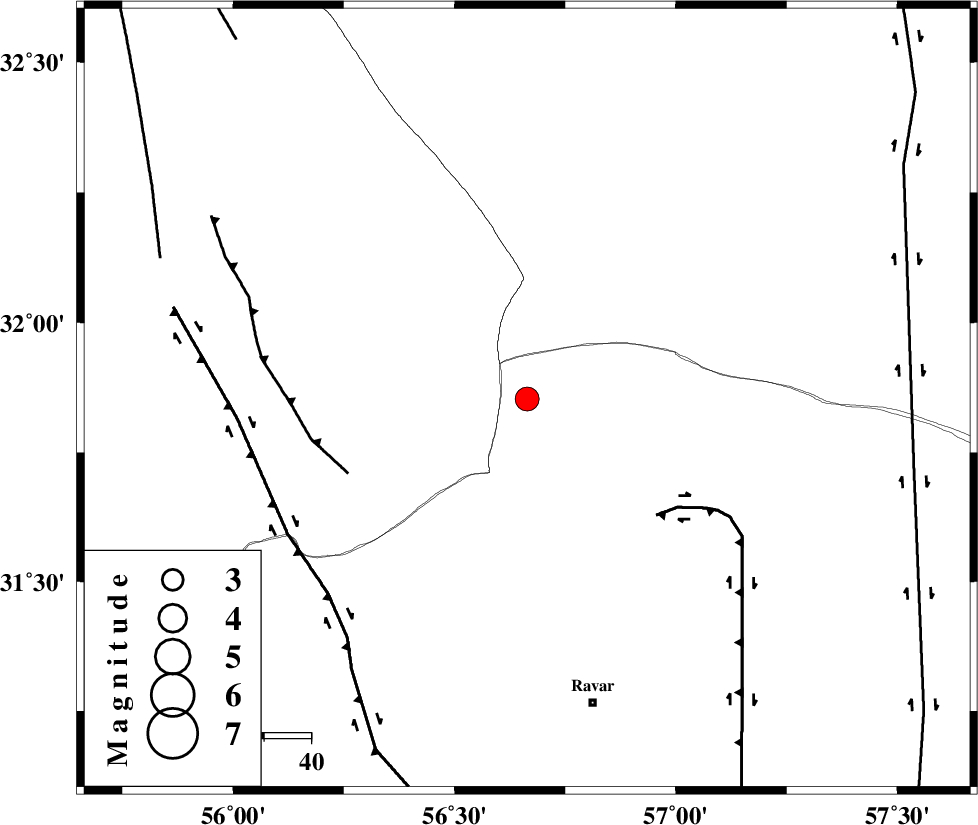

| Location | Lat:31.853 Lon: 56.664 |
| Region | Kerman Province, 67 km North-West of Ravar |
Nearest Cities |
|
| 46 km North East of Asfih, Yazd Province | |
| 57 km North East of Benestan, Yazd Province | |
| 60 km North East of Kuhbanan, Kerman Province | |
| 60 km North West of Dehali, Kerman Province | |
| 60 km East of Behabad, Yazd Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| LAKARKUH_F (Length: 138 km) , Distance to epicenter: 37 km | |
| JAFARABAD_F (Length: 60 km) , Distance to epicenter: 41 km | |
| KUHBANAN_F (Length: 189 km) , Distance to epicenter: 59 km | |
| Number of Phases | 11 |
| RMS | 0.2 |
| Number of Stations | 9 |
| Error in Latitude | >2.5 km |
| Error in Longitude | 2.3 km |
| Error in Depth | 6.9 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 127575 | IIEES | KRBR | N | 802.2 | 0.23 | 2018-01-30 01:27:36 | 2018-01-30 07:59:00 | n |
| 127576 | IIEES | KRBR | E | 514.6 | 0.25 | 2018-01-30 01:27:37 | 2018-01-30 07:59:00 | n |
| 127577 | IIEES | BSRN | N | 159.1 | 0.28 | 2018-01-30 01:27:43 | 2018-01-30 07:59:00 | n |
| 127578 | IIEES | BSRN | E | 189.3 | 0.31 | 2018-01-30 01:27:45 | 2018-01-30 07:59:00 | n |
| 127579 | IIEES | SHRO | E | 23.1 | 0.63 | 2018-01-30 01:28:50 | 2018-01-30 07:59:00 | n |
| 127580 | IIEES | SHRO | N | 20.3 | 0.58 | 2018-01-30 01:28:50 | 2018-01-30 07:59:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | YZKH | E | Sg | E | 2018-01-30 01:27:33 | -0.28 | y | 204 | 287 | |||
| IIEES | TABS | N | Sg | E | 2018-01-30 01:27:33 | 0.13 | y | 204 | 12 | |||
| IIEES | YZKH | Z | Pn | E | 2018-01-30 01:27:08 | 0.05 | y | 204 | 287 | |||
| IIEES | TABS | Z | Pn | E | 2018-01-30 01:27:08 | -0.02 | y | 204 | 12 | |||
| IIEES | KRBR | Z | Pn | E | 2018-01-30 01:27:09 | 0.34 | y | 208 | 177 | |||
| IIEES | BSRN | Z | Pn | E | 2018-01-30 01:27:11 | -0.32 | y | 233 | 86 | |||
| IIEES | NASN | Z | Pn | E | 2018-01-30 01:27:30 | 0.11 | y | 378 | 287 | |||
| IIEES | SHRT | Z | Pn | E | 2018-01-30 01:27:31 | -0.14 | y | 394 | 59 | |||
| IIEES | SHRO | Z | Pn | E | 2018-01-30 01:27:40 | -0.1 | y | 465 | 353 | |||
| IIEES | ZHSF | Z | Pn | E | 2018-01-30 01:27:40 | -0.16 | y | 466 | 121 | |||
| IIEES | MRVT | Z | Pn | E | 2018-01-30 01:28:03 | 0.6 | y | 646 | 355 | |||
