Magnitude |
:3.6 |
| Date & Time (UTC) | 2018-02-06 05:43:05.8 |
| Date & Time (Local) | 1396/11/17 09:13:05.8 |
| Location | Lat:31.412 Lon: 56.35 |
| Region | Kerman Province, 47 km North-West of Ravar |
Nearest Cities |
|
| 5 km of Kuhbanan, Kerman Province | |
| 8 km North of Jor, Kerman Province | |
| 30 km North of Toghroljerd, Kerman Province | |
| 31 km South East of Asfih, Yazd Province | |
| 35 km East of Basab, Yazd Province | |
| Depth | 14 km |
| Agency | |

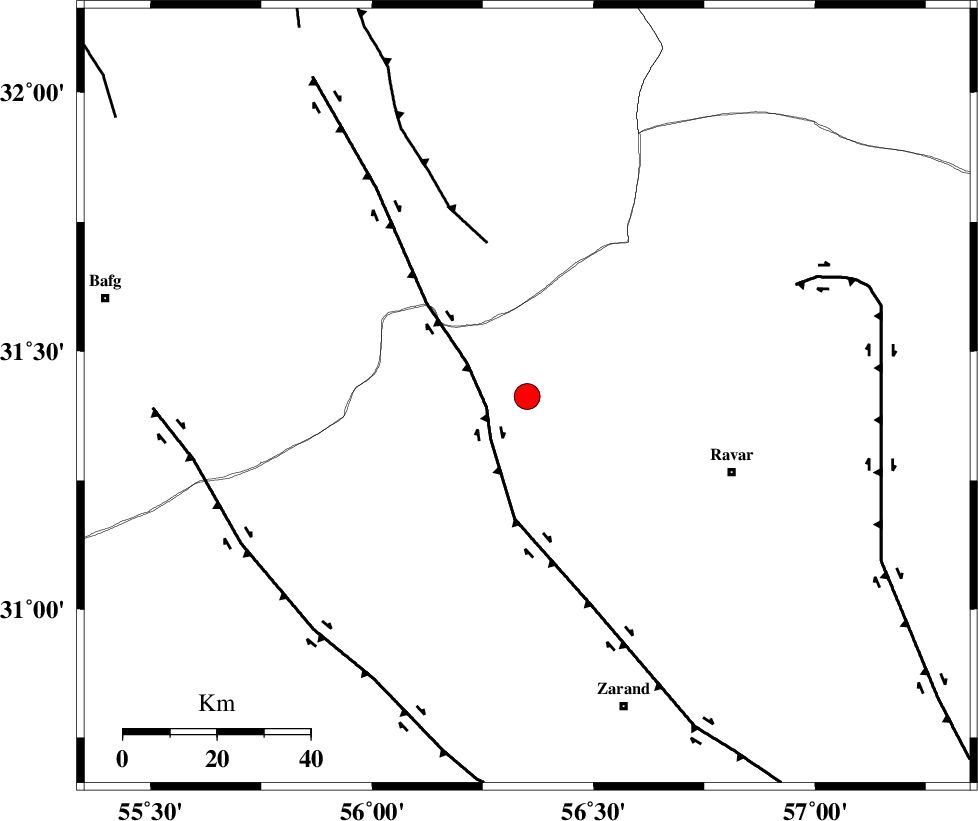

Faults within 150 km: |
|
| KUHBANAN_F (Length: 189 km) , Distance to epicenter: 9 km | |
| JAFARABAD_F (Length: 60 km) , Distance to epicenter: 34 km | |
| LAKARKUH_F (Length: 138 km) , Distance to epicenter: 62 km | |
| Number of Phases | 15 |
| RMS | 0.3 |
| Number of Stations | 13 |
| Error in Latitude | >2.4 km |
| Error in Longitude | 2.7 km |
| Error in Depth | 7.6 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 127917 | IIEES | KRBR | E | 697.2 | 0.24 | 2018-02-06 05:43:58 | 2018-02-06 06:07:00 | n |
| 127918 | IIEES | KRBR | N | 770 | 0.44 | 2018-02-06 05:44:00 | 2018-02-06 06:07:00 | n |
| 127919 | IIEES | YZKH | N | 862.9 | 0.45 | 2018-02-06 05:44:03 | 2018-02-06 06:07:00 | n |
| 127920 | IIEES | YZKH | E | 796 | 0.36 | 2018-02-06 05:44:04 | 2018-02-06 06:07:00 | n |
| 127921 | IIEES | NASN | E | 79.2 | 0.42 | 2018-02-06 05:44:55 | 2018-02-06 06:07:00 | n |
| 127922 | IIEES | NASN | N | 94.1 | 0.36 | 2018-02-06 05:44:55 | 2018-02-06 06:07:00 | n |
| 127923 | IIEES | SHRO | N | 32.2 | 0.47 | 2018-02-06 05:45:39 | 2018-02-06 06:07:00 | n |
| 127924 | IIEES | SHRO | E | 37.3 | 0.55 | 2018-02-06 05:45:51 | 2018-02-06 06:07:00 | n |
| 127925 | IIEES | GHVR | N | 22.6 | 0.53 | 2018-02-06 05:46:01 | 2018-02-06 06:07:00 | n |
| 127926 | IIEES | GHVR | E | 23.2 | 0.6 | 2018-02-06 05:46:05 | 2018-02-06 06:07:00 | n |
| 127927 | IIEES | DAMV | N | 15.4 | 0.53 | 2018-02-06 05:46:12 | 2018-02-06 06:07:00 | n |
| 127928 | IIEES | DAMV | E | 14 | 0.6 | 2018-02-06 05:46:15 | 2018-02-06 06:07:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | KRBR | Z | Pg | E | 2018-02-06 05:43:33 | 0.07 | y | 163 | 166 | |||
| IIEES | KRBR | E | Sg | E | 2018-02-06 05:43:52 | -0.1 | y | 163 | 166 | |||
| IIEES | YZKH | Z | Pn | E | 2018-02-06 05:43:37 | -0.62 | y | 199 | 304 | |||
| IIEES | TABS | Z | Pn | E | 2018-02-06 05:43:45 | -0.12 | y | 258 | 16 | |||
| IIEES | BSRN | Z | Pn | E | 2018-02-06 05:43:47 | 0.12 | y | 270 | 76 | |||
| IIEES | BSRN | N | Sg | E | 2018-02-06 05:44:21 | -0.21 | y | 270 | 76 | |||
| IIEES | NASN | Z | Pn | E | 2018-02-06 05:43:59 | 0.16 | y | 368 | 296 | |||
| IIEES | SHRT | Z | Pn | E | 2018-02-06 05:44:09 | 0.52 | y | 445 | 55 | |||
| IIEES | ZHSF | Z | Pn | E | 2018-02-06 05:44:12 | 0.07 | y | 469 | 114 | |||
| IIEES | GHIR | Z | Pn | E | 2018-02-06 05:44:12 | 0.14 | y | 475 | 224 | |||
| IIEES | SHRO | Z | Pn | E | 2018-02-06 05:44:16 | -0.18 | y | 511 | 357 | |||
| IIEES | GHVR | Z | Pn | E | 2018-02-06 05:44:26 | 0.52 | y | 586 | 307 | |||
| IIEES | DAMV | Z | Pn | E | 2018-02-06 05:44:30 | -0.11 | y | 620 | 320 | |||
| IIEES | ASAO | Z | Pn | E | 2018-02-06 05:44:38 | 0.01 | y | 686 | 302 | |||
| IIEES | MRVT | Z | Pn | E | 2018-02-06 05:44:39 | 0.13 | y | 693 | 358 | |||
