Magnitude |
:2.9 |
| Date & Time (UTC) | 2018-02-11 12:53:53.5 |
| Date & Time (Local) | 1396/11/22 16:23:53.5 |

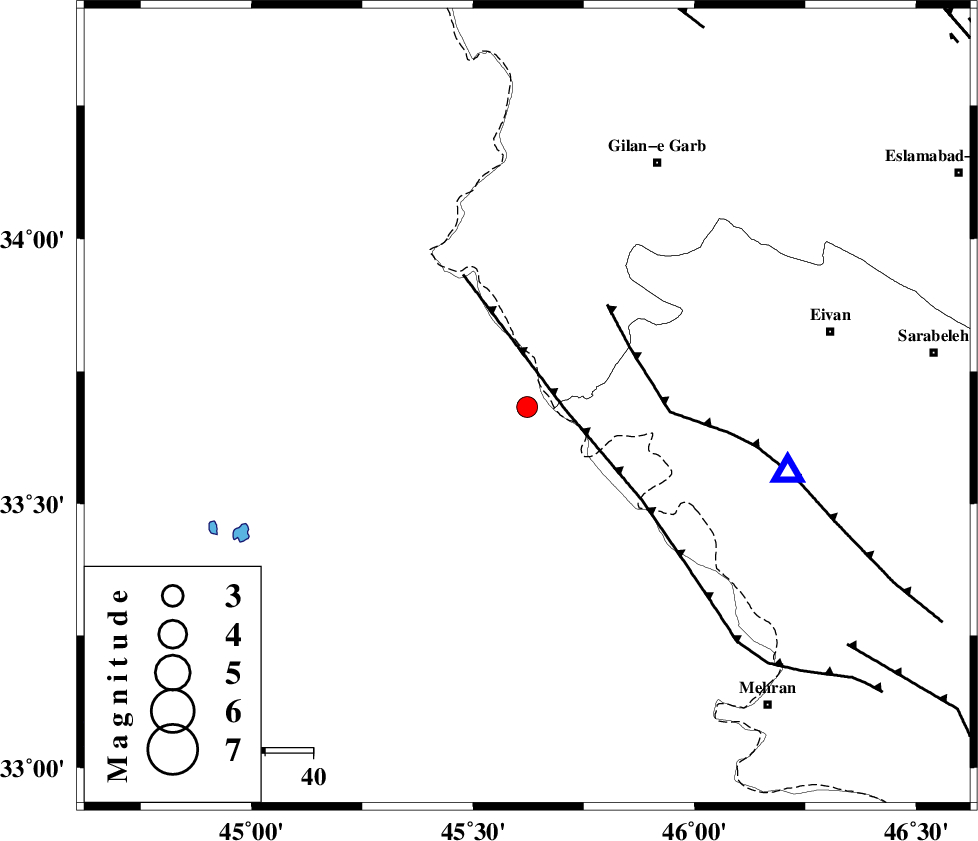

| Location | Lat:33.683 Lon: 45.622 |
| Region | Iraq, 58 km South-West of Gilan-E-Gharb |
Nearest Cities |
|
| 22 km South of Sumar, Kermanshah Province | |
| 50 km South West of Nian, Kermanshah Province | |
| 55 km South West of Teran, Ilam Province | |
| 57 km North West of Salehabad, Ilam Province | |
| 58 km South West of Gilan-E-Gharb, Kermanshah Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| ZFF4 (Length: 128 km) , Distance to epicenter: 8 km | |
| MFF7 (Length: 99 km) , Distance to epicenter: 25 km | |
| MFF6 (Length: 144 km) , Distance to epicenter: 84 km | |
| Number of Phases | 8 |
| RMS | 0.3 |
| Number of Stations | 6 |
| Error in Latitude | >4.2 km |
| Error in Longitude | 6.2 km |
| Error in Depth | 7.5 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 128138 | IIEES | ILBA | E | 723.3 | 0.6 | 2018-02-11 12:54:18 | 2018-02-12 06:55:00 | n |
| 128139 | IIEES | ILBA | N | 731.8 | 0.42 | 2018-02-11 12:54:21 | 2018-02-12 06:55:00 | n |
| 128140 | IIEES | SNGE | E | 57.5 | 0.54 | 2018-02-11 12:55:05 | 2018-02-12 06:55:00 | n |
| 128141 | IIEES | SNGE | N | 72.1 | 0.59 | 2018-02-11 12:55:06 | 2018-02-12 06:55:00 | n |
| 128142 | IIEES | SRSL | N | 63.1 | 0.6 | 2018-02-11 12:55:21 | 2018-02-12 06:55:00 | n |
| 128143 | IIEES | SRSL | E | 77.5 | 0.48 | 2018-02-11 12:55:23 | 2018-02-12 06:55:00 | n |
| 128144 | IIEES | KHMZ | E | 8.3 | 0.53 | 2018-02-11 12:55:47 | 2018-02-12 06:55:00 | n |
| 128145 | IIEES | ASAO | N | 9.8 | 0.64 | 2018-02-11 12:56:08 | 2018-02-12 06:55:00 | n |
| 128146 | IIEES | ASAO | E | 11.7 | 0.82 | 2018-02-11 12:56:10 | 2018-02-12 06:55:00 | n |
| 128147 | IIEES | GHVR | N | 8.9 | 0.67 | 2018-02-11 12:56:31 | 2018-02-12 06:55:00 | n |
| 128148 | IIEES | GHVR | E | 8.2 | 0.67 | 2018-02-11 12:56:39 | 2018-02-12 06:55:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | ILBA | Z | Pg | E | 2018-02-11 12:54:02 | -0.48 | y | 54.6 | 97 | |||
| IIEES | SNGE | Z | Pn | E | 2018-02-11 12:54:29 | 0.4 | y | 223 | 45 | |||
| IIEES | SNGE | N | Sg | E | 2018-02-11 12:54:56 | 0.14 | y | 223 | 45 | |||
| IIEES | SRSL | Z | Pn | E | 2018-02-11 12:54:36 | 0.08 | y | 281 | 357 | |||
| IIEES | SRSL | E | Sg | E | 2018-02-11 12:55:12 | -0.26 | y | 281 | 357 | |||
| IIEES | KHMZ | Z | Pn | E | 2018-02-11 12:54:51 | 0.31 | y | 402 | 88 | |||
| IIEES | ASAO | Z | Pn | E | 2018-02-11 12:54:53 | -0.02 | y | 417 | 75 | |||
| IIEES | GHVR | Z | Pn | E | 2018-02-11 12:55:06 | -0.21 | y | 526 | 79 | |||
