Magnitude |
:3.3 |
| Date & Time (UTC) | 2018-02-10 17:41:23.8 |
| Date & Time (Local) | 1396/11/21 21:11:23.8 |

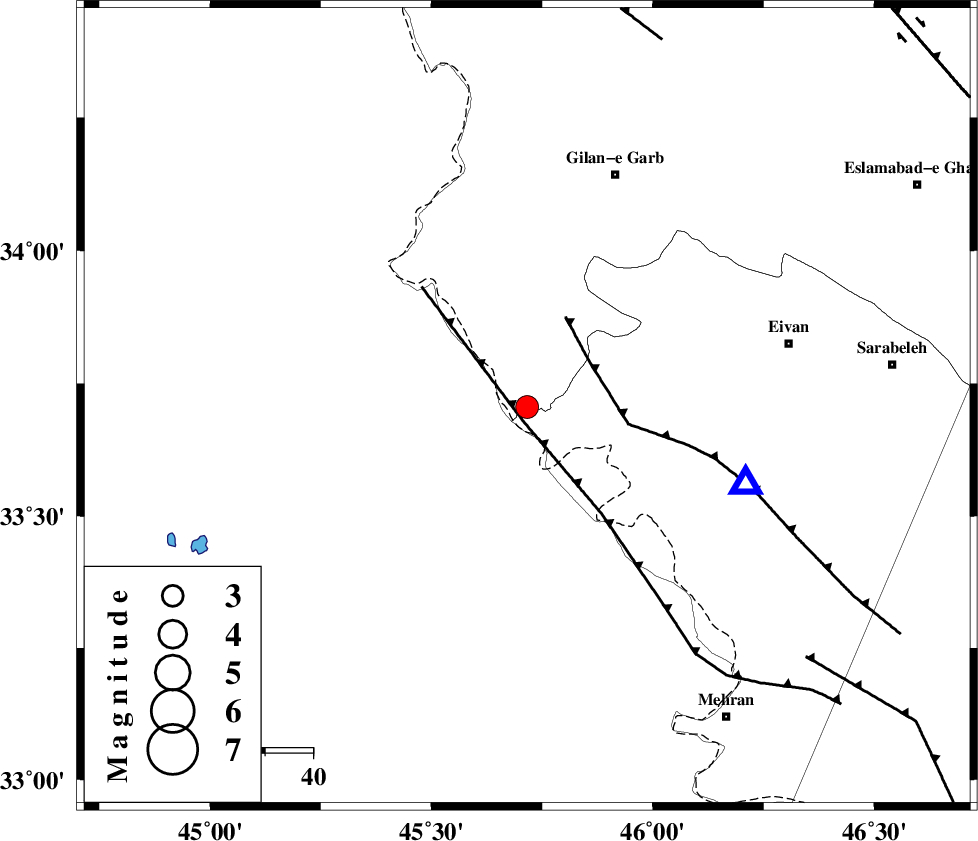

| Location | Lat:33.706 Lon: 45.716 |
| Region | Kermanshah Province, 52 km South-West of Gilan-E-Gharb |
Nearest Cities |
|
| 20 km South of Sumar, Kermanshah Province | |
| 42 km South West of Nian, Kermanshah Province | |
| 47 km South West of Teran, Ilam Province | |
| 50 km South West of Zarneh, Ilam Province | |
| 51 km North West of Salehabad, Ilam Province | |
| Depth | 16 km |
| Agency | |
Faults within 150 km: |
|
| ZFF4 (Length: 128 km) , Distance to epicenter: 3 km | |
| MFF7 (Length: 99 km) , Distance to epicenter: 16 km | |
| MFF6 (Length: 144 km) , Distance to epicenter: 78 km | |
| Number of Phases | 13 |
| RMS | 0.4 |
| Number of Stations | 11 |
| Error in Latitude | >4.5 km |
| Error in Longitude | 8.6 km |
| Error in Depth | 8.8 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 128183 | IIEES | ILBA | E | 2404.3 | 0.65 | 2018-02-10 17:41:46 | 2018-02-12 08:55:00 | n |
| 128184 | IIEES | SNGE | E | 206.3 | 0.64 | 2018-02-10 17:42:31 | 2018-02-12 08:55:00 | n |
| 128185 | IIEES | SNGE | N | 203 | 0.48 | 2018-02-10 17:42:37 | 2018-02-12 08:55:00 | n |
| 128186 | IIEES | SRSL | E | 123.7 | 0.59 | 2018-02-10 17:42:47 | 2018-02-12 08:55:00 | n |
| 128187 | IIEES | SRSL | N | 124.7 | 0.5 | 2018-02-10 17:42:49 | 2018-02-12 08:55:00 | n |
| 128188 | IIEES | GHVR | E | 16.2 | 0.44 | 2018-02-10 17:43:35 | 2018-02-12 08:55:00 | n |
| 128189 | IIEES | GHVR | N | 14.2 | 0.44 | 2018-02-10 17:44:01 | 2018-02-12 08:55:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | ILBA | Z | Pg | E | 2018-02-10 17:41:32 | -0.17 | y | 46.5 | 101 | |||
| IIEES | ILBA | N | Sg | E | 2018-02-10 17:41:38 | 0.08 | y | 46.5 | 101 | |||
| IIEES | SNGE | Z | Pn | E | 2018-02-10 17:41:58 | 0.16 | y | 215 | 44 | |||
| IIEES | SNGE | N | Sg | E | 2018-02-10 17:42:25 | 0.08 | y | 215 | 44 | |||
| IIEES | SRSL | Z | Pn | E | 2018-02-10 17:42:06 | 0.31 | y | 279 | 355 | |||
| IIEES | KHMZ | Z | Pn | E | 2018-02-10 17:42:20 | 0.02 | y | 394 | 88 | |||
| IIEES | ASAO | Z | Pn | E | 2018-02-10 17:42:22 | 0.41 | y | 408 | 76 | |||
| IIEES | ZNJK | Z | Pn | E | 2018-02-10 17:42:24 | -0.13 | y | 426 | 39 | |||
| IIEES | GHVR | Z | Pn | E | 2018-02-10 17:42:36 | 0.65 | y | 517 | 79 | |||
| IIEES | CHTH | Z | Pn | E | 2018-02-10 17:42:39 | -0.71 | y | 552 | 62 | |||
| IIEES | GRMI | Z | Pn | E | 2018-02-10 17:42:45 | -0.43 | y | 599 | 18 | |||
| IIEES | DAMV | Z | Pn | E | 2018-02-10 17:42:46 | -0.91 | y | 612 | 68 | |||
| IIEES | YZKH | Z | Pn | E | 2018-02-10 17:43:16 | 0.16 | y | 841 | 98 | |||
