Magnitude |
:2.2 |
| Date & Time (UTC) | 2018-02-12 19:03:10.5 |
| Date & Time (Local) | 1396/11/23 22:33:10.5 |

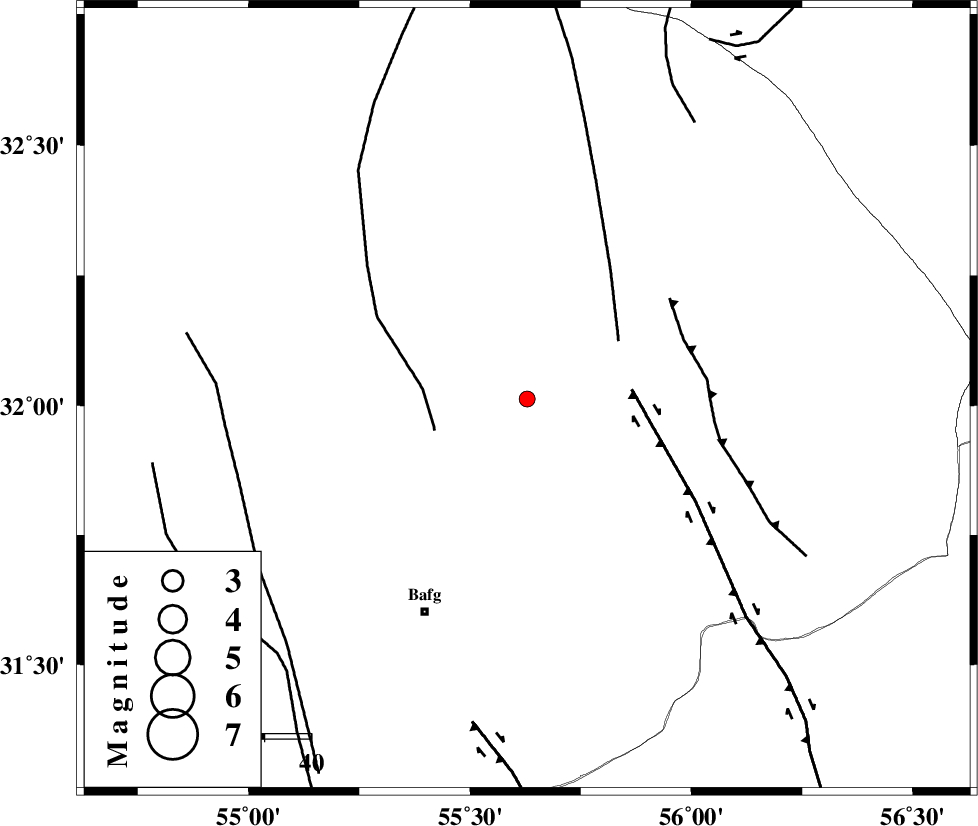

| Location | Lat:32.012 Lon: 55.629 |
| Region | Yazd Province, 50 km North-East of Bafq |
Nearest Cities |
|
| 34 km North West of Kushk, Yazd Province | |
| 41 km North West of Behabad, Yazd Province | |
| 47 km North East of Mobarake, Yazd Province | |
| 50 km North East of Bafq, Yazd Province | |
| 53 km North West of Benestan, Yazd Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| POSHT_E_BADAM_F (Length: 128 km) , Distance to epicenter: 21 km | |
| KUHBANAN_F (Length: 189 km) , Distance to epicenter: 22 km | |
| SARBALA_F (Length: 92 km) , Distance to epicenter: 23 km | |
| Number of Phases | 7 |
| RMS | 0.3 |
| Number of Stations | 6 |
| Error in Latitude | >4.9 km |
| Error in Longitude | 4.5 km |
| Error in Depth | 8.9 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 128238 | IIEES | YZKH | E | 66 | 0.18 | 2018-02-12 19:03:42 | 2018-02-13 05:53:00 | n |
| 128239 | IIEES | YZKH | N | 61.9 | 0.35 | 2018-02-12 19:03:43 | 2018-02-13 05:53:00 | n |
| 128240 | IIEES | TABS | N | 13.4 | 0.24 | 2018-02-12 19:04:12 | 2018-02-13 05:53:00 | n |
| 128241 | IIEES | NASN | N | 10.6 | 0.19 | 2018-02-12 19:04:33 | 2018-02-13 05:53:00 | n |
| 128242 | IIEES | NASN | E | 7.6 | 0.34 | 2018-02-12 19:04:33 | 2018-02-13 05:53:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | YZKH | Z | Pg | E | 2018-02-12 19:03:28 | 0.01 | y | 106 | 293 | |||
| IIEES | YZKH | N | Sg | E | 2018-02-12 19:03:41 | -0.33 | y | 106 | 293 | |||
| IIEES | TABS | Z | Pn | E | 2018-02-12 19:03:46 | -0.12 | y | 229 | 37 | |||
| IIEES | KRBR | Z | Pn | E | 2018-02-12 19:03:49 | -0.12 | y | 250 | 154 | |||
| IIEES | NASN | Z | Pn | E | 2018-02-12 19:03:53 | 0.57 | y | 279 | 289 | |||
| IIEES | BSRN | Z | Pn | E | 2018-02-12 19:03:59 | -0.24 | y | 330 | 90 | |||
| IIEES | SHRT | Z | Pn | E | 2018-02-12 19:04:17 | 0.33 | y | 473 | 66 | |||
