Magnitude |
:3.1 |
| Date & Time (UTC) | 2018-02-13 03:30:33.1 |
| Date & Time (Local) | 1396/11/24 07:00:33.1 |

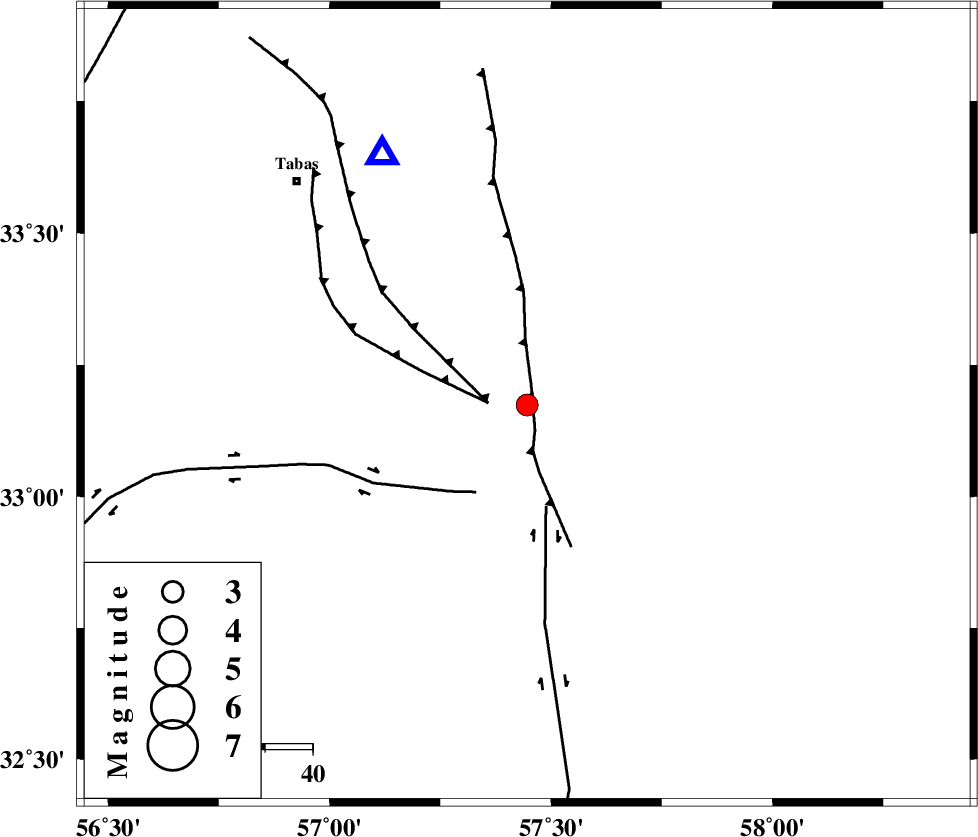

| Location | Lat:33.174 Lon: 57.446 |
| Region | Yazd Province, 68 km South-East of Tabas |
Nearest Cities |
|
| 14 km South of Dihuk, Yazd Province | |
| 25 km North West of Arababad, Yazd Province | |
| 57 km South East of Kerit, Yazd Province | |
| 58 km South of Arsak, Khorasan(center) Province | |
| 65 km South East of Oshtoqran, Yazd Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| ESFARDIAR_F (Length: 94 km) , Distance to epicenter: 4 km | |
| TABAS_F2 (Length: 67 km) , Distance to epicenter: 8 km | |
| TABAS_F1 (Length: 91 km) , Distance to epicenter: 8 km | |
| Number of Phases | 10 |
| RMS | 0.4 |
| Number of Stations | 9 |
| Error in Latitude | >2.6 km |
| Error in Longitude | 4.6 km |
| Error in Depth | 8 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 128253 | IIEES | YZKH | N | 77.7 | 0.46 | 2018-02-13 03:31:55 | 2018-02-13 05:53:00 | n |
| 128254 | IIEES | YZKH | E | 81.5 | 0.41 | 2018-02-13 03:31:56 | 2018-02-13 05:53:00 | n |
| 128255 | IIEES | KRBR | N | 43.4 | 0.23 | 2018-02-13 03:32:22 | 2018-02-13 05:53:00 | n |
| 128256 | IIEES | KRBR | E | 43.8 | 0.37 | 2018-02-13 03:32:26 | 2018-02-13 05:53:00 | n |
| 128257 | IIEES | NASN | N | 14.1 | 0.39 | 2018-02-13 03:32:39 | 2018-02-13 05:53:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | TABS | Z | Pg | E | 2018-02-13 03:30:43 | -0.16 | y | 60.9 | 330 | |||
| IIEES | BSRN | Z | Pn | E | 2018-02-13 03:31:06 | -0.56 | y | 207 | 130 | |||
| IIEES | SHRT | Z | Pn | E | 2018-02-13 03:31:14 | 0.11 | y | 270 | 78 | |||
| IIEES | YZKH | Z | Pn | E | 2018-02-13 03:31:15 | -0.12 | y | 281 | 253 | |||
| IIEES | SHRO | Z | Pn | E | 2018-02-13 03:31:23 | 0.28 | y | 341 | 338 | |||
| IIEES | KRBR | Z | Pn | E | 2018-02-13 03:31:26 | 0.79 | y | 360 | 191 | |||
| IIEES | KRBR | N | Sg | E | 2018-02-13 03:32:14 | -0.04 | y | 360 | 191 | |||
| IIEES | NASN | Z | Pn | E | 2018-02-13 03:31:34 | -0.38 | y | 435 | 266 | |||
| IIEES | ZHSF | Z | Pn | E | 2018-02-13 03:31:43 | 0.05 | y | 506 | 140 | |||
| IIEES | MRVT | Z | Pn | E | 2018-02-13 03:31:44 | 0.15 | y | 513 | 346 | |||
