Magnitude |
:3.7 |
| Date & Time (UTC) | 2018-02-01 03:29:35.8 |
| Date & Time (Local) | 1396/11/12 06:59:35.8 |

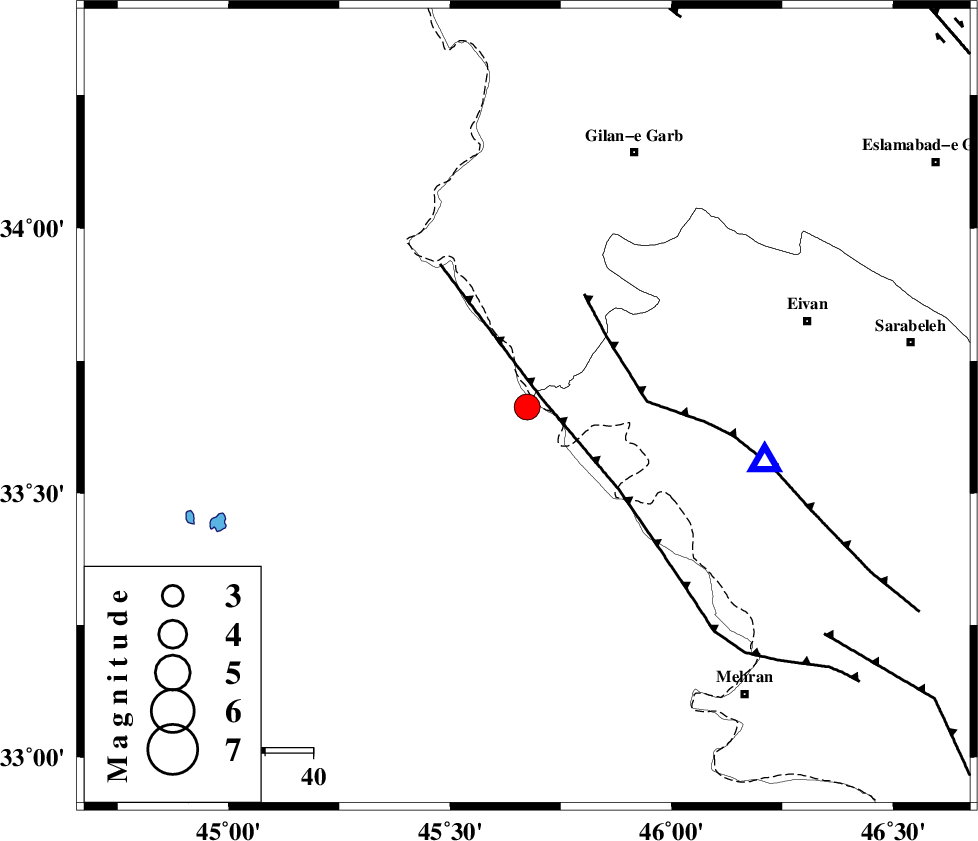

| Location | Lat:33.663 Lon: 45.674 |
| Region | Iraq, 58 km South-West of Gilan-E-Gharb |
Nearest Cities |
|
| 24 km South of Sumar, Kermanshah Province | |
| 49 km South West of Nian, Kermanshah Province | |
| 52 km North West of Salehabad, Ilam Province | |
| 53 km South West of Teran, Ilam Province | |
| 55 km West of Chavar, Ilam Province | |
| Depth | 10 km |
| Agency | |
Faults within 150 km: |
|
| ZFF4 (Length: 128 km) , Distance to epicenter: 4 km | |
| MFF7 (Length: 99 km) , Distance to epicenter: 22 km | |
| MFF6 (Length: 144 km) , Distance to epicenter: 78 km | |
| Number of Phases | 9 |
| RMS | 0.3 |
| Number of Stations | 8 |
| Error in Latitude | >8.2 km |
| Error in Longitude | 9 km |
| Error in Depth | 6.7 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 128325 | IIEES | ILBA | E | 6406.6 | 0.26 | 2018-02-01 03:29:52 | 2018-02-13 11:20:00 | n |
| 128326 | IIEES | ILBA | N | 10138.4 | 0.38 | 2018-02-01 03:29:52 | 2018-02-13 11:20:00 | n |
| 128327 | IIEES | GHVR | N | 29.6 | 0.27 | 2018-02-01 03:31:48 | 2018-02-13 11:20:00 | n |
| 128328 | IIEES | GHVR | E | 42.6 | 0.41 | 2018-02-01 03:31:48 | 2018-02-13 11:20:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | ILBA | Z | Pg | E | 2018-02-01 03:29:44 | 0.06 | y | 49.7 | 95 | |||
| IIEES | ILBA | N | Sg | E | 2018-02-01 03:29:51 | -0.05 | y | 49.7 | 95 | |||
| IIEES | KHMZ | Z | Pn | E | 2018-02-01 03:30:33 | -0.12 | y | 398 | 88 | |||
| IIEES | ASAO | Z | Pn | E | 2018-02-01 03:30:36 | 0.46 | y | 413 | 75 | |||
| IIEES | ZNJK | Z | Pn | E | 2018-02-01 03:30:37 | 0.04 | y | 432 | 39 | |||
| IIEES | GHVR | Z | Pn | E | 2018-02-01 03:30:49 | 0.28 | y | 522 | 78 | |||
| IIEES | GRMI | Z | P | E | 2018-02-01 03:30:59 | -0.16 | y | 605 | 19 | |||
| IIEES | DAMV | Z | Pn | E | 2018-02-01 03:31:00 | -0.42 | y | 617 | 68 | |||
| IIEES | NASN | Z | Pn | E | 2018-02-01 03:31:07 | -0.35 | y | 672 | 96 | |||
