Magnitude |
:3.1 |
| Date & Time (UTC) | 2018-02-01 10:02:19.1 |
| Date & Time (Local) | 1396/11/12 13:32:19.1 |

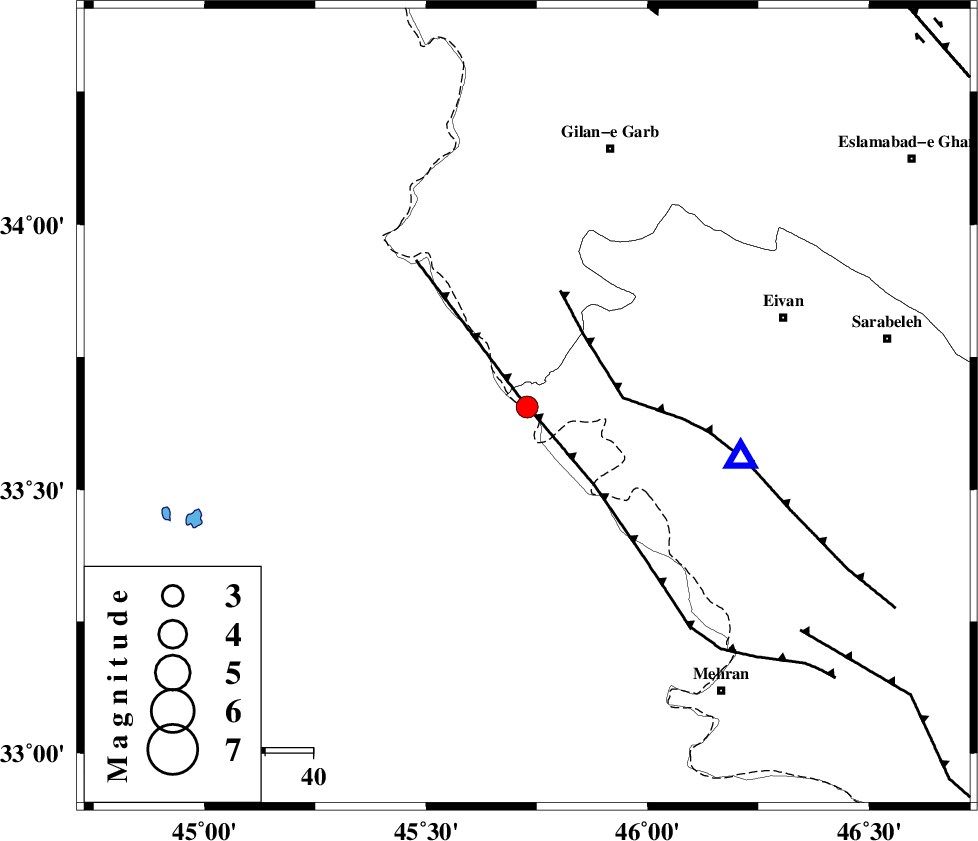

| Location | Lat:33.656 Lon: 45.728 |
| Region | Ilam Province, 57 km South-West of Gilan-E-Gharb |
Nearest Cities |
|
| 26 km South of Sumar, Kermanshah Province | |
| 47 km South West of Nian, Kermanshah Province | |
| 47 km North West of Salehabad, Ilam Province | |
| 49 km South West of Teran, Ilam Province | |
| 50 km West of Chavar, Ilam Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| ZFF4 (Length: 128 km) , Distance to epicenter: 3 km | |
| MFF7 (Length: 99 km) , Distance to epicenter: 19 km | |
| MFF6 (Length: 144 km) , Distance to epicenter: 74 km | |
| Number of Phases | 6 |
| RMS | 0.2 |
| Number of Stations | 5 |
| Error in Latitude | >3.1 km |
| Error in Longitude | 6.2 km |
| Error in Depth | 7 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 128343 | IIEES | ILBA | N | 2535.9 | 0.29 | 2018-02-01 10:02:34 | 2018-02-13 11:20:00 | n |
| 128344 | IIEES | ILBA | E | 1674.2 | 0.37 | 2018-02-01 10:02:34 | 2018-02-13 11:20:00 | n |
| 128345 | IIEES | SNGE | N | 128.6 | 0.51 | 2018-02-01 10:03:26 | 2018-02-13 11:20:00 | n |
| 128346 | IIEES | SNGE | E | 91.2 | 0.57 | 2018-02-01 10:03:29 | 2018-02-13 11:20:00 | n |
| 128347 | IIEES | SRSL | E | 101.6 | 0.53 | 2018-02-01 10:03:45 | 2018-02-13 11:20:00 | n |
| 128348 | IIEES | SRSL | N | 79.1 | 0.48 | 2018-02-01 10:03:48 | 2018-02-13 11:20:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | ILBA | Z | Pg | E | 2018-02-01 10:02:27 | -0.21 | y | 44.6 | 94 | |||
| IIEES | SNGE | Z | Pn | E | 2018-02-01 10:02:54 | 0.04 | y | 218 | 43 | |||
| IIEES | SNGE | N | Sg | E | 2018-02-01 10:03:21 | -0.03 | y | 218 | 43 | |||
| IIEES | SRSL | Z | Pn | E | 2018-02-01 10:03:02 | -0.09 | y | 285 | 355 | |||
| IIEES | KHMZ | Z | Pn | E | 2018-02-01 10:03:15 | -0.04 | y | 393 | 87 | |||
| IIEES | ASAO | Z | Pn | E | 2018-02-01 10:03:18 | 0.41 | y | 409 | 75 | |||
