Magnitude |
:4.1 |
| Date & Time (UTC) | 2018-02-16 14:24:14.0 |
| Date & Time (Local) | 1396/11/27 17:54:14.0 |
| Location | Lat:31.74 Lon: 48.612 |
| Region | Khoozestan Province, 47 km North of Ahvaz |
Nearest Cities |
|
| 24 km East of Abdolkhan-eali, Khoozestan Province | |
| 28 km West of Arabhasan, Khoozestan Province | |
| 30 km North West of Mollasani, Khoozestan Province | |
| 32 km South West of Mehdiabad, Khoozestan Province | |
| 33 km North East of Hamidiyeh, Khoozestan Province | |
| Depth | 15 km |
| Agency | |

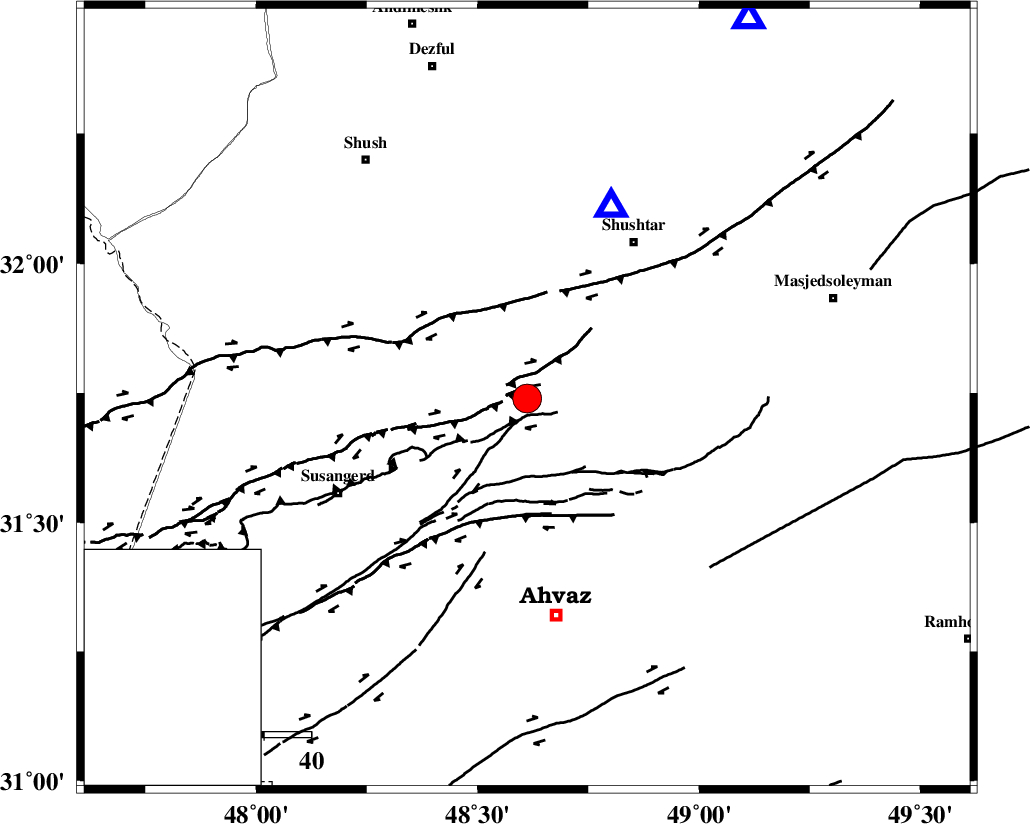

Faults within 150 km: |
|
| AHVAZ_F (Length: 99 km) , Distance to epicenter: 29 km | |
| DEZFUL_EMBAYMENT (Length: 228 km) , Distance to epicenter: 57 km | |
| AGHAJARI_F (Length: 88 km) , Distance to epicenter: 85 km | |
| Number of Phases | 19 |
| RMS | 0.6 |
| Number of Stations | 19 |
| Error in Latitude | >4.7 km |
| Error in Longitude | 2.9 km |
| Error in Depth | 0 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 128574 | IIEES | ILBA | E | 360.4 | 0.64 | 2018-02-16 14:25:52 | 2018-02-17 05:38:00 | n |
| 128575 | IIEES | GHVR | N | 167.2 | 0.66 | 2018-02-16 14:26:16 | 2018-02-17 05:38:00 | n |
| 128576 | IIEES | AHRM | N | 473 | 0.58 | 2018-02-16 14:26:31 | 2018-02-17 05:38:00 | n |
| 128577 | IIEES | AHRM | E | 363.4 | 0.58 | 2018-02-16 14:26:36 | 2018-02-17 05:38:00 | n |
| 128578 | IIEES | CHTH | N | 71.4 | 0.96 | 2018-02-16 14:26:58 | 2018-02-17 05:38:00 | n |
| 128579 | IIEES | SRSL | N | 96.7 | 0.32 | 2018-02-16 14:26:35 | 2018-02-17 05:38:00 | n |
| 128580 | IIEES | SRSL | E | 73.1 | 0.48 | 2018-02-16 14:26:36 | 2018-02-17 05:38:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | ILBA | Z | Pn | E | 2018-02-16 14:25:00 | 0.24 | y | 307 | 313 | |||
| IIEES | ASAO | Z | Pn | E | 2018-02-16 14:25:04 | 0.51 | y | 338 | 23 | |||
| IIEES | SNGE | Z | Pn | E | 2018-02-16 14:25:10 | -0.03 | y | 390 | 343 | |||
| IIEES | GHVR | Z | Pn | E | 2018-02-16 14:25:10 | 0.54 | y | 391 | 38 | |||
| IIEES | AHRM | Z | Pn | E | 2018-02-16 14:25:12 | 0.48 | y | 410 | 140 | |||
| IIEES | NASN | Z | Pn | E | 2018-02-16 14:25:13 | 0.6 | y | 412 | 72 | |||
| IIEES | THKV | Z | Pn | E | 2018-02-16 14:25:25 | 0.22 | y | 509 | 24 | |||
| IIEES | CHTH | Z | Pn | E | 2018-02-16 14:25:25 | -0.92 | y | 518 | 26 | |||
| IIEES | ZNJK | Z | Pn | E | 2018-02-16 14:25:29 | -0.46 | y | 547 | 1 | |||
| IIEES | YZKH | Z | Pn | E | 2018-02-16 14:25:32 | 0.16 | y | 569 | 81 | |||
| IIEES | GHIR | Z | Pn | E | 2018-02-16 14:25:32 | -0.14 | y | 570 | 131 | |||
| IIEES | SRSL | Z | Pn | E | 2018-02-16 14:25:33 | -0.05 | y | 576 | 330 | |||
| IIEES | GIDE | Z | Pn | E | 2018-02-16 14:25:34 | -0.33 | y | 587 | 11 | |||
| IIEES | GRMI | Z | Pn | E | 2018-02-16 14:25:59 | -0.31 | y | 787 | 355 | |||
| IIEES | TABS | Z | Pn | E | 2018-02-16 14:26:03 | -0.34 | y | 825 | 73 | |||
| IIEES | SHRO | Z | Pn | E | 2018-02-16 14:26:04 | -0.06 | y | 832 | 53 | |||
| IIEES | BNDS | Z | Pn | E | 2018-02-16 14:26:08 | -1.79 | y | 876 | 121 | |||
| IIEES | BSRN | Z | Pn | E | 2018-02-16 14:26:24 | -0.85 | y | 995 | 86 | |||
| IIEES | SHRT | Z | Pn | E | 2018-02-16 14:26:39 | -0.41 | y | 1115 | 76 | |||
