Magnitude |
:2.7 |
| Date & Time (UTC) | 2018-02-20 09:11:14.2 |
| Date & Time (Local) | 1396/12/1 12:41:14.2 |

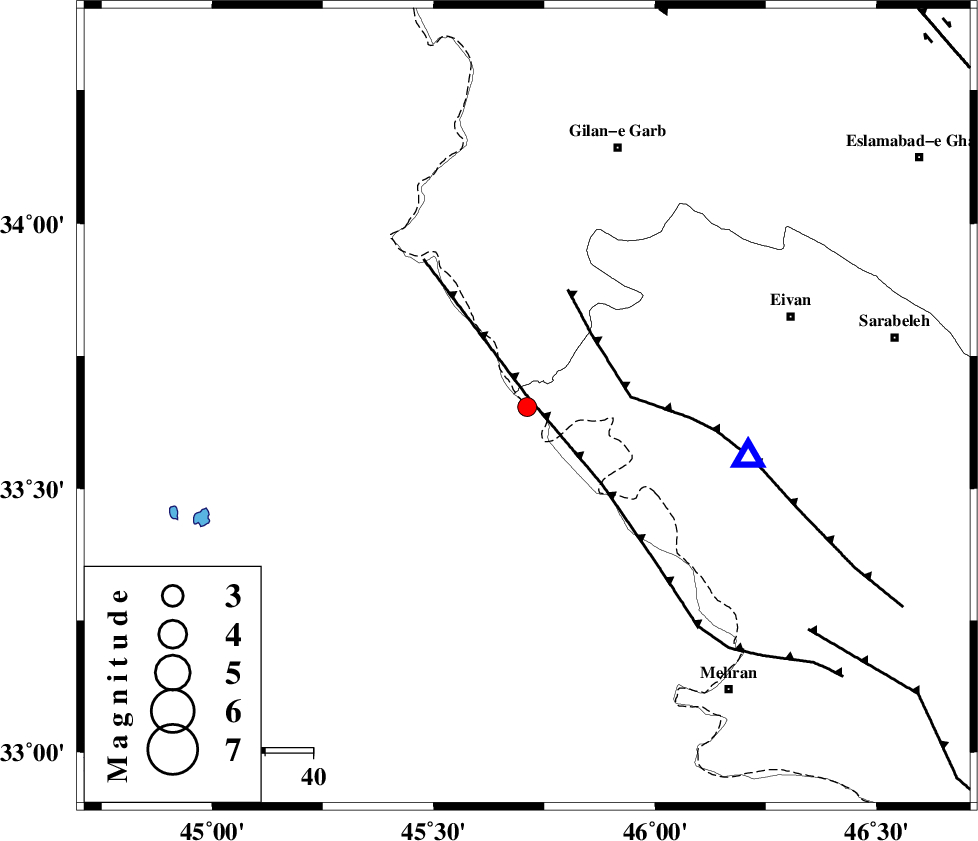

| Location | Lat:33.654 Lon: 45.711 |
| Region | Iraq, 58 km South-West of Gilan-E-Gharb |
Nearest Cities |
|
| 26 km South of Sumar, Kermanshah Province | |
| 48 km South West of Nian, Kermanshah Province | |
| 49 km North West of Salehabad, Ilam Province | |
| 51 km South West of Teran, Ilam Province | |
| 52 km West of Chavar, Ilam Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| ZFF4 (Length: 128 km) , Distance to epicenter: 3 km | |
| MFF7 (Length: 99 km) , Distance to epicenter: 20 km | |
| MFF6 (Length: 144 km) , Distance to epicenter: 75 km | |
| Number of Phases | 6 |
| RMS | 0.1 |
| Number of Stations | 4 |
| Error in Latitude | >2.1 km |
| Error in Longitude | 3.8 km |
| Error in Depth | 5.3 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 128859 | IIEES | ILBA | N | 853 | 0.27 | 2018-02-20 09:11:29 | 2018-02-21 08:32:00 | n |
| 128860 | IIEES | ILBA | E | 454.9 | 0.36 | 2018-02-20 09:11:29 | 2018-02-21 08:32:00 | n |
| 128861 | IIEES | SNGE | N | 54.1 | 0.28 | 2018-02-20 09:12:19 | 2018-02-21 08:32:00 | n |
| 128862 | IIEES | SRSL | E | 28.2 | 0.39 | 2018-02-20 09:12:36 | 2018-02-21 08:32:00 | n |
| 128863 | IIEES | SRSL | N | 24.5 | 0.39 | 2018-02-20 09:12:43 | 2018-02-21 08:32:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | ILBA | Z | Pg | E | 2018-02-20 09:11:22 | -0.09 | y | 46.1 | 94 | |||
| IIEES | ILBA | N | Sg | E | 2018-02-20 09:11:28 | -0.03 | y | 46.1 | 94 | |||
| IIEES | SNGE | Z | Pn | E | 2018-02-20 09:11:49 | 0.06 | y | 219 | 43 | |||
| IIEES | SNGE | N | Sg | E | 2018-02-20 09:12:16 | -0.01 | y | 219 | 43 | |||
| IIEES | SRSL | Z | Pn | E | 2018-02-20 09:11:57 | -0.08 | y | 285 | 355 | |||
| IIEES | ASAO | Z | Pn | E | 2018-02-20 09:12:13 | 0.18 | y | 410 | 75 | |||
