Magnitude |
:3.2 |
| Date & Time (UTC) | 2018-03-10 06:27:40.2 |
| Date & Time (Local) | 1396/12/19 09:57:40.2 |

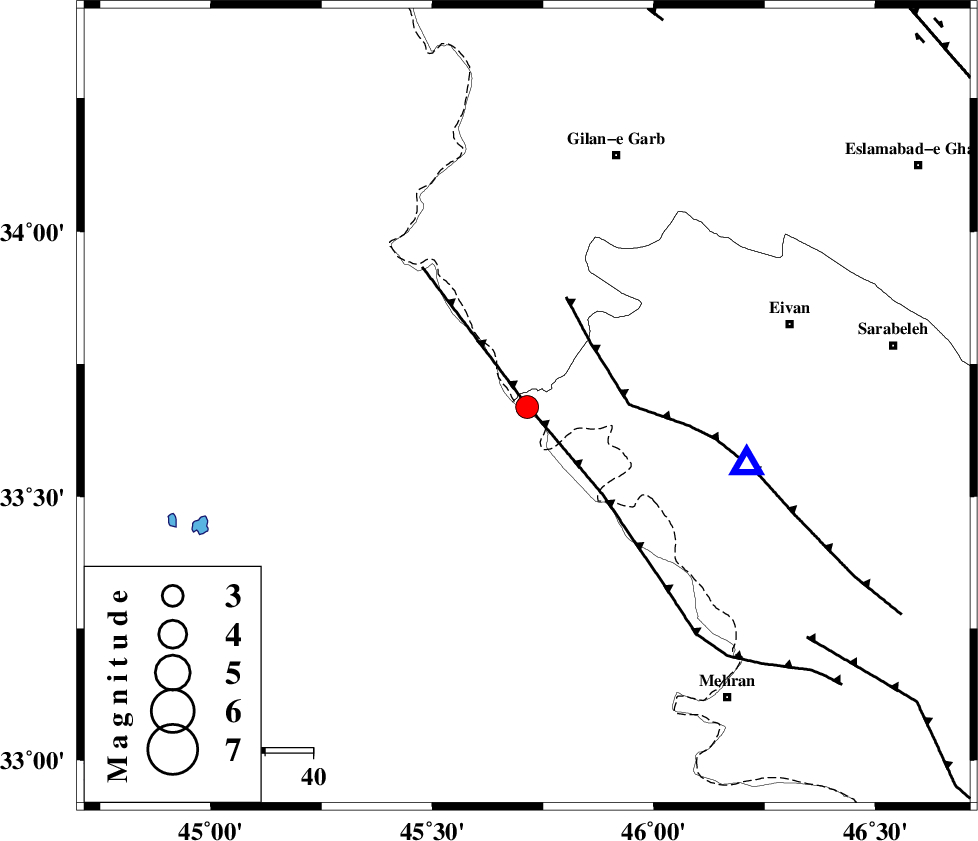

| Location | Lat:33.669 Lon: 45.714 |
| Region | Ilam Province, 56 km South-West of Gilan-E-Gharb |
Nearest Cities |
|
| 24 km South of Sumar, Kermanshah Province | |
| 46 km South West of Nian, Kermanshah Province | |
| 49 km North West of Salehabad, Ilam Province | |
| 49 km South West of Teran, Ilam Province | |
| 51 km West of Chavar, Ilam Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| ZFF4 (Length: 128 km) , Distance to epicenter: 1 km | |
| MFF7 (Length: 99 km) , Distance to epicenter: 19 km | |
| MFF6 (Length: 144 km) , Distance to epicenter: 76 km | |
| Number of Phases | 7 |
| RMS | 0.1 |
| Number of Stations | 6 |
| Error in Latitude | >6.8 km |
| Error in Longitude | 5.9 km |
| Error in Depth | 3.5 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 129312 | IIEES | ILBA | N | 3055.3 | 0.28 | 2018-03-10 06:27:56 | 2018-03-10 07:23:00 | n |
| 129313 | IIEES | ILBA | E | 2078.5 | 0.37 | 2018-03-10 06:28:01 | 2018-03-10 07:23:00 | n |
| 129314 | IIEES | SRSL | E | 113.2 | 0.53 | 2018-03-10 06:29:04 | 2018-03-10 07:23:00 | n |
| 129315 | IIEES | SRSL | N | 94.9 | 0.33 | 2018-03-10 06:29:04 | 2018-03-10 07:23:00 | n |
| 129316 | IIEES | GHVR | E | 9.4 | 0.56 | 2018-03-10 06:29:51 | 2018-03-10 07:23:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | ILBA | Z | Pg | E | 2018-03-10 06:27:48 | -0.04 | y | 46 | 96 | |||
| IIEES | ILBA | N | Sg | E | 2018-03-10 06:27:54 | 0.03 | y | 46 | 96 | |||
| IIEES | SNGE | Z | Pn | E | 2018-03-10 06:28:15 | -0.03 | y | 218 | 43 | |||
| IIEES | SRSL | Z | Pn | E | 2018-03-10 06:28:23 | 0.04 | y | 283 | 355 | |||
| IIEES | KHMZ | Z | Pn | E | 2018-03-10 06:28:37 | 0.14 | y | 394 | 88 | |||
| IIEES | ASAO | Z | Pn | E | 2018-03-10 06:28:39 | 0.13 | y | 410 | 75 | |||
| IIEES | GHVR | Z | Pn | E | 2018-03-10 06:28:52 | -0.33 | y | 518 | 78 | |||
