Magnitude |
:2.4 |
| Date & Time (UTC) | 2018-01-24 18:53:09.6 |
| Date & Time (Local) | 1396/11/4 22:23:09.6 |

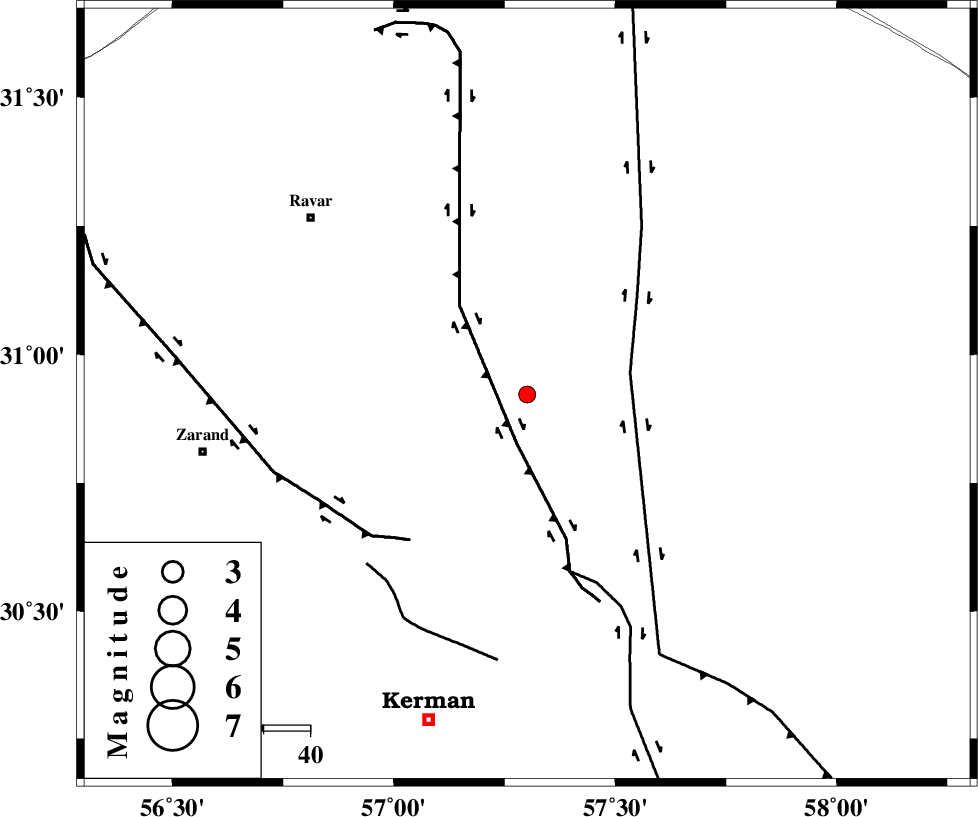

| Location | Lat:30.922 Lon: 57.301 |
| Region | Kerman Province, 60 km South-East of Ravar |
Nearest Cities |
|
| 33 km North East of Harjand, Kerman Province | |
| 36 km North East of Hejdak, Kerman Province | |
| 47 km North of Dehlulu, Kerman Province | |
| 50 km North East of Hatkan, Kerman Province | |
| 52 km North East of Chatrud, Kerman Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| LAKARKUH_F (Length: 138 km) , Distance to epicenter: 11 km | |
| NAYBAND_F (Length: 258 km) , Distance to epicenter: 23 km | |
| GOLBAF_SIRCH_F (Length: 114 km) , Distance to epicenter: 39 km | |
| Number of Phases | 8 |
| RMS | 0.3 |
| Number of Stations | 6 |
| Error in Latitude | >6.9 km |
| Error in Longitude | 2.8 km |
| Error in Depth | 9.3 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 129402 | IIEES | BSRN | E | 24 | 0.43 | 2018-01-24 18:54:10 | 2018-03-11 08:06:00 | n |
| 129403 | IIEES | BSRN | N | 23.1 | 0.57 | 2018-01-24 18:54:11 | 2018-03-11 08:06:00 | n |
| 129404 | IIEES | TABS | N | 12.6 | 0.62 | 2018-01-24 18:54:53 | 2018-03-11 08:06:00 | n |
| 129405 | IIEES | SHRO | E | 1.6 | 0.67 | 2018-01-24 18:56:10 | 2018-03-11 08:06:00 | n |
| 129406 | IIEES | SHRO | N | 1.4 | 0.27 | 2018-01-24 18:56:20 | 2018-03-11 08:06:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | BSRN | Z | Pn | E | 2018-01-24 18:53:42 | -0.59 | y | 209 | 56 | |||
| IIEES | BSRN | N | Sg | E | 2018-01-24 18:54:08 | 0.05 | y | 209 | 56 | |||
| IIEES | TABS | Z | Pn | E | 2018-01-24 18:53:55 | 0.62 | y | 303 | 357 | |||
| IIEES | YZKH | Z | Pn | E | 2018-01-24 18:53:55 | -0.16 | y | 304 | 303 | |||
| IIEES | YZKH | N | Sg | E | 2018-01-24 18:54:35 | -0.09 | y | 304 | 303 | |||
| IIEES | ZHSF | Z | Pn | E | 2018-01-24 18:54:02 | 0.27 | y | 365 | 113 | |||
| IIEES | SHRT | Z | Pn | E | 2018-01-24 18:54:08 | -0.08 | y | 413 | 42 | |||
| IIEES | SHRO | Z | Pn | E | 2018-01-24 18:54:29 | 0.06 | y | 577 | 348 | |||
