Magnitude |
:4 |
| Date & Time (UTC) | 2018-03-28 11:47:10.8 |
| Date & Time (Local) | 1397/1/8 16:17:10.8 |

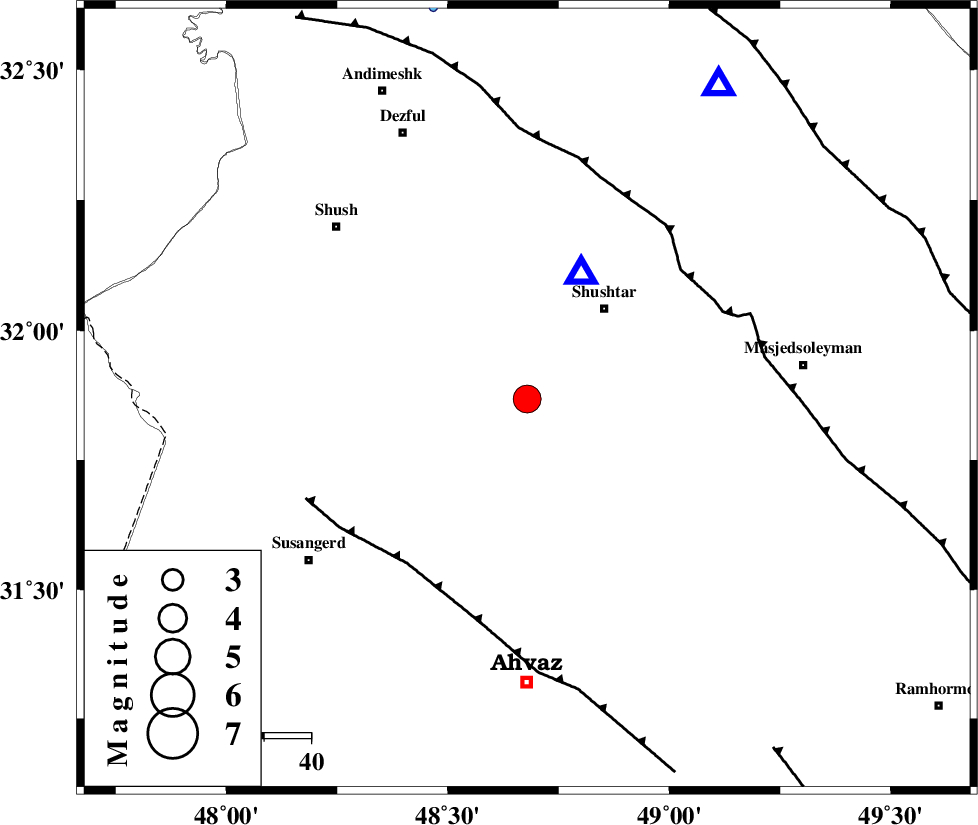

| Location | Lat:31.868 Lon: 48.679 |
| Region | Khoozestan Province, 25 km South-West of Shushtar |
Nearest Cities |
|
| 18 km West of Mehdiabad, Khoozestan Province | |
| 19 km South West of Sardarabad, Khoozestan Province | |
| 21 km North West of Arabhasan, Khoozestan Province | |
| 25 km South West of Shushtar, Khoozestan Province | |
| 28 km North East of Abdolkhan-eali, Khoozestan Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| DEZFUL_EMBAYMENT (Length: 228 km) , Distance to epicenter: 43 km | |
| AHVAZ_F (Length: 99 km) , Distance to epicenter: 44 km | |
| MFF2 (Length: 205 km) , Distance to epicenter: 83 km | |
| Number of Phases | 19 |
| RMS | 0.4 |
| Number of Stations | 16 |
| Error in Latitude | >4.6 km |
| Error in Longitude | 3.4 km |
| Error in Depth | 9.6 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 129788 | IIEES | KHMZ | N | 836.8 | 0.98 | 2018-03-28 11:48:25 | 2018-03-29 07:44:00 | n |
| 129789 | IIEES | ILBA | E | 530.8 | 0.69 | 2018-03-28 11:48:55 | 2018-03-29 07:44:00 | n |
| 129790 | IIEES | ILBA | N | 899.9 | 0.81 | 2018-03-28 11:48:55 | 2018-03-29 07:44:00 | n |
| 129791 | IIEES | ASAO | N | 575.7 | 0.88 | 2018-03-28 11:48:48 | 2018-03-29 07:44:00 | n |
| 129792 | IIEES | GHVR | E | 96 | 0.66 | 2018-03-28 11:49:08 | 2018-03-29 07:44:00 | n |
| 129793 | IIEES | GHVR | N | 167.4 | 0.91 | 2018-03-28 11:49:09 | 2018-03-29 07:44:00 | n |
| 129794 | IIEES | GIDE | N | 24.3 | 0.67 | 2018-03-28 11:50:00 | 2018-03-29 07:44:00 | n |
| 129795 | IIEES | GIDE | E | 117.5 | 0.96 | 2018-03-28 11:50:11 | 2018-03-29 07:44:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | KHMZ | Z | Pn | E | 2018-03-28 11:47:48 | 0.42 | y | 240 | 30 | |||
| IIEES | KHMZ | E | Sg | E | 2018-03-28 11:48:18 | -0.55 | y | 240 | 30 | |||
| IIEES | ILBA | Z | Pn | E | 2018-03-28 11:47:56 | 0.12 | y | 303 | 311 | |||
| IIEES | ILBA | N | Sg | E | 2018-03-28 11:48:35 | -0.31 | y | 303 | 311 | |||
| IIEES | ASAO | Z | Pn | E | 2018-03-28 11:47:59 | 0.2 | y | 323 | 23 | |||
| IIEES | GHVR | Z | Pn | E | 2018-03-28 11:48:05 | 0.63 | y | 376 | 39 | |||
| IIEES | SNGE | Z | Pn | E | 2018-03-28 11:48:05 | 0.1 | y | 378 | 341 | |||
| IIEES | NASN | Z | Pn | E | 2018-03-28 11:48:09 | 0.29 | y | 402 | 74 | |||
| IIEES | AHRM | Z | Pn | E | 2018-03-28 11:48:09 | -0.47 | y | 417 | 142 | |||
| IIEES | THKV | Z | Pn | E | 2018-03-28 11:48:19 | -0.21 | y | 493 | 24 | |||
| IIEES | CHTH | Z | Pn | E | 2018-03-28 11:48:21 | 0.08 | y | 502 | 26 | |||
| IIEES | DAMV | Z | Pn | E | 2018-03-28 11:48:23 | 0.24 | y | 517 | 35 | |||
| IIEES | YZKH | Z | Pn | E | 2018-03-28 11:48:28 | -0.32 | y | 561 | 83 | |||
| IIEES | GIDE | Z | Pn | E | 2018-03-28 11:48:30 | 0.46 | y | 572 | 11 | |||
| IIEES | GRMI | Z | Pn | E | 2018-03-28 11:48:54 | -0.49 | y | 773 | 355 | |||
| IIEES | TABS | Z | Pn | E | 2018-03-28 11:48:58 | -0.87 | y | 815 | 74 | |||
| IIEES | BNDS | Z | Pn | E | 2018-03-28 11:49:04 | -2.9 | n | 4 | 878 | 122 | ||
| IIEES | BSRN | Z | Pn | E | 2018-03-28 11:49:20 | -0.51 | y | 988 | 87 | |||
| IIEES | SHRT | Z | Pn | E | 2018-03-28 11:49:36 | 0.71 | y | 1105 | 77 | |||
