Magnitude |
:3.5 |
| Date & Time (UTC) | 2018-04-04 21:31:16.4 |
| Date & Time (Local) | 1397/1/16 02:01:16.4 |

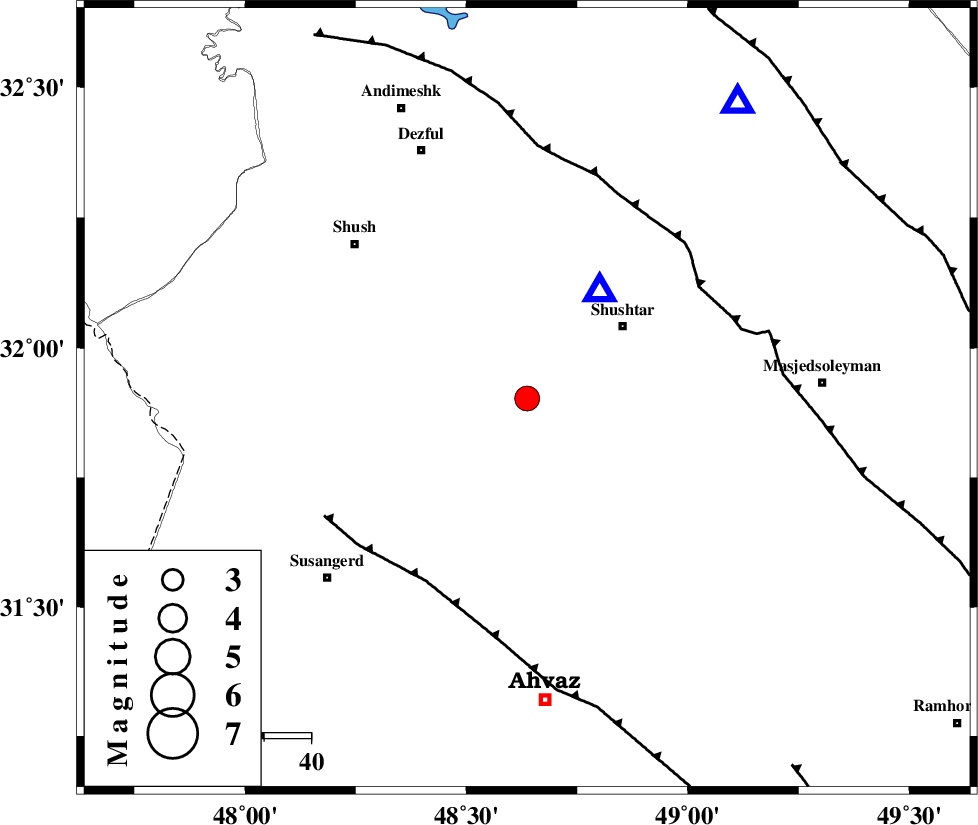

| Location | Lat:31.902 Lon: 48.637 |
| Region | Khoozestan Province, 26 km South-West of Shushtar |
Nearest Cities |
|
| 19 km South West of Sardarabad, Khoozestan Province | |
| 20 km West of Mehdiabad, Khoozestan Province | |
| 25 km North West of Arabhasan, Khoozestan Province | |
| 26 km North East of Abdolkhan-eali, Khoozestan Province | |
| 26 km South West of Shushtar, Khoozestan Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| DEZFUL_EMBAYMENT (Length: 228 km) , Distance to epicenter: 44 km | |
| AHVAZ_F (Length: 99 km) , Distance to epicenter: 45 km | |
| MFF2 (Length: 205 km) , Distance to epicenter: 84 km | |
| Number of Phases | 19 |
| RMS | 0.4 |
| Number of Stations | 15 |
| Error in Latitude | >4.8 km |
| Error in Longitude | 3.3 km |
| Error in Depth | 9.7 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 130011 | IIEES | KHMZ | E | 131.2 | 0.45 | 2018-04-04 21:32:34 | 2018-04-07 08:22:00 | n |
| 130012 | IIEES | ILBA | N | 150.3 | 0.79 | 2018-04-04 21:32:52 | 2018-04-07 08:22:00 | n |
| 130013 | IIEES | ASAO | N | 213.9 | 0.87 | 2018-04-04 21:32:52 | 2018-04-07 08:22:00 | n |
| 130014 | IIEES | GHVR | E | 59.1 | 0.5 | 2018-04-04 21:33:22 | 2018-04-07 08:22:00 | n |
| 130015 | IIEES | AHRM | E | 87.3 | 0.58 | 2018-04-04 21:33:38 | 2018-04-07 08:22:00 | n |
| 130016 | IIEES | AHRM | N | 70.5 | 0.39 | 2018-04-04 21:33:39 | 2018-04-07 08:22:00 | n |
| 130017 | IIEES | THKV | N | 44 | 0.91 | 2018-04-04 21:33:56 | 2018-04-07 08:22:00 | n |
| 130018 | IIEES | DAMV | E | 18.2 | 1.06 | 2018-04-04 21:33:58 | 2018-04-07 08:22:00 | n |
| 130019 | IIEES | SRSL | N | 22.9 | 0.62 | 2018-04-04 21:33:35 | 2018-04-07 08:22:00 | n |
| 130020 | IIEES | YZKH | N | 15.1 | 0.28 | 2018-04-04 21:33:36 | 2018-04-07 08:22:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | KHMZ | Z | Pn | E | 2018-04-04 21:31:53 | -0.24 | y | 239 | 31 | |||
| IIEES | KHMZ | E | Sg | E | 2018-04-04 21:32:23 | -0.33 | y | 239 | 31 | |||
| IIEES | ILBA | Z | Pn | E | 2018-04-04 21:32:00 | -0.45 | y | 297 | 311 | |||
| IIEES | ILBA | N | Sg | E | 2018-04-04 21:32:40 | 0.31 | y | 297 | 311 | |||
| IIEES | ASAO | Z | Pn | E | 2018-04-04 21:32:04 | -0.11 | y | 321 | 23 | |||
| IIEES | SNGE | Z | Pn | E | 2018-04-04 21:32:10 | 0.3 | y | 374 | 342 | |||
| IIEES | GHVR | Z | Pn | E | 2018-04-04 21:32:11 | 0.64 | y | 375 | 40 | |||
| IIEES | NASN | Z | Pn | E | 2018-04-04 21:32:14 | 0.1 | y | 405 | 75 | |||
| IIEES | AHRM | Z | Pn | E | 2018-04-04 21:32:16 | -0.36 | y | 423 | 142 | |||
| IIEES | THKV | Z | Pn | E | 2018-04-04 21:32:25 | 0.44 | y | 491 | 24 | |||
| IIEES | CHTH | Z | Pn | E | 2018-04-04 21:32:26 | -0.2 | y | 500 | 27 | |||
| IIEES | DAMV | Z | Pn | E | 2018-04-04 21:32:28 | -0.29 | y | 516 | 36 | |||
| IIEES | SRSL | Z | Pn | E | 2018-04-04 21:32:33 | -0.32 | y | 562 | 329 | |||
| IIEES | YZKH | Z | Pn | E | 2018-04-04 21:32:34 | -0.04 | y | 564 | 83 | |||
| IIEES | GHIR | Z | Pn | E | 2018-04-04 21:32:34 | -1.47 | n | 4 | 580 | 133 | ||
| IIEES | GRMI | Z | Pn | E | 2018-04-04 21:32:59 | -0.25 | y | 769 | 355 | |||
| IIEES | SHRO | Z | Pn | E | 2018-04-04 21:33:06 | 0.89 | y | 820 | 54 | |||
| IIEES | BNDS | Z | Pn | E | 2018-04-04 21:33:11 | -2.72 | n | 4 | 883 | 122 | ||
| IIEES | BSRN | Z | Pn | E | 2018-04-04 21:33:28 | 1.3 | y | 992 | 87 | |||
