Magnitude |
:2.8 |
| Date & Time (UTC) | 2018-04-12 05:23:32.2 |
| Date & Time (Local) | 1397/1/23 09:53:32.2 |
| Location | Lat:31.619 Lon: 56.941 |
| Region | Kerman Province, 41 km North-East of Ravar |
Nearest Cities |
|
| 36 km North East of Dehali, Kerman Province | |
| 41 km North East of Ravar, Kerman Province | |
| 65 km North East of Kuhbanan, Kerman Province | |
| 68 km East of Asfih, Yazd Province | |
| 68 km North East of Jor, Kerman Province | |
| Depth | 14 km |
| Agency | |

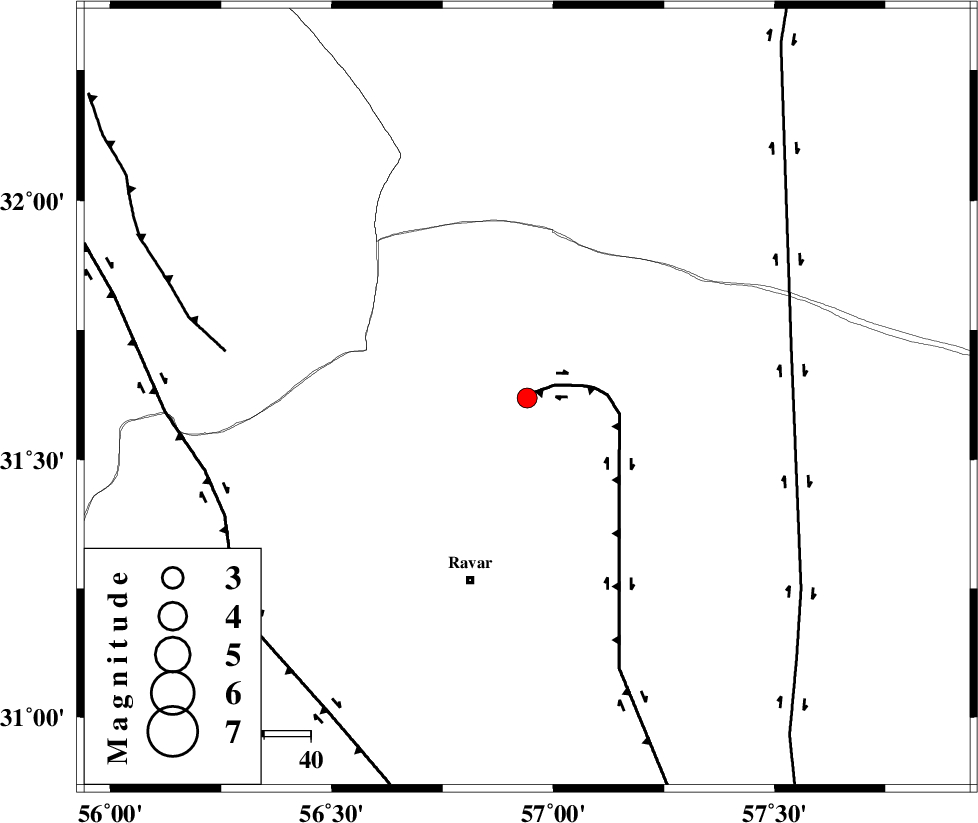

Faults within 150 km: |
|
| LAKARKUH_F (Length: 138 km) , Distance to epicenter: 2 km | |
| NAYBAND_F (Length: 258 km) , Distance to epicenter: 57 km | |
| JAFARABAD_F (Length: 60 km) , Distance to epicenter: 65 km | |
| Number of Phases | 8 |
| RMS | 0.3 |
| Number of Stations | 6 |
| Error in Latitude | >1.9 km |
| Error in Longitude | 4.5 km |
| Error in Depth | 6.3 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 130217 | IIEES | KRBR | N | 118.5 | 0.65 | 2018-04-12 05:24:30 | 2018-04-15 07:09:00 | n |
| 130218 | IIEES | KRBR | E | 127.7 | 0.44 | 2018-04-12 05:24:31 | 2018-04-15 07:09:00 | n |
| 130219 | IIEES | TABS | N | 42.7 | 0.45 | 2018-04-12 05:24:43 | 2018-04-15 07:09:00 | n |
| 130220 | IIEES | YZKH | E | 48.9 | 0.37 | 2018-04-12 05:24:43 | 2018-04-15 07:09:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | KRBR | Z | Pg | E | 2018-04-12 05:24:02 | -0.33 | y | 182 | 185 | |||
| IIEES | KRBR | N | Sg | E | 2018-04-12 05:24:24 | -0.19 | y | 182 | 185 | |||
| IIEES | TABS | Z | Pn | E | 2018-04-12 05:24:08 | 0.12 | y | 226 | 4 | |||
| IIEES | TABS | N | Sg | E | 2018-04-12 05:24:35 | -0.5 | y | 226 | 4 | |||
| IIEES | YZKH | Z | Pn | E | 2018-04-12 05:24:09 | 0.33 | y | 238 | 292 | |||
| IIEES | SHRT | Z | Pn | E | 2018-04-12 05:24:28 | 0.25 | y | 386 | 54 | |||
| IIEES | NASN | Z | Pn | E | 2018-04-12 05:24:31 | 0.12 | y | 411 | 290 | |||
| IIEES | ZHSF | Z | Pn | E | 2018-04-12 05:24:33 | 0.35 | y | 430 | 120 | |||
