Magnitude |
:2.8 |
| Date & Time (UTC) | 2018-04-12 12:09:28.4 |
| Date & Time (Local) | 1397/1/23 16:39:28.4 |

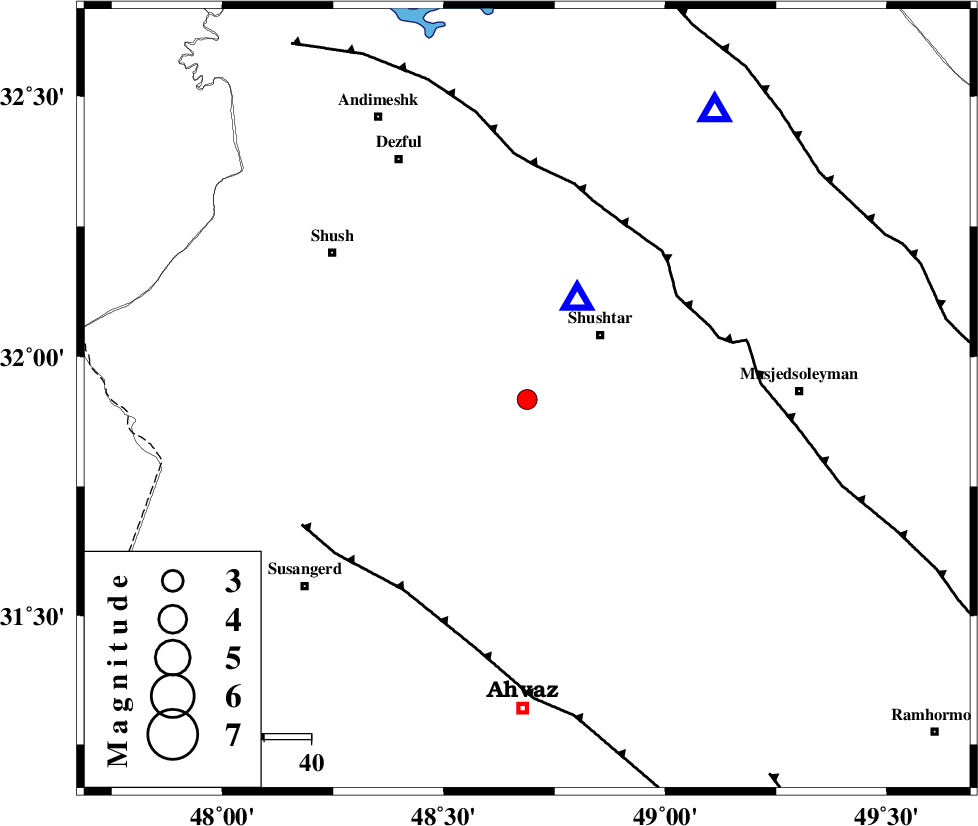

| Location | Lat:31.917 Lon: 48.688 |
| Region | Khoozestan Province, 21 km South-West of Shushtar |
Nearest Cities |
|
| 15 km West of Sardarabad, Khoozestan Province | |
| 15 km West of Mehdiabad, Khoozestan Province | |
| 21 km South West of Shushtar, Khoozestan Province | |
| 22 km North West of Arabhasan, Khoozestan Province | |
| 31 km North East of Abdolkhan-eali, Khoozestan Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| DEZFUL_EMBAYMENT (Length: 228 km) , Distance to epicenter: 39 km | |
| AHVAZ_F (Length: 99 km) , Distance to epicenter: 49 km | |
| MFF2 (Length: 205 km) , Distance to epicenter: 79 km | |
| Number of Phases | 8 |
| RMS | 0.1 |
| Number of Stations | 7 |
| Error in Latitude | >5.5 km |
| Error in Longitude | 2.3 km |
| Error in Depth | 9.7 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 130227 | IIEES | KHMZ | E | 36.9 | 0.54 | 2018-04-12 12:10:46 | 2018-04-15 07:09:00 | n |
| 130228 | IIEES | ILBA | N | 53.4 | 0.57 | 2018-04-12 12:10:56 | 2018-04-15 07:09:00 | n |
| 130229 | IIEES | ILBA | E | 39.6 | 0.92 | 2018-04-12 12:11:09 | 2018-04-15 07:09:00 | n |
| 130230 | IIEES | ASAO | N | 27.3 | 0.66 | 2018-04-12 12:11:07 | 2018-04-15 07:09:00 | n |
| 130231 | IIEES | ASAO | E | 15.9 | 0.73 | 2018-04-12 12:11:22 | 2018-04-15 07:09:00 | n |
| 130232 | IIEES | SRSL | N | 4.2 | 0.51 | 2018-04-12 12:11:52 | 2018-04-15 07:09:00 | n |
| 130233 | IIEES | SRSL | E | 4 | 0.57 | 2018-04-12 12:11:55 | 2018-04-15 07:09:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | KHMZ | Z | Pn | E | 2018-04-12 12:10:05 | -0.04 | y | 235 | 30 | |||
| IIEES | KHMZ | E | Sg | E | 2018-04-12 12:10:35 | 0 | y | 235 | 30 | |||
| IIEES | ILBA | Z | Pn | E | 2018-04-12 12:10:13 | 0.11 | y | 300 | 310 | |||
| IIEES | ASAO | Z | Pn | E | 2018-04-12 12:10:15 | 0.12 | y | 317 | 23 | |||
| IIEES | GHVR | Z | Pn | E | 2018-04-12 12:10:22 | 0.07 | y | 371 | 39 | |||
| IIEES | SNGE | Z | Pn | E | 2018-04-12 12:10:22 | -0.16 | y | 374 | 341 | |||
| IIEES | NASN | Z | Pn | E | 2018-04-12 12:10:25 | -0.07 | y | 400 | 75 | |||
| IIEES | SRSL | Z | Pn | E | 2018-04-12 12:10:46 | -0.08 | y | 563 | 329 | |||
