Magnitude |
:4.4 |
| Date & Time (UTC) | 2018-04-16 04:30:37.1 |
| Date & Time (Local) | 1397/1/27 09:00:37.1 |

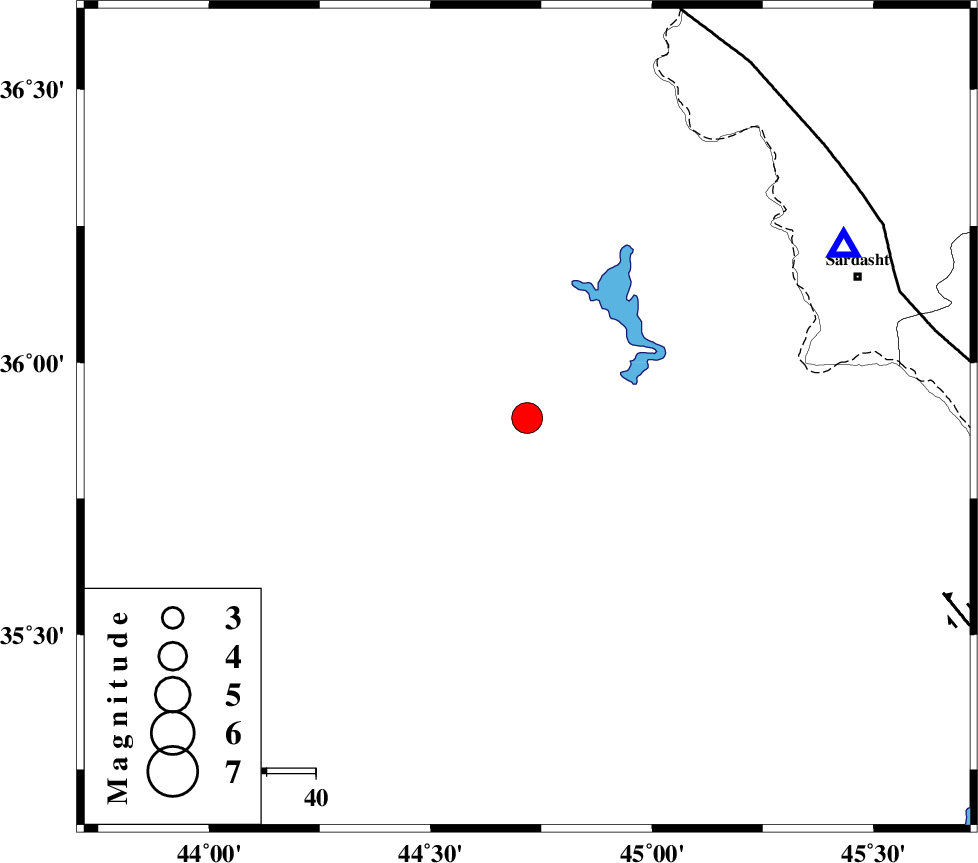

| Location | Lat:35.898 Lon: 44.718 |
| Region | Iraq, 73 km South-West of Sardasht |
Nearest Cities |
|
| 67 km South West of Bivaran-e sofla, Azarbaijan Gharbi Province | |
| 73 km South West of Sardasht, Azarbaijan Gharbi Province | |
| 75 km North West of Sulaymaniyah, Iraq Province | |
| 79 km South West of Bersiv, Azarbaijan Gharbi Province | |
| 79 km South West of Felas, Azarbaijan Gharbi Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| PIRANSHAHR_F (Length: 253 km) , Distance to epicenter: 80 km | |
| HZF4 (Length: 492 km) , Distance to epicenter: 92 km | |
| Number of Phases | 16 |
| RMS | 0.5 |
| Number of Stations | 14 |
| Error in Latitude | >6 km |
| Error in Longitude | 7.6 km |
| Error in Depth | 8.2 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 130349 | IIEES | SRSL | E | 16942.7 | 0.38 | 2018-04-16 04:31:01 | 2018-04-16 05:28:00 | n |
| 130350 | IIEES | SRSL | N | 15681.3 | 0.34 | 2018-04-16 04:31:02 | 2018-04-16 05:28:00 | n |
| 130351 | IIEES | SNGE | N | 1192.3 | 0.44 | 2018-04-16 04:31:57 | 2018-04-16 05:28:00 | n |
| 130352 | IIEES | SNGE | E | 1324.5 | 0.87 | 2018-04-16 04:32:00 | 2018-04-16 05:28:00 | n |
| 130353 | IIEES | ILBA | N | 1773.4 | 0.42 | 2018-04-16 04:32:08 | 2018-04-16 05:28:00 | n |
| 130354 | IIEES | ILBA | E | 2324.6 | 0.5 | 2018-04-16 04:32:09 | 2018-04-16 05:28:00 | n |
| 130355 | IIEES | GIDE | N | 419.7 | 0.86 | 2018-04-16 04:33:04 | 2018-04-16 05:28:00 | n |
| 130356 | IIEES | KHMZ | E | 94.2 | 0.59 | 2018-04-16 04:33:29 | 2018-04-16 05:28:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | SRSL | Z | Pg | E | 2018-04-16 04:30:49 | -0.69 | y | 73.3 | 61 | |||
| IIEES | SRSL | N | Sg | E | 2018-04-16 04:30:59 | 0.02 | y | 73.3 | 61 | |||
| IIEES | SNGE | Z | Pn | E | 2018-04-16 04:31:16 | 0.29 | y | 255 | 110 | |||
| IIEES | SNGE | N | S | E | 2018-04-16 04:31:44 | -0.49 | y | 255 | 110 | |||
| IIEES | ILBA | Z | Pn | E | 2018-04-16 04:31:20 | -0.28 | y | 287 | 151 | |||
| IIEES | MAKU | Z | Pn | E | 2018-04-16 04:31:32 | -0.44 | y | 384 | 360 | |||
| IIEES | GRMI | Z | Pn | E | 2018-04-16 04:31:38 | 0.41 | y | 428 | 40 | |||
| IIEES | GIDE | Z | Pn | E | 2018-04-16 04:31:44 | 0.43 | y | 479 | 75 | |||
| IIEES | ASAO | Z | Pn | E | 2018-04-16 04:31:48 | 0.29 | y | 506 | 106 | |||
| IIEES | KHMZ | Z | Pn | E | 2018-04-16 04:31:51 | -0.13 | y | 536 | 115 | |||
| IIEES | CHTH | Z | Pn | E | 2018-04-16 04:31:56 | 0.07 | y | 578 | 88 | |||
| IIEES | GHVR | Z | Pn | E | 2018-04-16 04:32:02 | 0.9 | y | 615 | 103 | |||
| IIEES | DAMV | Z | Pn | E | 2018-04-16 04:32:07 | 1.27 | y | 656 | 90 | |||
| IIEES | NASN | Z | Pn | E | 2018-04-16 04:32:25 | -0.97 | y | 819 | 112 | |||
| IIEES | YZKH | Z | Pn | E | 2018-04-16 04:32:47 | -0.35 | y | 990 | 110 | |||
| IIEES | MRVT | Z | Pn | E | 2018-04-16 04:32:53 | 0.23 | y | 1033 | 76 | |||
