Magnitude |
:3.2 |
| Date & Time (UTC) | 2018-04-21 14:07:34.9 |
| Date & Time (Local) | 1397/2/1 18:37:34.9 |

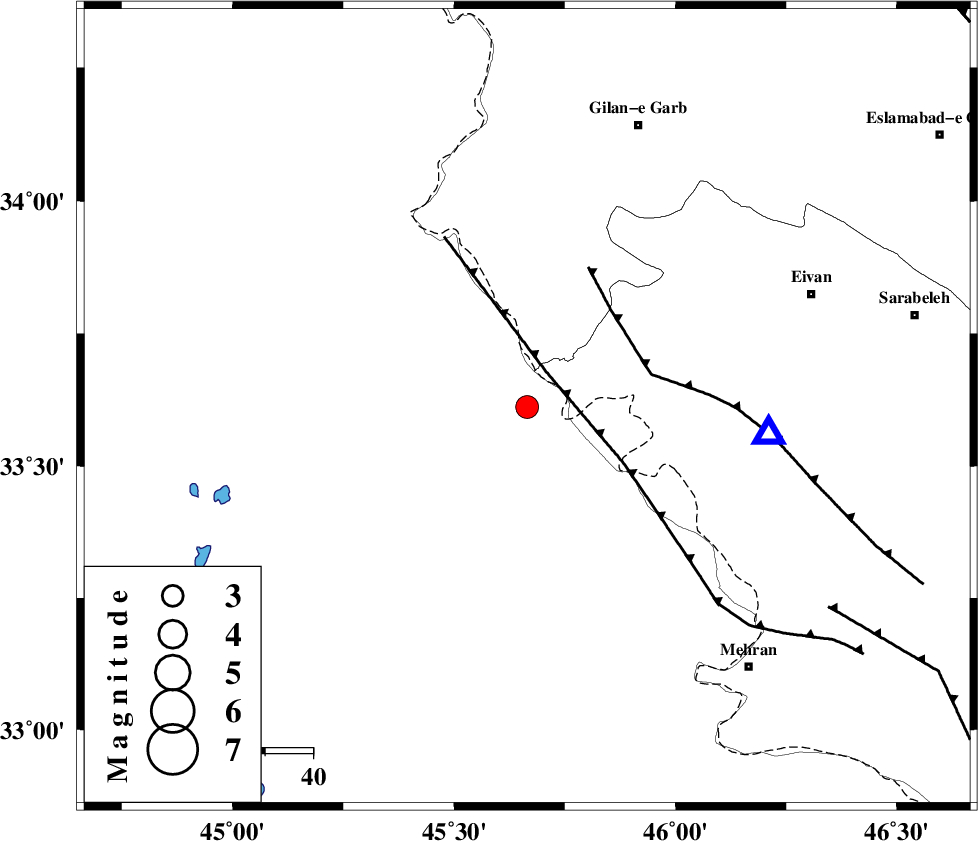

| Location | Lat:33.611 Lon: 45.665 |
| Region | Iraq, 64 km South-West of Gilan-E-Gharb |
Nearest Cities |
|
| 30 km South of Sumar, Kermanshah Province | |
| 51 km North West of Salehabad, Ilam Province | |
| 54 km South West of Nian, Kermanshah Province | |
| 56 km West of Chavar, Ilam Province | |
| 57 km South West of Teran, Ilam Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| ZFF4 (Length: 128 km) , Distance to epicenter: 8 km | |
| MFF7 (Length: 99 km) , Distance to epicenter: 27 km | |
| MFF6 (Length: 144 km) , Distance to epicenter: 76 km | |
| Number of Phases | 8 |
| RMS | 0.3 |
| Number of Stations | 6 |
| Error in Latitude | >4.1 km |
| Error in Longitude | 6.7 km |
| Error in Depth | 8.7 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 130570 | IIEES | ILBA | N | 2504.1 | 0.33 | 2018-04-21 14:07:52 | 2018-04-22 06:02:00 | n |
| 130571 | IIEES | ILBA | E | 1887.8 | 0.28 | 2018-04-21 14:07:55 | 2018-04-22 06:02:00 | n |
| 130572 | IIEES | SNGE | E | 96.6 | 0.54 | 2018-04-21 14:08:42 | 2018-04-22 06:02:00 | n |
| 130573 | IIEES | SNGE | N | 114.5 | 0.48 | 2018-04-21 14:08:43 | 2018-04-22 06:02:00 | n |
| 130574 | IIEES | SRSL | N | 94.1 | 0.21 | 2018-04-21 14:08:59 | 2018-04-22 06:02:00 | n |
| 130575 | IIEES | SRSL | E | 91.3 | 0.5 | 2018-04-21 14:09:00 | 2018-04-22 06:02:00 | n |
| 130576 | IIEES | ASAO | N | 27.3 | 0.79 | 2018-04-21 14:09:48 | 2018-04-22 06:02:00 | n |
| 130577 | IIEES | GHVR | E | 12 | 0.51 | 2018-04-21 14:09:49 | 2018-04-22 06:02:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | ILBA | Z | Pg | E | 2018-04-21 14:07:43 | -0.15 | y | 50.3 | 88 | |||
| IIEES | ILBA | N | Sg | E | 2018-04-21 14:07:50 | -0.18 | y | 50.3 | 88 | |||
| IIEES | SNGE | Z | Pn | E | 2018-04-21 14:08:10 | -0.26 | y | 226 | 43 | |||
| IIEES | SNGE | E | Sg | E | 2018-04-21 14:08:39 | 0.11 | y | 226 | 43 | |||
| IIEES | SRSL | Z | Pn | E | 2018-04-21 14:08:18 | -0.14 | y | 289 | 356 | |||
| IIEES | KHMZ | Z | Pn | E | 2018-04-21 14:08:32 | -0.02 | y | 399 | 87 | |||
| IIEES | ASAO | Z | Pn | E | 2018-04-21 14:08:34 | 0.53 | y | 416 | 74 | |||
| IIEES | GHVR | Z | Pn | E | 2018-04-21 14:08:48 | 0.34 | y | 524 | 78 | |||
