Magnitude |
:2.5 |
| Date & Time (UTC) | 2018-04-20 10:46:33.2 |
| Date & Time (Local) | 1397/1/31 15:16:33.2 |

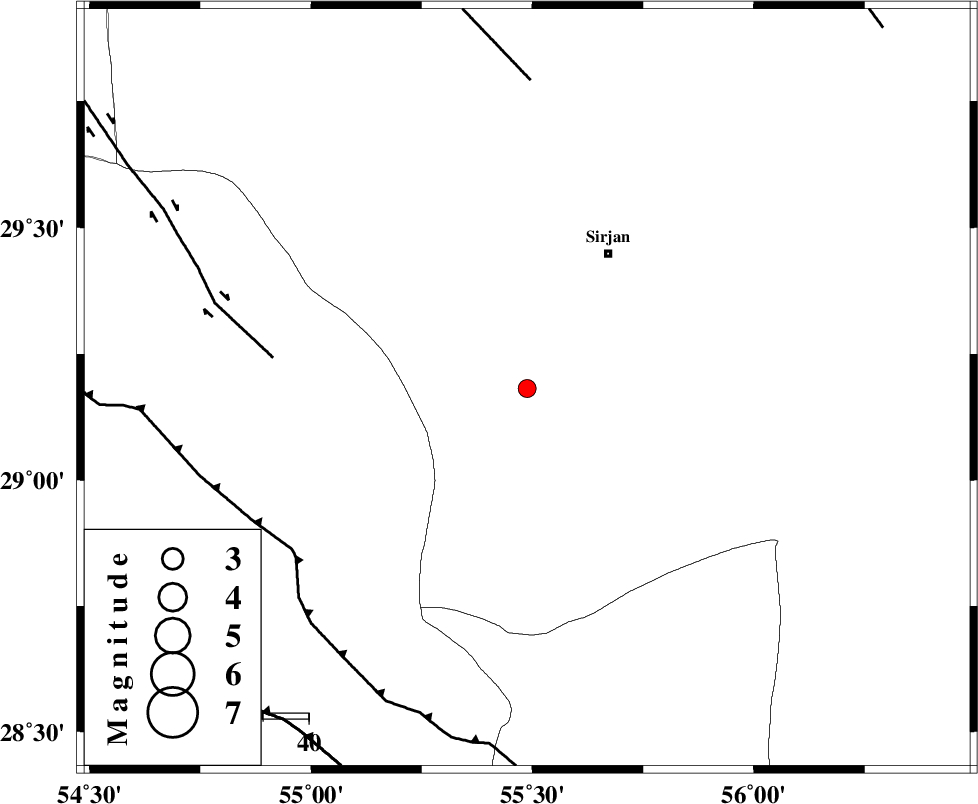

| Location | Lat:29.182 Lon: 55.488 |
| Region | Kerman Province, 34 km South-West of Sirjan |
Nearest Cities |
|
| 32 km South West of Najafabad, Kerman Province | |
| 32 km South West of Sharifabad, Kerman Province | |
| 34 km South West of Sirjan, Kerman Province | |
| 35 km West of Malekabad, Kerman Province | |
| 41 km South West of Mahmud Abad, Kerman Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| SHAHR_E_BABAK_F1 (Length: 392 km) , Distance to epicenter: 56 km | |
| MAIN_ZAGROS_R_F (Length: 1106 km) , Distance to epicenter: 63 km | |
| SHAHR_E_BABAK_F2 (Length: 272 km) , Distance to epicenter: 68 km | |
| Number of Phases | 6 |
| RMS | 0.1 |
| Number of Stations | 4 |
| Error in Latitude | >1.2 km |
| Error in Longitude | 3.3 km |
| Error in Depth | 6.1 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 130623 | IIEES | KRBR | E | 102.8 | 0.61 | 2018-04-20 10:47:23 | 2018-04-22 10:49:00 | n |
| 130624 | IIEES | KRBR | N | 70.6 | 0.5 | 2018-04-20 10:47:29 | 2018-04-22 10:49:00 | n |
| 130625 | IIEES | BNDS | N | 29.9 | 0.37 | 2018-04-20 10:47:36 | 2018-04-22 10:49:00 | n |
| 130626 | IIEES | BNDS | E | 35.6 | 0.45 | 2018-04-20 10:47:42 | 2018-04-22 10:49:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | KRBR | Z | Pg | E | 2018-04-20 10:46:58 | -0.12 | y | 152 | 54 | |||
| IIEES | KRBR | N | Sg | E | 2018-04-20 10:47:17 | 0.05 | y | 152 | 54 | |||
| IIEES | BNDS | Z | Pn | E | 2018-04-20 10:47:07 | 0.15 | y | 209 | 161 | |||
| IIEES | BNDS | N | Sg | E | 2018-04-20 10:47:32 | -0.02 | y | 209 | 161 | |||
| IIEES | GHIR | Z | Pn | E | 2018-04-20 10:47:13 | -0.13 | y | 264 | 248 | |||
| IIEES | YZKH | Z | Pn | E | 2018-04-20 10:47:26 | 0.09 | y | 366 | 347 | |||
