Magnitude |
:4.3 |
| Date & Time (UTC) | 2018-04-22 12:35:44.8 |
| Date & Time (Local) | 1397/2/2 17:05:44.8 |

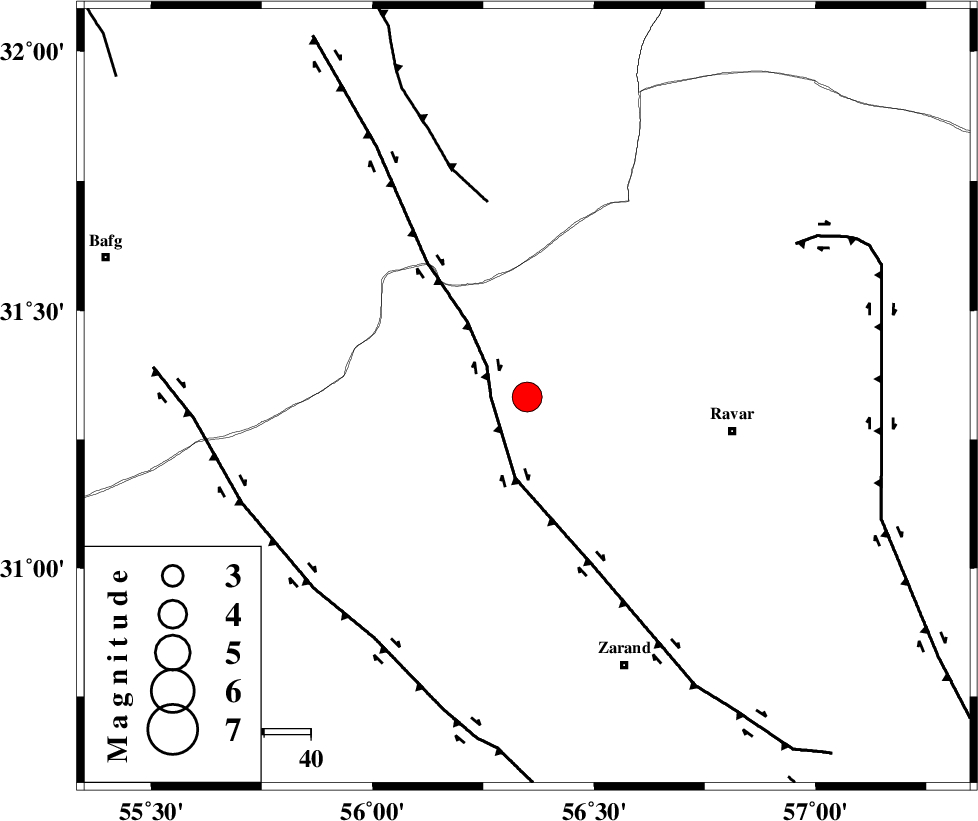

| Location | Lat:31.332 Lon: 56.349 |
| Region | Kerman Province, 45 km -West of Ravar |
Nearest Cities |
|
| 7 km of Jor, Kerman Province | |
| 11 km of Kuhbanan, Kerman Province | |
| 21 km North of Toghroljerd, Kerman Province | |
| 36 km North West of Dasht-e khak, Kerman Province | |
| 38 km South East of Basab, Yazd Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| KUHBANAN_F (Length: 189 km) , Distance to epicenter: 8 km | |
| JAFARABAD_F (Length: 60 km) , Distance to epicenter: 43 km | |
| DARIVAN_F (Length: 131 km) , Distance to epicenter: 62 km | |
| Number of Phases | 27 |
| RMS | 0.7 |
| Number of Stations | 25 |
| Error in Latitude | >3.3 km |
| Error in Longitude | 4.2 km |
| Error in Depth | 6.6 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 130638 | IIEES | YZKH | N | 3041.2 | 0.43 | 2018-04-22 12:36:49 | 2018-04-23 05:40:00 | n |
| 130639 | IIEES | YZKH | E | 2496.6 | 0.48 | 2018-04-22 12:36:49 | 2018-04-23 05:40:00 | n |
| 130640 | IIEES | NASN | N | 469.2 | 0.52 | 2018-04-22 12:37:41 | 2018-04-23 05:40:00 | n |
| 130641 | IIEES | BNDS | N | 368.7 | 0.86 | 2018-04-22 12:38:02 | 2018-04-23 05:40:00 | n |
| 130642 | IIEES | SHRO | N | 171.9 | 0.74 | 2018-04-22 12:38:30 | 2018-04-23 05:40:00 | n |
| 130643 | IIEES | AHRM | N | 83.5 | 0.68 | 2018-04-22 12:38:44 | 2018-04-23 05:40:00 | n |
| 130644 | IIEES | GHVR | E | 137.2 | 0.53 | 2018-04-22 12:38:48 | 2018-04-23 05:40:00 | n |
| 130645 | IIEES | GHVR | N | 78.7 | 0.61 | 2018-04-22 12:38:58 | 2018-04-23 05:40:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | KRBR | Z | Pg | E | 2018-04-22 12:36:10 | -0.41 | y | 155 | 165 | |||
| IIEES | YZKH | Z | Pn | E | 2018-04-22 12:36:17 | -0.45 | y | 203 | 306 | |||
| IIEES | YZKH | N | Sg | E | 2018-04-22 12:36:42 | -0.55 | y | 203 | 306 | |||
| IIEES | TABS | Z | Pn | E | 2018-04-22 12:36:25 | 0.1 | y | 267 | 16 | |||
| IIEES | TABS | N | Sg | E | 2018-04-22 12:37:00 | 0 | y | 267 | 16 | |||
| IIEES | BSRN | Z | Pn | E | 2018-04-22 12:36:25 | -0.84 | y | 273 | 74 | |||
| IIEES | NASN | Z | Pn | E | 2018-04-22 12:36:38 | -0.56 | y | 372 | 297 | |||
| IIEES | BNDS | Z | Pn | E | 2018-04-22 12:36:48 | 1.46 | y | 436 | 182 | |||
| IIEES | SHRT | Z | Pn | E | 2018-04-22 12:36:48 | 0.37 | y | 451 | 54 | |||
| IIEES | ZHSF | Z | Pn | E | 2018-04-22 12:36:50 | -0.29 | y | 466 | 113 | |||
| IIEES | SHRO | Z | Pn | E | 2018-04-22 12:36:56 | -0.22 | y | 520 | 357 | |||
| IIEES | AHRM | Z | Pn | E | 2018-04-22 12:37:00 | -0.85 | y | 558 | 242 | |||
| IIEES | GHVR | Z | Pn | E | 2018-04-22 12:37:06 | 0.39 | y | 591 | 308 | |||
| IIEES | DAMV | Z | Pn | E | 2018-04-22 12:37:10 | 0.16 | y | 627 | 321 | |||
| IIEES | KHMZ | Z | Pn | E | 2018-04-22 12:37:15 | 1.12 | y | 656 | 296 | |||
| IIEES | ASAO | Z | Pn | E | 2018-04-22 12:37:19 | 1.02 | y | 690 | 303 | |||
| IIEES | MRVT | Z | Pn | E | 2018-04-22 12:37:19 | 0.09 | y | 702 | 358 | |||
| IIEES | CHTH | Z | Pn | E | 2018-04-22 12:37:20 | 0.43 | y | 702 | 318 | |||
| IIEES | BJRD | Z | Pn | E | 2018-04-22 12:37:21 | 0.76 | y | 713 | 8 | |||
| IIEES | THKV | Z | Pn | E | 2018-04-22 12:37:22 | 0.9 | y | 718 | 317 | |||
| IIEES | CHBR | Z | Pn | E | 2018-04-22 12:37:25 | -0.09 | y | 753 | 147 | |||
| IIEES | GIDE | Z | Pn | E | 2018-04-22 12:37:39 | 0.44 | y | 858 | 318 | |||
| IIEES | SNGE | Z | Pn | E | 2018-04-22 12:37:49 | 1.01 | y | 937 | 299 | |||
| IIEES | ILBA | Z | Pn | E | 2018-04-22 12:37:52 | -2.32 | y | 986 | 288 | |||
| IIEES | GRMI | Z | Pn | E | 2018-04-22 12:38:13 | -0.04 | y | 1132 | 319 | |||
| IIEES | SRSL | Z | Pn | E | 2018-04-22 12:38:14 | -0.12 | y | 1146 | 301 | |||
| IIEES | MAKU | Z | Pn | E | 2018-04-22 12:38:44 | -0.08 | y | 1383 | 313 | |||
