Magnitude |
:2.9 |
| Date & Time (UTC) | 2018-04-23 00:26:09.0 |
| Date & Time (Local) | 1397/2/3 04:56:09.0 |

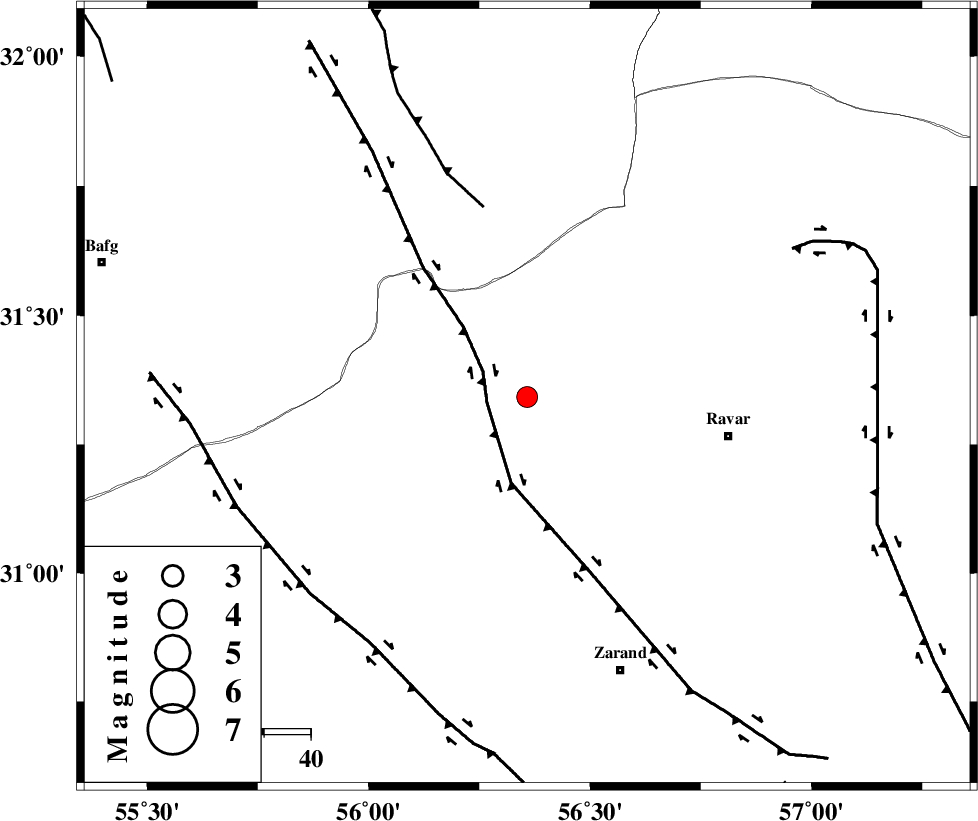

| Location | Lat:31.342 Lon: 56.358 |
| Region | Kerman Province, 44 km -West of Ravar |
Nearest Cities |
|
| 7 km of Jor, Kerman Province | |
| 10 km of Kuhbanan, Kerman Province | |
| 22 km North of Toghroljerd, Kerman Province | |
| 37 km North West of Dasht-e khak, Kerman Province | |
| 38 km South East of Basab, Yazd Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| KUHBANAN_F (Length: 189 km) , Distance to epicenter: 9 km | |
| JAFARABAD_F (Length: 60 km) , Distance to epicenter: 42 km | |
| DARIVAN_F (Length: 131 km) , Distance to epicenter: 63 km | |
| Number of Phases | 13 |
| RMS | 0.5 |
| Number of Stations | 11 |
| Error in Latitude | >3.8 km |
| Error in Longitude | 3.1 km |
| Error in Depth | 7.6 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 130692 | IIEES | KRBR | E | 124.4 | 0.36 | 2018-04-23 00:27:02 | 2018-04-23 06:28:00 | n |
| 130693 | IIEES | YZKH | N | 122.8 | 0.41 | 2018-04-23 00:27:12 | 2018-04-23 06:28:00 | n |
| 130694 | IIEES | YZKH | E | 103.8 | 0.54 | 2018-04-23 00:27:14 | 2018-04-23 06:28:00 | n |
| 130695 | IIEES | TABS | N | 35.7 | 0.47 | 2018-04-23 00:27:40 | 2018-04-23 06:28:00 | n |
| 130696 | IIEES | SHRO | E | 7.4 | 0.35 | 2018-04-23 00:28:50 | 2018-04-23 06:28:00 | n |
| 130697 | IIEES | SHRO | N | 8.3 | 0.5 | 2018-04-23 00:28:56 | 2018-04-23 06:28:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | KRBR | Z | Pg | E | 2018-04-23 00:26:34 | -0.44 | y | 156 | 166 | |||
| IIEES | YZKH | Z | Pn | E | 2018-04-23 00:26:42 | -0.17 | y | 204 | 305 | |||
| IIEES | YZKH | N | Sg | E | 2018-04-23 00:27:06 | -0.72 | y | 204 | 305 | |||
| IIEES | TABS | Z | Pn | E | 2018-04-23 00:26:50 | 0.46 | y | 266 | 15 | |||
| IIEES | BSRN | Z | Pn | E | 2018-04-23 00:26:50 | 0.12 | y | 271 | 75 | |||
| IIEES | BSRN | N | Sg | E | 2018-04-23 00:27:25 | -0.58 | y | 271 | 75 | |||
| IIEES | NASN | Z | Pn | E | 2018-04-23 00:27:03 | -0.08 | y | 372 | 297 | |||
| IIEES | SHRT | Z | Pn | E | 2018-04-23 00:27:12 | 0.21 | y | 449 | 54 | |||
| IIEES | ZHSF | Z | Pn | E | 2018-04-23 00:27:14 | 0.23 | y | 465 | 113 | |||
| IIEES | GHIR | Z | Pn | E | 2018-04-23 00:27:15 | 0.46 | y | 470 | 225 | |||
| IIEES | SHRO | Z | Pn | E | 2018-04-23 00:27:21 | 0.12 | y | 519 | 357 | |||
| IIEES | ASAO | Z | Pn | E | 2018-04-23 00:27:43 | 1.01 | y | 691 | 303 | |||
| IIEES | MRVT | Z | Pn | E | 2018-04-23 00:27:44 | 0.51 | y | 701 | 358 | |||
