Magnitude |
:2.6 |
| Date & Time (UTC) | 2018-04-23 07:54:44.2 |
| Date & Time (Local) | 1397/2/3 12:24:44.2 |

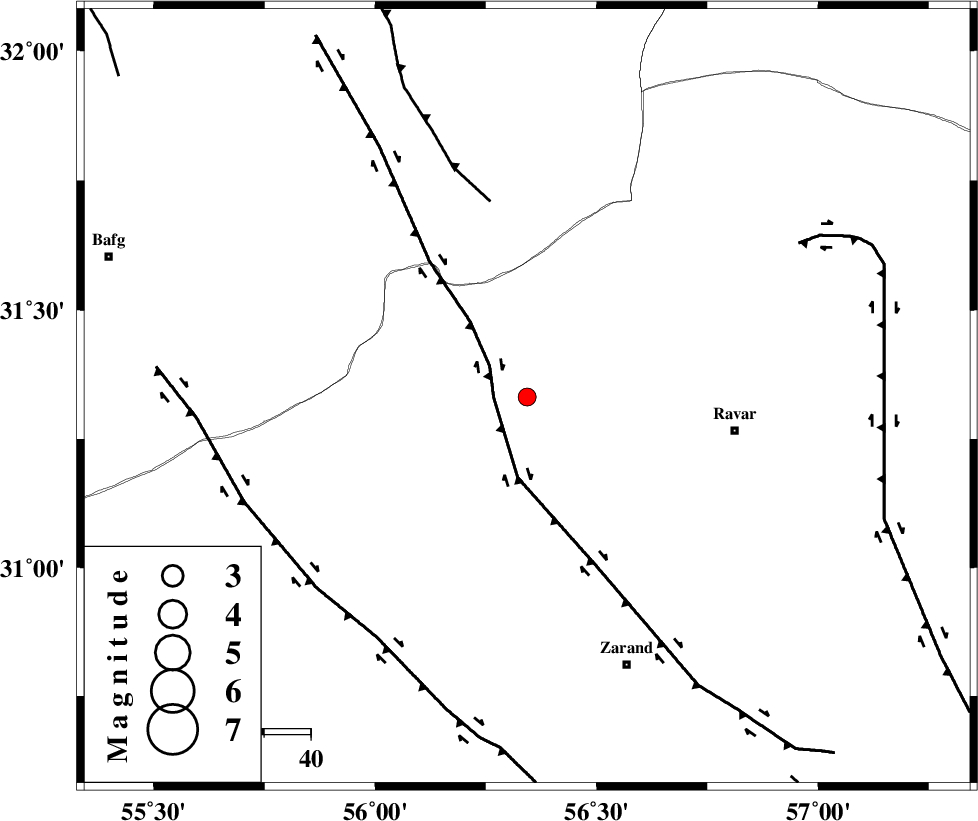

| Location | Lat:31.331 Lon: 56.343 |
| Region | Kerman Province, 45 km -West of Ravar |
Nearest Cities |
|
| 7 km of Jor, Kerman Province | |
| 11 km of Kuhbanan, Kerman Province | |
| 21 km North of Toghroljerd, Kerman Province | |
| 37 km North West of Dasht-e khak, Kerman Province | |
| 38 km South East of Basab, Yazd Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| KUHBANAN_F (Length: 189 km) , Distance to epicenter: 7 km | |
| JAFARABAD_F (Length: 60 km) , Distance to epicenter: 43 km | |
| DARIVAN_F (Length: 131 km) , Distance to epicenter: 61 km | |
| Number of Phases | 6 |
| RMS | 0.3 |
| Number of Stations | 4 |
| Error in Latitude | >3.7 km |
| Error in Longitude | 2.6 km |
| Error in Depth | 6.8 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 130716 | IIEES | YZKH | E | 79.6 | 0.3 | 2018-04-23 07:55:47 | 2018-04-24 05:55:00 | n |
| 130717 | IIEES | YZKH | N | 70.8 | 0.56 | 2018-04-23 07:55:49 | 2018-04-24 05:55:00 | n |
| 130718 | IIEES | BSRN | N | 16.4 | 0.36 | 2018-04-23 07:56:12 | 2018-04-24 05:55:00 | n |
| 130719 | IIEES | NASN | N | 7 | 0.43 | 2018-04-23 07:56:33 | 2018-04-24 05:55:00 | n |
| 130720 | IIEES | NASN | E | 7.3 | 0.53 | 2018-04-23 07:56:38 | 2018-04-24 05:55:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | KRBR | Z | Pg | E | 2018-04-23 07:55:09 | -0.22 | y | 155 | 165 | |||
| IIEES | YZKH | Z | Pn | E | 2018-04-23 07:55:17 | 0.21 | y | 203 | 306 | |||
| IIEES | YZKH | N | Sg | E | 2018-04-23 07:55:41 | -0.43 | y | 203 | 306 | |||
| IIEES | BSRN | Z | Pn | E | 2018-04-23 07:55:26 | 0.18 | y | 273 | 74 | |||
| IIEES | BSRN | N | Sg | E | 2018-04-23 07:56:01 | -0.15 | y | 273 | 74 | |||
| IIEES | NASN | Z | Pn | E | 2018-04-23 07:55:38 | 0.49 | y | 371 | 297 | |||
