Magnitude |
:2.6 |
| Date & Time (UTC) | 2018-04-27 17:13:29.1 |
| Date & Time (Local) | 1397/2/7 21:43:29.1 |

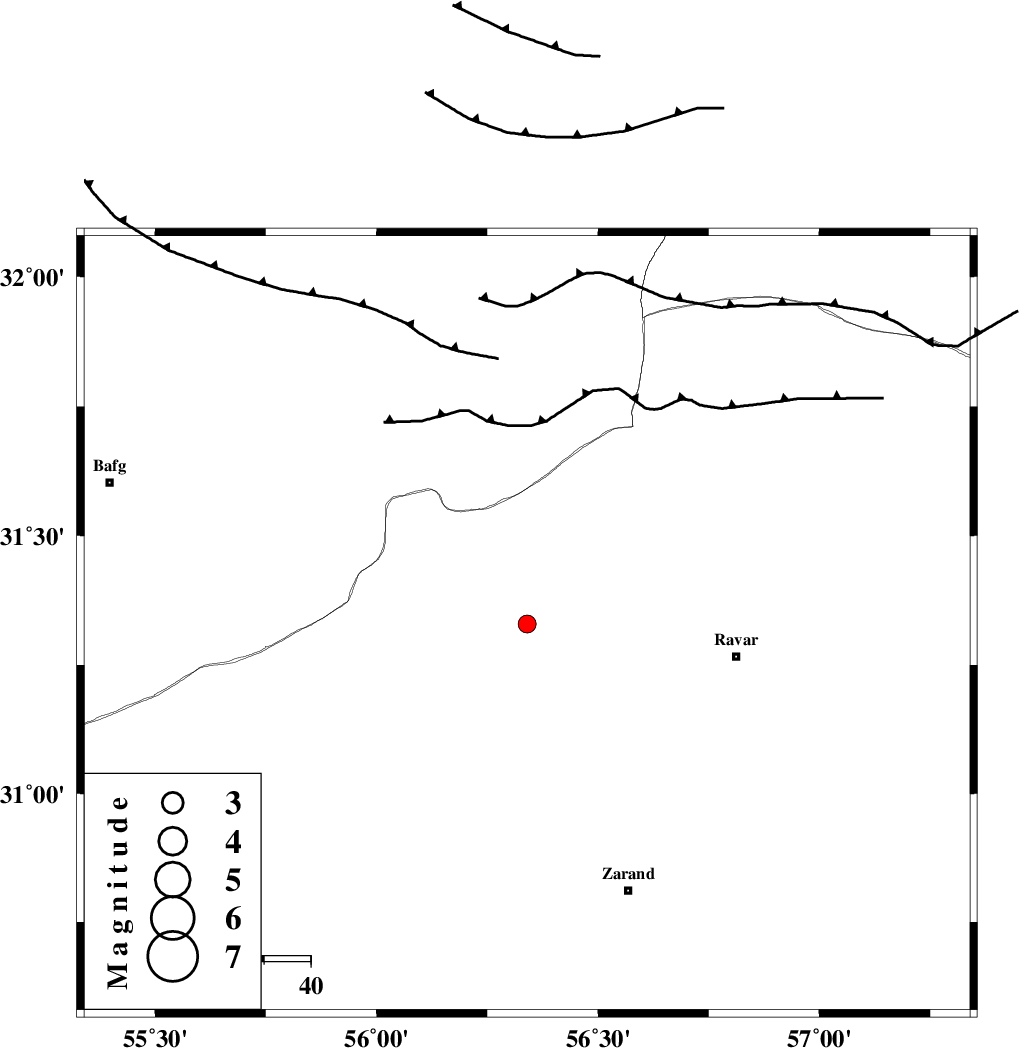

| Location | Lat:31.329 Lon: 56.34 |
| Region | Kerman Province, 45 km -West of Ravar |
Nearest Cities |
|
| 6 km of Jor, Kerman Province | |
| 11 km of Kuhbanan, Kerman Province | |
| 21 km North of Toghroljerd, Kerman Province | |
| 37 km North West of Dasht-e khak, Kerman Province | |
| 37 km South East of Basab, Yazd Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| KUHBANAN_F (Length: 189 km) , Distance to epicenter: 7 km | |
| JAFARABAD_F (Length: 60 km) , Distance to epicenter: 43 km | |
| DARIVAN_F (Length: 131 km) , Distance to epicenter: 61 km | |
| Number of Phases | 7 |
| RMS | 0.4 |
| Number of Stations | 5 |
| Error in Latitude | >4.9 km |
| Error in Longitude | 3.5 km |
| Error in Depth | 9 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 130793 | IIEES | YZKH | N | 55 | 0.4 | 2018-04-27 17:14:30 | 2018-04-28 04:22:00 | n |
| 130794 | IIEES | YZKH | E | 69 | 0.36 | 2018-04-27 17:14:33 | 2018-04-28 04:22:00 | n |
| 130795 | IIEES | NASN | E | 6.5 | 0.34 | 2018-04-27 17:15:20 | 2018-04-28 04:22:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | KRBR | Z | Pg | E | 2018-04-27 17:13:55 | 0.03 | y | 155 | 165 | |||
| IIEES | YZKH | Z | Pn | E | 2018-04-27 17:14:01 | -0.58 | y | 203 | 306 | |||
| IIEES | YZKH | N | Sg | E | 2018-04-27 17:14:26 | -0.22 | y | 203 | 306 | |||
| IIEES | TABS | Z | Pn | E | 2018-04-27 17:14:10 | 0.57 | y | 267 | 16 | |||
| IIEES | BSRN | Z | Pn | E | 2018-04-27 17:14:10 | -0.3 | y | 273 | 74 | |||
| IIEES | BSRN | N | Sg | E | 2018-04-27 17:14:46 | -0.1 | y | 273 | 74 | |||
| IIEES | NASN | Z | Pn | E | 2018-04-27 17:14:23 | 0.74 | y | 371 | 297 | |||
