Magnitude |
:2.6 |
| Date & Time (UTC) | 2018-05-06 18:37:03.1 |
| Date & Time (Local) | 1397/2/16 23:07:03.1 |

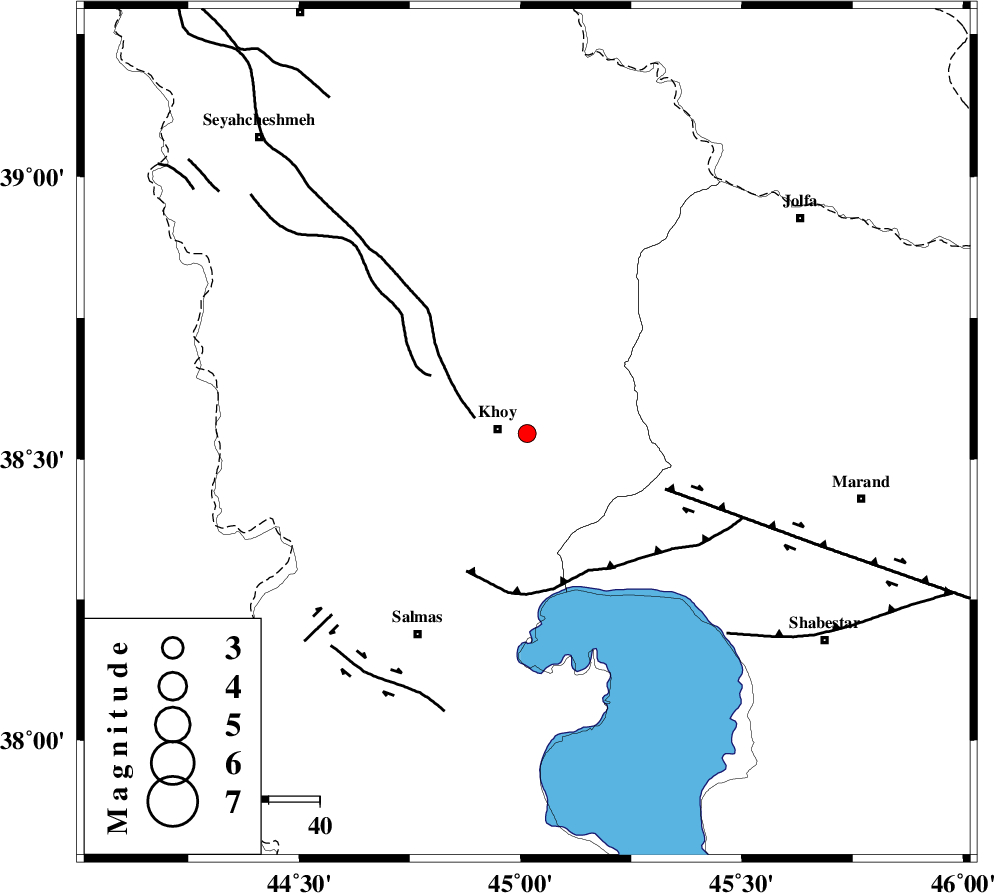

| Location | Lat:38.545 Lon: 45.015 |
| Region | Azarbaijan Gharbi Province, 6 km of Khoy |
Nearest Cities |
|
| 2 km of Saeedabad, Azarbaijan Gharbi Province | |
| 6 km of Khoy, Azarbaijan Gharbi Province | |
| 9 km North of Dizaj diz, Azarbaijan Gharbi Province | |
| 13 km South of Dizaj, Azarbaijan Gharbi Province | |
| 13 km North of Quruq, Azarbaijan Gharbi Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| KHOY (Length: 100 km) , Distance to epicenter: 11 km | |
| N_TABRIZ_F1 (Length: 222 km) , Distance to epicenter: 29 km | |
| N_TABRIZ_F3 (Length: 66 km) , Distance to epicenter: 30 km | |
| Number of Phases | 7 |
| RMS | 0.2 |
| Number of Stations | 5 |
| Error in Latitude | >2.9 km |
| Error in Longitude | 2.5 km |
| Error in Depth | 7.1 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 131251 | IIEES | MAKU | E | 150.4 | 0.17 | 2018-05-06 18:37:32 | 2018-05-07 05:15:00 | n |
| 131252 | IIEES | MAKU | N | 236.9 | 0.25 | 2018-05-06 18:37:32 | 2018-05-07 05:15:00 | n |
| 131253 | IIEES | GRMI | N | 24.8 | 0.4 | 2018-05-06 18:38:18 | 2018-05-07 05:15:00 | n |
| 131254 | IIEES | GRMI | E | 37.4 | 0.34 | 2018-05-06 18:38:18 | 2018-05-07 05:15:00 | n |
| 131255 | IIEES | SRSL | N | 20 | 0.65 | 2018-05-06 18:38:27 | 2018-05-07 05:15:00 | n |
| 131256 | IIEES | SNGE | N | 6.1 | 0.9 | 2018-05-06 18:39:26 | 2018-05-07 05:15:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | MAKU | Z | Pg | E | 2018-05-06 18:37:19 | -0.02 | y | 94.3 | 342 | |||
| IIEES | MAKU | N | Sg | E | 2018-05-06 18:37:31 | -0.03 | y | 94.3 | 342 | |||
| IIEES | GRMI | Z | Pn | E | 2018-05-06 18:37:42 | 0.21 | y | 252 | 82 | |||
| IIEES | GRMI | N | Sg | E | 2018-05-06 18:38:14 | -0.04 | y | 252 | 82 | |||
| IIEES | SRSL | Z | Pn | E | 2018-05-06 18:37:43 | 0.17 | y | 262 | 172 | |||
| IIEES | ZNJK | Z | Pn | E | 2018-05-06 18:37:58 | -0.1 | y | 385 | 122 | |||
| IIEES | SNGE | Z | Pn | E | 2018-05-06 18:38:04 | -0.28 | y | 436 | 151 | |||
