Magnitude |
:3.9 |
| Date & Time (UTC) | 2018-05-07 14:18:25.9 |
| Date & Time (Local) | 1397/2/17 18:48:25.9 |
| Location | Lat:33.709 Lon: 48.913 |
| Region | Lorestan Province, 25 km South-East of Borujerd |
Nearest Cities |
|
| 6 km North of Chalanchulan, Lorestan Province | |
| 12 km North of Kagheh, Lorestan Province | |
| 16 km North of Razan, Lorestan Province | |
| 17 km West of Hashian, Markazi Province | |
| 18 km South East of Hemmatabad, Lorestan Province | |
| Depth | 15 km |
| Agency | |

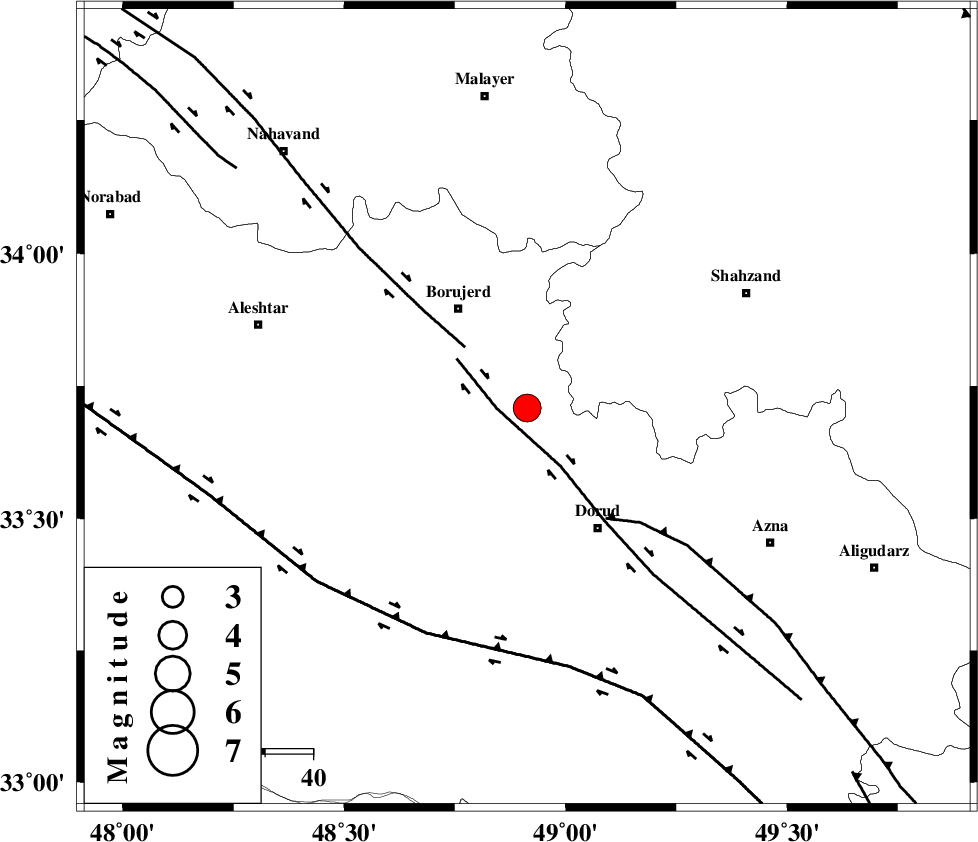

Faults within 150 km: |
|
| DORUD (Length: 100 km) , Distance to epicenter: 6 km | |
| NAHAVAND_F (Length: 102 km) , Distance to epicenter: 18 km | |
| MAIN_ZAGROS_R_F (Length: 1106 km) , Distance to epicenter: 28 km | |
| Number of Phases | 16 |
| RMS | 0.6 |
| Number of Stations | 16 |
| Error in Latitude | >6.7 km |
| Error in Longitude | 6.4 km |
| Error in Depth | 9.7 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 131299 | IIEES | ASAO | E | 2114.1 | 0.5 | 2018-05-07 14:19:10 | 2018-05-08 04:46:00 | n |
| 131300 | IIEES | ASAO | N | 1887.6 | 0.5 | 2018-05-07 14:19:12 | 2018-05-08 04:46:00 | n |
| 131301 | IIEES | SNGE | N | 892.5 | 0.55 | 2018-05-07 14:19:32 | 2018-05-08 04:46:00 | n |
| 131302 | IIEES | GHVR | E | 741.9 | 0.62 | 2018-05-07 14:19:38 | 2018-05-08 04:46:00 | n |
| 131303 | IIEES | ILBA | N | 716.9 | 0.7 | 2018-05-07 14:19:46 | 2018-05-08 04:46:00 | n |
| 131304 | IIEES | ILBA | E | 559.6 | 0.7 | 2018-05-07 14:19:53 | 2018-05-08 04:46:00 | n |
| 131305 | IIEES | THKV | N | 381.3 | 0.61 | 2018-05-07 14:19:55 | 2018-05-08 04:46:00 | n |
| 131306 | IIEES | THKV | E | 373.2 | 0.61 | 2018-05-07 14:19:57 | 2018-05-08 04:46:00 | n |
| 131307 | IIEES | DAMV | N | 182.4 | 0.5 | 2018-05-07 14:20:20 | 2018-05-08 04:46:00 | n |
| 131308 | IIEES | DAMV | E | 151.6 | 0.66 | 2018-05-07 14:20:22 | 2018-05-08 04:46:00 | n |
| 131309 | IIEES | GIDE | E | 274.4 | 0.66 | 2018-05-07 14:20:21 | 2018-05-08 04:46:00 | n |
| 131310 | IIEES | GIDE | N | 218.1 | 0.74 | 2018-05-07 14:20:27 | 2018-05-08 04:46:00 | n |
| 131311 | IIEES | SRSL | E | 107.7 | 0.37 | 2018-05-07 14:20:37 | 2018-05-08 04:46:00 | n |
| 131312 | IIEES | AHRM | N | 40.5 | 0.74 | 2018-05-07 14:20:51 | 2018-05-08 04:46:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | KHMZ | Z | Pg | E | 2018-05-07 14:18:41 | -0.88 | y | 97.4 | 88 | |||
| IIEES | ASAO | Z | Pg | E | 2018-05-07 14:18:48 | -0.67 | y | 139 | 47 | |||
| IIEES | SNGE | Z | Pn | E | 2018-05-07 14:18:59 | -0.57 | y | 210 | 317 | |||
| IIEES | GHVR | Z | Pn | E | 2018-05-07 14:19:02 | 0.04 | y | 232 | 68 | |||
| IIEES | ILBA | Z | Pn | E | 2018-05-07 14:19:04 | -0.32 | y | 251 | 269 | |||
| IIEES | THKV | Z | Pn | E | 2018-05-07 14:19:11 | -0.05 | y | 304 | 36 | |||
| IIEES | CHTH | Z | Pn | E | 2018-05-07 14:19:13 | 0.24 | y | 317 | 39 | |||
| IIEES | ZNJK | Z | Pn | E | 2018-05-07 14:19:16 | 1.6 | y | 329 | 356 | |||
| IIEES | DAMV | Z | Pn | E | 2018-05-07 14:19:17 | 0.31 | y | 352 | 52 | |||
| IIEES | GIDE | Z | Pn | E | 2018-05-07 14:19:18 | -0.47 | y | 368 | 14 | |||
| IIEES | NASN | Z | Pn | E | 2018-05-07 14:19:21 | 0.62 | y | 377 | 104 | |||
| IIEES | SRSL | Z | Pn | E | 2018-05-07 14:19:26 | 0.06 | y | 422 | 312 | |||
| IIEES | YZKH | Z | Pn | E | 2018-05-07 14:19:42 | -0.01 | y | 550 | 104 | |||
| IIEES | GRMI | Z | Pn | E | 2018-05-07 14:19:44 | -0.26 | y | 573 | 351 | |||
| IIEES | AHRM | Z | Pn | E | 2018-05-07 14:19:46 | 0.36 | y | 583 | 156 | |||
| IIEES | SHRO | Z | Pn | E | 2018-05-07 14:20:00 | 0.77 | y | 697 | 67 | |||
