Magnitude |
:2.6 |
| Date & Time (UTC) | 2018-05-10 11:40:08.5 |
| Date & Time (Local) | 1397/2/20 16:10:08.5 |

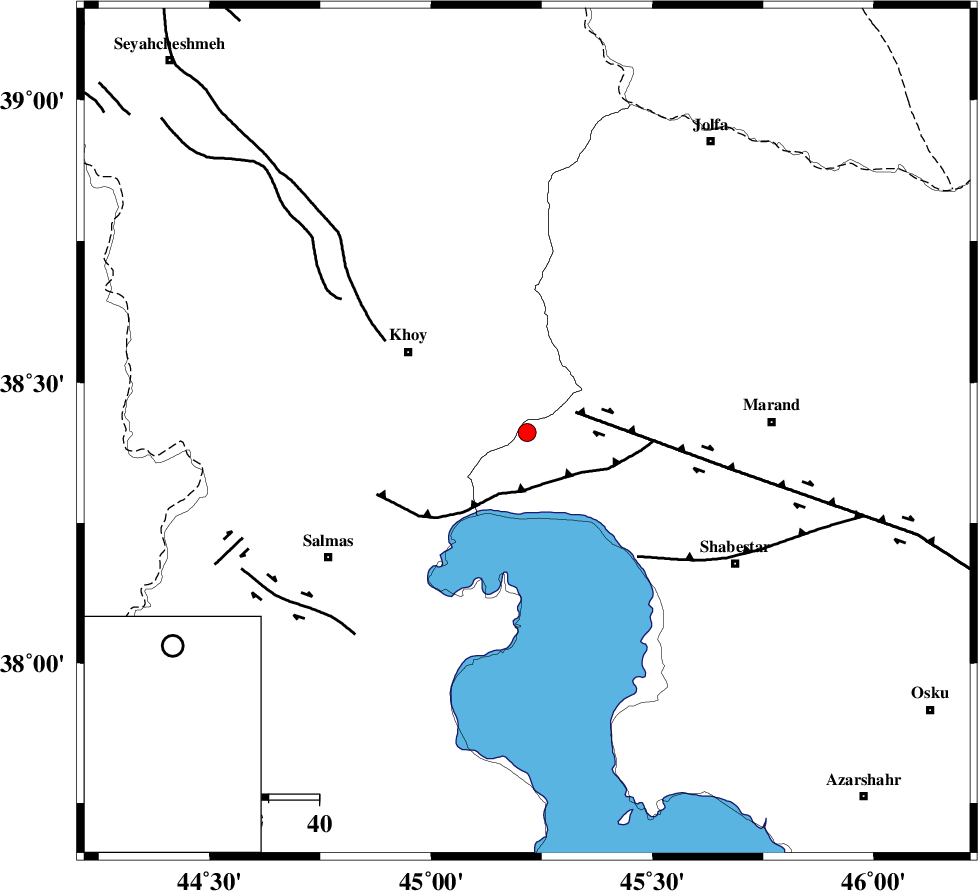

| Location | Lat:38.411 Lon: 45.217 |
| Region | Azarbaijan Sharghi Province, 28 km South-East of Khoy |
Nearest Cities |
|
| 9 km North of Jahregan, Azarbaijan Sharghi Province | |
| 17 km East of Dizaj diz, Azarbaijan Gharbi Province | |
| 18 km North West of Tasuj, Azarbaijan Sharghi Province | |
| 24 km South East of Saeedabad, Azarbaijan Gharbi Province | |
| 26 km East of Quruq, Azarbaijan Gharbi Province | |
| Depth | 18 km |
| Agency | |
Faults within 150 km: |
|
| N_TABRIZ_F1 (Length: 222 km) , Distance to epicenter: 10 km | |
| N_TABRIZ_F3 (Length: 66 km) , Distance to epicenter: 11 km | |
| N_TABRIZ_F2 (Length: 52 km) , Distance to epicenter: 33 km | |
| Number of Phases | 6 |
| RMS | 0.2 |
| Number of Stations | 4 |
| Error in Latitude | >3.9 km |
| Error in Longitude | 2.7 km |
| Error in Depth | 8.3 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 131407 | IIEES | MAKU | N | 141.7 | 0.22 | 2018-05-10 11:40:42 | 2018-05-12 08:25:00 | n |
| 131408 | IIEES | MAKU | E | 142.4 | 0.26 | 2018-05-10 11:40:43 | 2018-05-12 08:25:00 | n |
| 131409 | IIEES | GRMI | E | 38.9 | 0.51 | 2018-05-10 11:41:18 | 2018-05-12 08:25:00 | n |
| 131410 | IIEES | GRMI | N | 24.9 | 0.25 | 2018-05-10 11:41:19 | 2018-05-12 08:25:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | MAKU | Z | Pg | E | 2018-05-10 11:40:27 | 0.05 | y | 115 | 336 | |||
| IIEES | MAKU | N | Sg | E | 2018-05-10 11:40:42 | -0.07 | y | 115 | 336 | |||
| IIEES | GRMI | Z | Pn | E | 2018-05-10 11:40:45 | 0.18 | y | 237 | 78 | |||
| IIEES | GRMI | N | Sg | E | 2018-05-10 11:41:15 | 0.03 | y | 237 | 78 | |||
| IIEES | SRSL | Z | Pn | E | 2018-05-10 11:40:46 | 0.16 | y | 245 | 175 | |||
| IIEES | ZNJK | Z | Pn | E | 2018-05-10 11:41:00 | -0.42 | y | 362 | 121 | |||
