Magnitude |
:2.8 |
| Date & Time (UTC) | 2018-05-12 13:10:21.7 |
| Date & Time (Local) | 1397/2/22 17:40:21.7 |

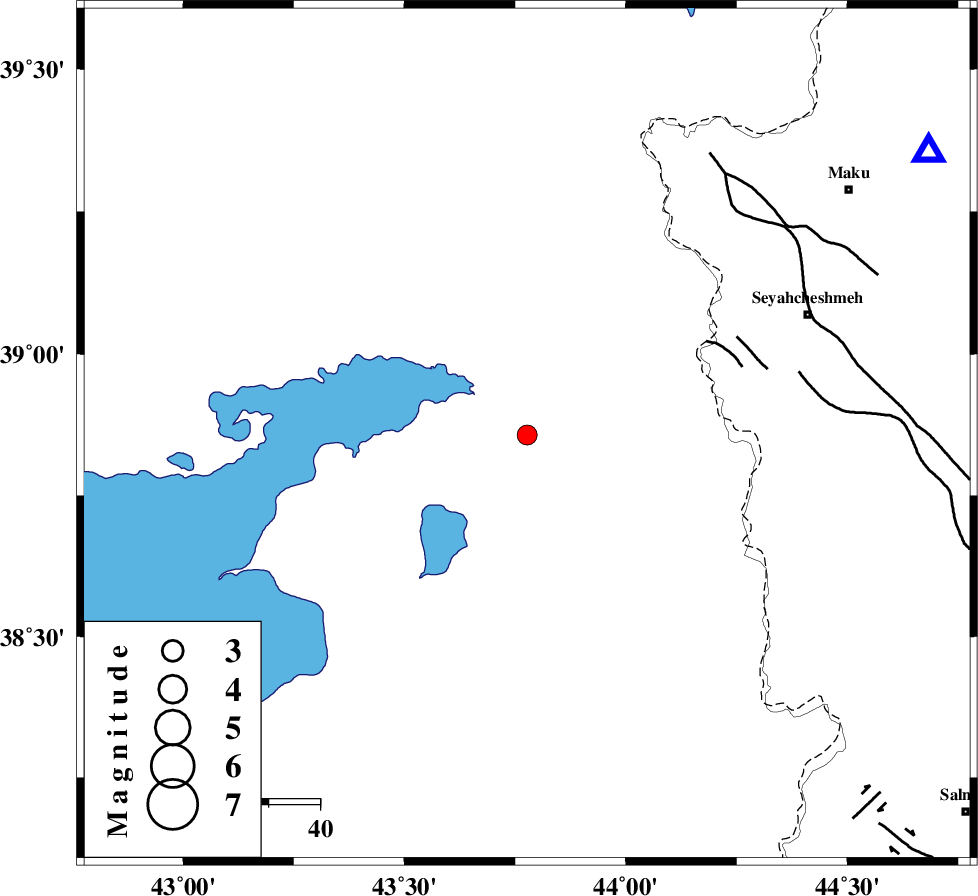

| Location | Lat:38.857 Lon: 43.777 |
| Region | Turkey, 60 km South-West of Seyah Cheshmah |
Nearest Cities |
|
| 46 km South West of Sheykh selu-e paein, Azarbaijan Gharbi Province | |
| 48 km South West of Sheykh selu-e bala, Azarbaijan Gharbi Province | |
| 59 km South West of Zavieh, Azarbaijan Gharbi Province | |
| 60 km South West of Seyah Cheshmah, Azarbaijan Gharbi Province | |
| 64 km South West of Arab dizaj, Azarbaijan Gharbi Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| KHOY (Length: 100 km) , Distance to epicenter: 40 km | |
| SALMAS (Length: 20 km) , Distance to epicenter: 99 km | |
| N_TABRIZ_F3 (Length: 66 km) , Distance to epicenter: 114 km | |
| Number of Phases | 7 |
| RMS | 0.1 |
| Number of Stations | 5 |
| Error in Latitude | >2.5 km |
| Error in Longitude | 3.8 km |
| Error in Depth | 6 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 131535 | IIEES | SRSL | E | 24.1 | 0.32 | 2018-05-12 13:12:09 | 2018-05-13 07:51:00 | n |
| 131536 | IIEES | SRSL | N | 27 | 0.64 | 2018-05-12 13:12:10 | 2018-05-13 07:51:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | MAKU | Z | Pg | E | 2018-05-12 13:10:38 | -0.06 | y | 95.9 | 55 | |||
| IIEES | MAKU | N | Sg | E | 2018-05-12 13:10:50 | -0.01 | y | 95.9 | 55 | |||
| IIEES | SRSL | Z | Pn | E | 2018-05-12 13:11:10 | 0.01 | y | 328 | 153 | |||
| IIEES | GRMI | Z | Pn | E | 2018-05-12 13:11:14 | 0.18 | y | 357 | 90 | |||
| IIEES | GRMI | N | Sg | E | 2018-05-12 13:12:01 | -0.01 | y | 357 | 90 | |||
| IIEES | ZNJK | Z | Pn | E | 2018-05-12 13:11:31 | 0 | y | 496 | 118 | |||
| IIEES | SNGE | Z | Pn | E | 2018-05-12 13:11:34 | -0.13 | y | 525 | 142 | |||
