Magnitude |
:3.4 |
| Date & Time (UTC) | 2018-05-17 08:46:55.3 |
| Date & Time (Local) | 1397/2/27 13:16:55.3 |

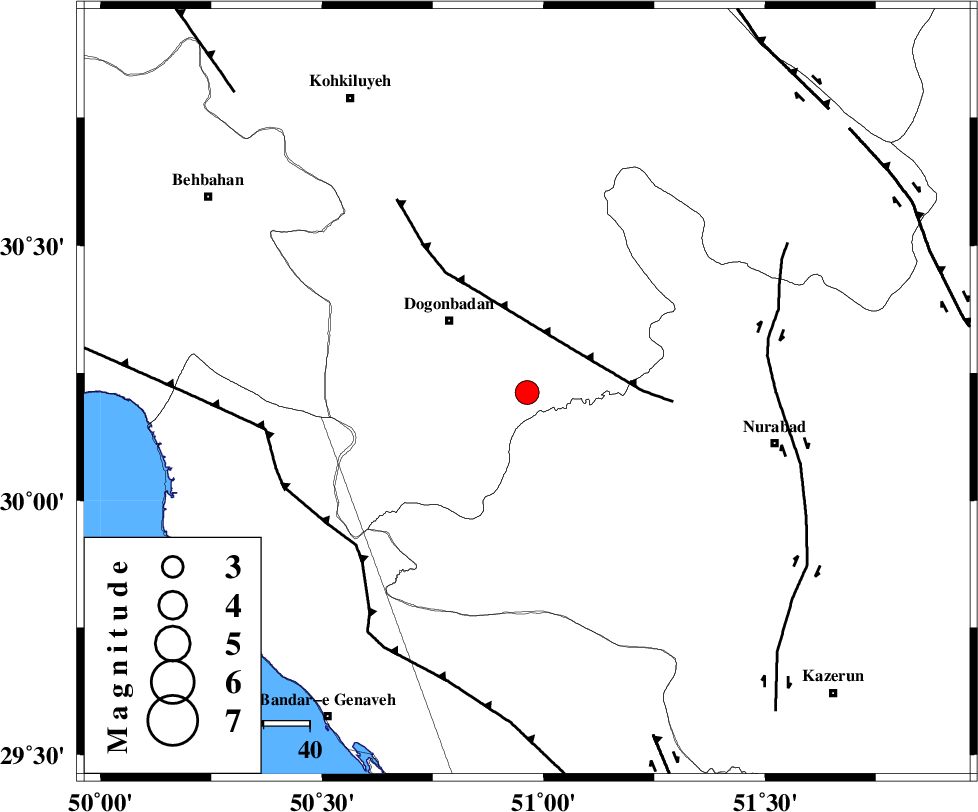

| Location | Lat:30.212 Lon: 50.963 |
| Region | Kohkiluieh va boyerahmad Province, 23 km South-East of Dogonbadan |
Nearest Cities |
|
| 23 km South East of Dogonbadan, Kohkiluieh va boyerahmad Province | |
| 25 km South West of Basht, Kohkiluieh va boyerahmad Province | |
| 28 km South of Abdehgah, Kohkiluieh va boyerahmad Province | |
| 28 km North West of Babamonir, Fars Province | |
| 35 km South West of Kopon olia, Fars Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| MISHAN_F (Length: 76 km) , Distance to epicenter: 14 km | |
| ZFF3 (Length: 125 km) , Distance to epicenter: 50 km | |
| KAZERUN_F (Length: 96 km) , Distance to epicenter: 53 km | |
| Number of Phases | 11 |
| RMS | 0.2 |
| Number of Stations | 9 |
| Error in Latitude | >3.4 km |
| Error in Longitude | 5.3 km |
| Error in Depth | 9.6 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 131763 | IIEES | AHRM | E | 504 | 0.5 | 2018-05-17 08:47:45 | 2018-05-19 05:04:00 | n |
| 131764 | IIEES | AHRM | N | 659.3 | 0.5 | 2018-05-17 08:47:46 | 2018-05-19 05:04:00 | n |
| 131765 | IIEES | KHMZ | N | 37.1 | 0.57 | 2018-05-17 08:48:50 | 2018-05-19 05:04:00 | n |
| 131766 | IIEES | YZKH | E | 40.7 | 0.48 | 2018-05-17 08:48:43 | 2018-05-19 05:04:00 | n |
| 131767 | IIEES | YZKH | N | 45.1 | 0.38 | 2018-05-17 08:48:46 | 2018-05-19 05:04:00 | n |
| 131768 | IIEES | GHVR | E | 25.1 | 0.54 | 2018-05-17 08:49:01 | 2018-05-19 05:04:00 | n |
| 131769 | IIEES | GHVR | N | 28.2 | 0.48 | 2018-05-17 08:49:03 | 2018-05-19 05:04:00 | n |
| 131770 | IIEES | ASAO | E | 23.1 | 0.49 | 2018-05-17 08:49:00 | 2018-05-19 05:04:00 | n |
| 131771 | IIEES | ASAO | N | 40.6 | 0.62 | 2018-05-17 08:49:01 | 2018-05-19 05:04:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | AHRM | Z | Pg | E | 2018-05-17 08:47:20 | -0.04 | y | 153 | 168 | |||
| IIEES | AHRM | N | Sg | E | 2018-05-17 08:47:39 | 0.12 | y | 153 | 168 | |||
| IIEES | GHIR | Z | Pn | E | 2018-05-17 08:47:38 | -0.25 | y | 290 | 137 | |||
| IIEES | NASN | Z | Pn | E | 2018-05-17 08:47:44 | -0.01 | y | 336 | 31 | |||
| IIEES | KHMZ | Z | Pn | E | 2018-05-17 08:47:52 | -0.27 | y | 402 | 347 | |||
| IIEES | YZKH | Z | Pn | E | 2018-05-17 08:47:55 | 0.42 | y | 421 | 54 | |||
| IIEES | YZKH | N | S | E | 2018-05-17 08:48:39 | -0.11 | y | 421 | 54 | |||
| IIEES | GHVR | Z | Pn | E | 2018-05-17 08:48:02 | 0.2 | y | 474 | 3 | |||
| IIEES | ASAO | Z | Pn | E | 2018-05-17 08:48:04 | 0.15 | y | 489 | 350 | |||
| IIEES | TABS | Z | Pn | E | 2018-05-17 08:48:29 | 0 | y | 696 | 55 | |||
| IIEES | SHRO | Z | Pn | E | 2018-05-17 08:48:41 | -0.27 | y | 797 | 35 | |||
