Magnitude |
:4.2 |
| Date & Time (UTC) | 2018-05-17 19:46:47.3 |
| Date & Time (Local) | 1397/2/28 00:16:47.3 |

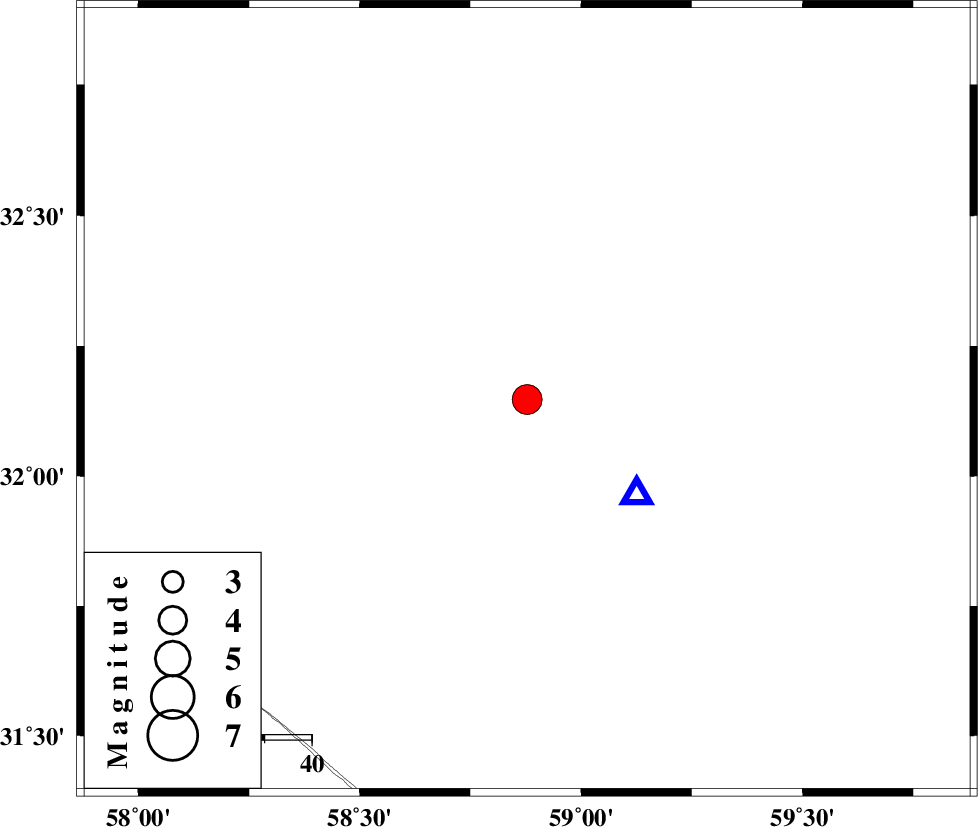

| Location | Lat:32.147 Lon: 58.878 |
| Region | Khorasan(south) Province, 90 km South-West of Birjand |
Nearest Cities |
|
| 37 km South of Hamand, Khorasan(south) Province | |
| 53 km South West of Mazhan, Khorasan(south) Province | |
| 59 km South West of Mokhtaran, Khorasan(south) Province | |
| 66 km South of Bisheh bala, Khorasan(south) Province | |
| 67 km South West of Gaz, Khorasan(south) Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| MOHAMMADABAD_F (Length: 71 km) , Distance to epicenter: 96 km | |
| NOZAD_F (Length: 27 km) , Distance to epicenter: 125 km | |
| W_NEH_F (Length: 158 km) , Distance to epicenter: 128 km | |
| Number of Phases | 18 |
| RMS | 0.5 |
| Number of Stations | 16 |
| Error in Latitude | >2.9 km |
| Error in Longitude | 3.5 km |
| Error in Depth | 6.7 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 131777 | IIEES | BSRN | N | 22478.5 | 0.19 | 2018-05-17 19:46:58 | 2018-05-19 05:04:00 | n |
| 131778 | IIEES | SHRT | E | 1105.3 | 0.79 | 2018-05-17 19:47:51 | 2018-05-19 05:04:00 | n |
| 131779 | IIEES | TABS | N | 1356.1 | 0.52 | 2018-05-17 19:47:59 | 2018-05-19 05:04:00 | n |
| 131780 | IIEES | YZKH | N | 486.8 | 0.68 | 2018-05-17 19:48:52 | 2018-05-19 05:04:00 | n |
| 131781 | IIEES | YZKH | E | 813.9 | 0.6 | 2018-05-17 19:48:53 | 2018-05-19 05:04:00 | n |
| 131782 | IIEES | NASN | N | 66.6 | 0.62 | 2018-05-17 19:49:43 | 2018-05-19 05:04:00 | n |
| 131783 | IIEES | NASN | E | 84 | 0.54 | 2018-05-17 19:49:48 | 2018-05-19 05:04:00 | n |
| 131784 | IIEES | BNDS | E | 74 | 0.63 | 2018-05-17 19:49:48 | 2018-05-19 05:04:00 | n |
| 131785 | IIEES | BNDS | N | 73.2 | 0.49 | 2018-05-17 19:49:50 | 2018-05-19 05:04:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | BSRN | Z | Pg | E | 2018-05-17 19:46:53 | -0.25 | y | 30.9 | 131 | |||
| IIEES | SHRT | Z | Pn | E | 2018-05-17 19:47:21 | -0.04 | y | 212 | 38 | |||
| IIEES | SHRT | E | Sg | E | 2018-05-17 19:47:47 | 0.38 | y | 212 | 38 | |||
| IIEES | TABS | Z | Pn | E | 2018-05-17 19:47:23 | -0.32 | y | 234 | 316 | |||
| IIEES | TABS | N | Sg | E | 2018-05-17 19:47:52 | -0.77 | y | 234 | 316 | |||
| IIEES | ZHSF | Z | Pn | E | 2018-05-17 19:47:36 | -0.23 | y | 335 | 147 | |||
| IIEES | YZKH | Z | Pn | E | 2018-05-17 19:47:45 | 0.24 | y | 405 | 275 | |||
| IIEES | SHRO | Z | Pn | E | 2018-05-17 19:47:57 | -0.25 | y | 503 | 329 | |||
| IIEES | NASN | Z | Pn | E | 2018-05-17 19:48:06 | 0.21 | y | 575 | 279 | |||
| IIEES | BNDS | Z | Pn | E | 2018-05-17 19:48:08 | 0.27 | y | 588 | 207 | |||
| IIEES | BJRD | Z | Pn | E | 2018-05-17 19:48:13 | -0.06 | y | 631 | 348 | |||
| IIEES | MRVT | Z | Pn | E | 2018-05-17 19:48:17 | 0.2 | y | 663 | 338 | |||
| IIEES | CHBR | Z | Pn | E | 2018-05-17 19:48:26 | -0.74 | y | 743 | 167 | |||
| IIEES | DAMV | Z | Pn | E | 2018-05-17 19:48:27 | -0.06 | y | 746 | 303 | |||
| IIEES | GHVR | Z | Pn | E | 2018-05-17 19:48:29 | 0.87 | y | 756 | 292 | |||
| IIEES | CHTH | Z | Pn | E | 2018-05-17 19:48:38 | 0.86 | y | 828 | 302 | |||
| IIEES | KHMZ | Z | Pn | E | 2018-05-17 19:48:42 | 1.06 | y | 852 | 284 | |||
| IIEES | ASAO | Z | Pn | E | 2018-05-17 19:48:43 | 0.74 | y | 866 | 290 | |||
