Magnitude |
:3.1 |
| Date & Time (UTC) | 2018-05-18 04:54:01.5 |
| Date & Time (Local) | 1397/2/28 09:24:01.5 |

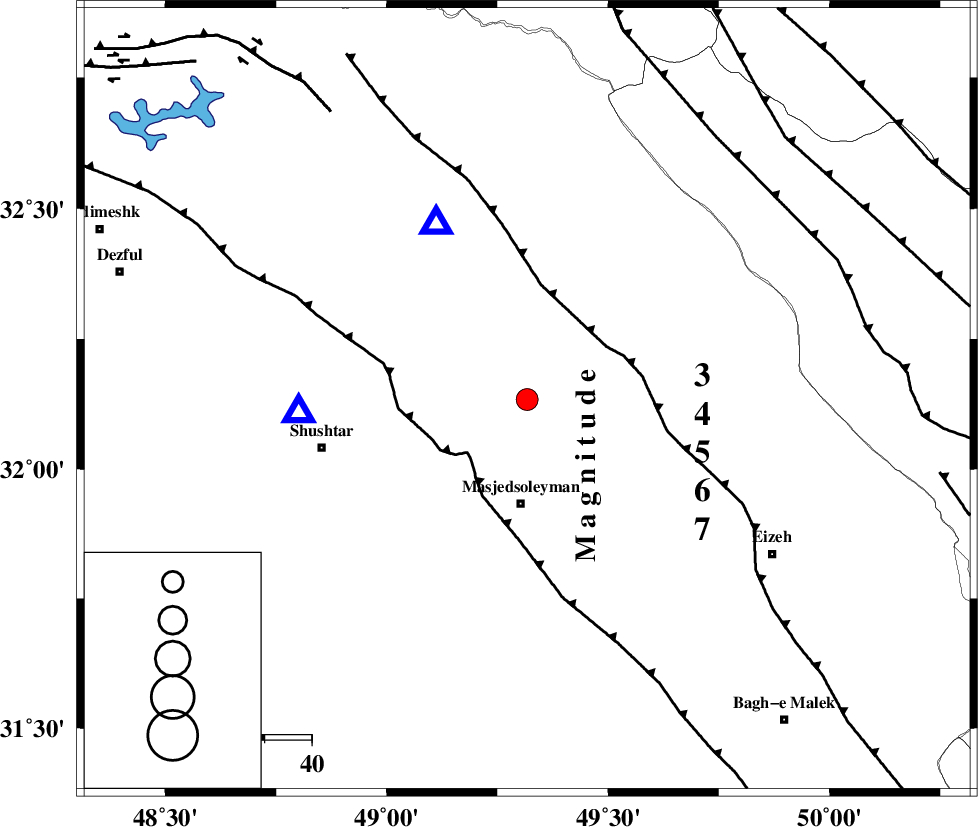

| Location | Lat:32.133 Lon: 49.317 |
| Region | Khoozestan Province, 22 km North of Masjed Soleyman |
Nearest Cities |
|
| 14 km West of Qale-yekhvaju, Khoozestan Province | |
| 22 km North of Masjed Soleyman, Khoozestan Province | |
| 24 km East of Haft shahidan, Khoozestan Province | |
| 24 km South East of Jaefarabad, Khoozestan Province | |
| 29 km South West of Paabshalal, Khoozestan Province | |
| Depth | 17 km |
| Agency | |
Faults within 150 km: |
|
| DEZFUL_EMBAYMENT (Length: 228 km) , Distance to epicenter: 17 km | |
| MFF2 (Length: 205 km) , Distance to epicenter: 20 km | |
| ZARDKUH_F (Length: 139 km) , Distance to epicenter: 69 km | |
| Number of Phases | 14 |
| RMS | 0.2 |
| Number of Stations | 12 |
| Error in Latitude | >2.8 km |
| Error in Longitude | 3.1 km |
| Error in Depth | 6.1 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 131803 | IIEES | KHMZ | E | 143.2 | 0.47 | 2018-05-18 04:55:00 | 2018-05-19 09:15:00 | n |
| 131804 | IIEES | ASAO | N | 35.8 | 0.57 | 2018-05-18 04:55:28 | 2018-05-19 09:15:00 | n |
| 131805 | IIEES | GHVR | E | 42.5 | 0.43 | 2018-05-18 04:55:37 | 2018-05-19 09:15:00 | n |
| 131806 | IIEES | GHVR | N | 56.4 | 0.72 | 2018-05-18 04:55:40 | 2018-05-19 09:15:00 | n |
| 131807 | IIEES | ILBA | N | 89.2 | 0.66 | 2018-05-18 04:55:58 | 2018-05-19 09:15:00 | n |
| 131808 | IIEES | ILBA | E | 50.6 | 0.66 | 2018-05-18 04:56:04 | 2018-05-19 09:15:00 | n |
| 131809 | IIEES | SNGE | N | 15.5 | 0.47 | 2018-05-18 04:56:01 | 2018-05-19 09:15:00 | n |
| 131810 | IIEES | AHRM | N | 23.4 | 0.79 | 2018-05-18 04:55:59 | 2018-05-19 09:15:00 | n |
| 131811 | IIEES | DAMV | N | 11.5 | 0.78 | 2018-05-18 04:56:18 | 2018-05-19 09:15:00 | n |
| 131812 | IIEES | DAMV | E | 10.9 | 0.64 | 2018-05-18 04:56:26 | 2018-05-19 09:15:00 | n |
| 131813 | IIEES | SRSL | E | 20.8 | 0.43 | 2018-05-18 04:56:25 | 2018-05-19 09:15:00 | n |
| 131814 | IIEES | SRSL | N | 12.1 | 0.43 | 2018-05-18 04:56:29 | 2018-05-19 09:15:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | KHMZ | Z | Pg | E | 2018-05-18 04:54:32 | 0.16 | y | 188 | 19 | |||
| IIEES | KHMZ | N | Sg | E | 2018-05-18 04:54:55 | 0.03 | y | 188 | 19 | |||
| IIEES | ASAO | Z | Pn | E | 2018-05-18 04:54:43 | 0.3 | y | 276 | 14 | |||
| IIEES | ASAO | E | Sg | E | 2018-05-18 04:55:19 | -0.19 | y | 276 | 14 | |||
| IIEES | GHVR | Z | Pn | E | 2018-05-18 04:54:48 | 0.34 | y | 316 | 34 | |||
| IIEES | ILBA | Z | Pn | E | 2018-05-18 04:54:50 | -0.13 | y | 335 | 300 | |||
| IIEES | NASN | Z | Pn | E | 2018-05-18 04:54:51 | 0 | y | 336 | 76 | |||
| IIEES | SNGE | Z | Pn | E | 2018-05-18 04:54:55 | -0.23 | y | 376 | 331 | |||
| IIEES | AHRM | Z | Pn | E | 2018-05-18 04:54:59 | 0.19 | y | 409 | 152 | |||
| IIEES | CHTH | Z | Pn | E | 2018-05-18 04:55:05 | 0.08 | y | 451 | 21 | |||
| IIEES | DAMV | Z | Pn | E | 2018-05-18 04:55:06 | -0.05 | y | 459 | 32 | |||
| IIEES | YZKH | Z | Pn | E | 2018-05-18 04:55:10 | -0.51 | y | 498 | 85 | |||
| IIEES | SRSL | Z | Pn | E | 2018-05-18 04:55:20 | 0.03 | y | 577 | 323 | |||
| IIEES | TABS | Z | Pn | E | 2018-05-18 04:55:41 | -0.36 | y | 749 | 75 | |||
