Magnitude |
:4 |
| Date & Time (UTC) | 2018-05-20 11:22:50.4 |
| Date & Time (Local) | 1397/2/30 15:52:50.4 |

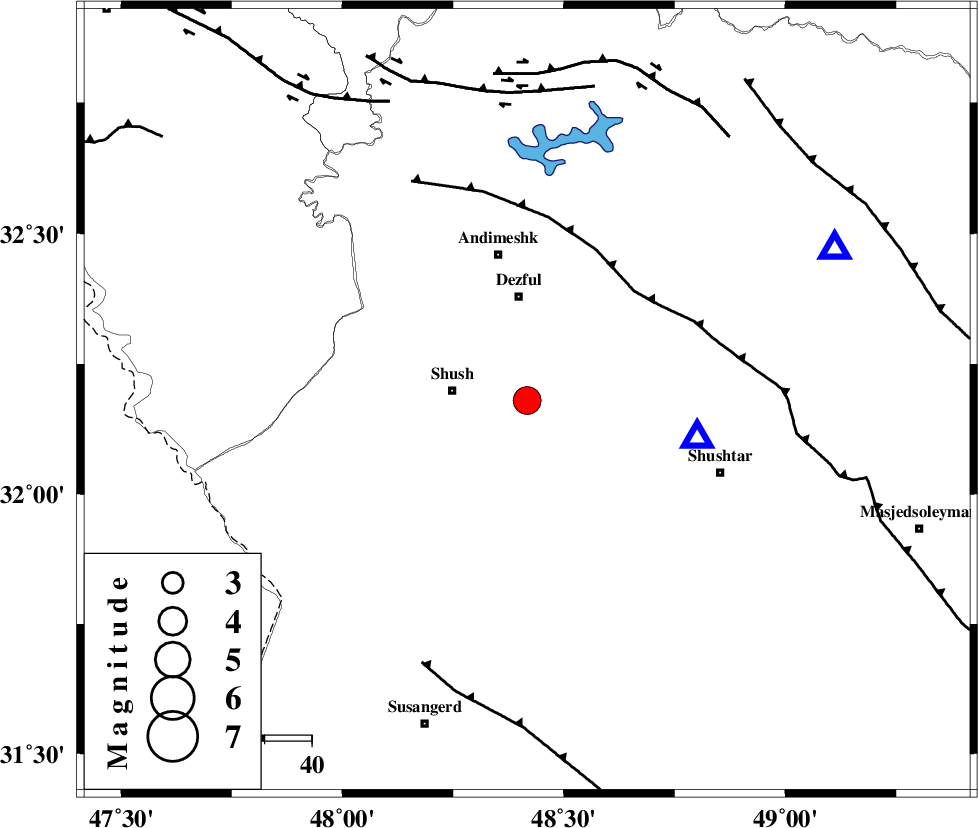

| Location | Lat:32.18 Lon: 48.417 |
| Region | Khoozestan Province, 16 km -East of Shush |
Nearest Cities |
|
| 13 km East of Amaleh teimur, Khoozestan Province | |
| 13 km South of Shamsabad, Khoozestan Province | |
| 16 km East of Shush, Khoozestan Province | |
| 22 km South of Dezful, Khoozestan Province | |
| 32 km South of Andimeshk, Khoozestan Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| DEZFUL_EMBAYMENT (Length: 228 km) , Distance to epicenter: 33 km | |
| AHVAZ_F (Length: 99 km) , Distance to epicenter: 60 km | |
| BALARUD_F_Z3 (Length: 53 km) , Distance to epicenter: 66 km | |
| Number of Phases | 19 |
| RMS | 0.6 |
| Number of Stations | 19 |
| Error in Latitude | >5.9 km |
| Error in Longitude | 3.7 km |
| Error in Depth | 0 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 132050 | IIEES | KHMZ | E | 586 | 0.58 | 2018-05-20 11:24:01 | 2018-05-21 04:12:00 | n |
| 132051 | IIEES | ILBA | E | 474.5 | 0.41 | 2018-05-20 11:24:08 | 2018-05-21 04:12:00 | n |
| 132052 | IIEES | ASAO | N | 239 | 0.7 | 2018-05-20 11:24:24 | 2018-05-21 04:12:00 | n |
| 132053 | IIEES | GHVR | E | 382.1 | 0.56 | 2018-05-20 11:24:37 | 2018-05-21 04:12:00 | n |
| 132054 | IIEES | GHVR | N | 370.2 | 0.65 | 2018-05-20 11:24:43 | 2018-05-21 04:12:00 | n |
| 132055 | IIEES | AHRM | E | 194.6 | 0.44 | 2018-05-20 11:24:47 | 2018-05-21 04:12:00 | n |
| 132056 | IIEES | AHRM | N | 178.7 | 0.44 | 2018-05-20 11:24:52 | 2018-05-21 04:12:00 | n |
| 132057 | IIEES | THKV | N | 145.5 | 0.92 | 2018-05-20 11:25:30 | 2018-05-21 04:12:00 | n |
| 132058 | IIEES | DAMV | N | 67.1 | 0.55 | 2018-05-20 11:25:24 | 2018-05-21 04:12:00 | n |
| 132059 | IIEES | GIDE | E | 61.4 | 0.59 | 2018-05-20 11:25:16 | 2018-05-21 04:12:00 | n |
| 132060 | IIEES | GIDE | N | 84.7 | 0.29 | 2018-05-20 11:25:38 | 2018-05-21 04:12:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | KHMZ | Z | Pn | E | 2018-05-20 11:23:25 | -0.24 | y | 226 | 39 | |||
| IIEES | ILBA | Z | Pn | E | 2018-05-20 11:23:31 | 0.74 | y | 261 | 308 | |||
| IIEES | ASAO | Z | Pn | E | 2018-05-20 11:23:35 | 0.22 | y | 302 | 29 | |||
| IIEES | SNGE | Z | Pn | E | 2018-05-20 11:23:39 | -1.06 | y | 338 | 343 | |||
| IIEES | GHVR | Z | Pn | E | 2018-05-20 11:23:44 | 1.45 | y | 367 | 45 | |||
| IIEES | NASN | Z | Pn | E | 2018-05-20 11:23:50 | 0.4 | y | 418 | 79 | |||
| IIEES | AHRM | Z | Pn | E | 2018-05-20 11:23:55 | 0.42 | y | 460 | 142 | |||
| IIEES | THKV | Z | Pn | E | 2018-05-20 11:23:57 | 0.66 | y | 473 | 28 | |||
| IIEES | CHTH | Z | Pn | E | 2018-05-20 11:23:57 | -0.52 | y | 483 | 30 | |||
| IIEES | ZNJK | Z | Pn | E | 2018-05-20 11:24:00 | -0.09 | y | 499 | 3 | |||
| IIEES | DAMV | Z | Pn | E | 2018-05-20 11:24:00 | -0.35 | y | 504 | 40 | |||
| IIEES | SRSL | Z | Pn | E | 2018-05-20 11:24:03 | -0.19 | y | 525 | 329 | |||
| IIEES | GIDE | Z | Pn | E | 2018-05-20 11:24:05 | -0.26 | y | 544 | 14 | |||
| IIEES | YZKH | Z | Pn | E | 2018-05-20 11:24:10 | -0.25 | y | 582 | 86 | |||
| IIEES | GHIR | Z | Pn | E | 2018-05-20 11:24:13 | -0.93 | y | 616 | 133 | |||
| IIEES | GRMI | Z | Pn | E | 2018-05-20 11:24:29 | -0.16 | y | 737 | 356 | |||
| IIEES | SHRO | Z | Pn | E | 2018-05-20 11:24:39 | -0.38 | y | 819 | 57 | |||
| IIEES | TABS | Z | Pn | E | 2018-05-20 11:24:40 | -0.33 | y | 830 | 76 | |||
| IIEES | BSRN | Z | Pn | E | 2018-05-20 11:25:02 | -0.97 | y | 1011 | 89 | |||
