Magnitude |
:4.2 |
| Date & Time (UTC) | 2018-05-22 00:31:54.0 |
| Date & Time (Local) | 1397/3/1 05:01:54.0 |
| Location | Lat:34.907 Lon: 45.812 |
| Region | Kermanshah Province, 16 km North of Tazehabad |
Nearest Cities |
|
| 16 km North West of Dehsheykh, Kermanshah Province | |
| 16 km North of Tazehabad, Kermanshah Province | |
| 19 km North of Tappeh rash, Kermanshah Province | |
| 22 km North of Gardehnu, Kermanshah Province | |
| 22 km South West of Markhil, Kermanshah Province | |
| Depth | 17 km |
| Agency | |

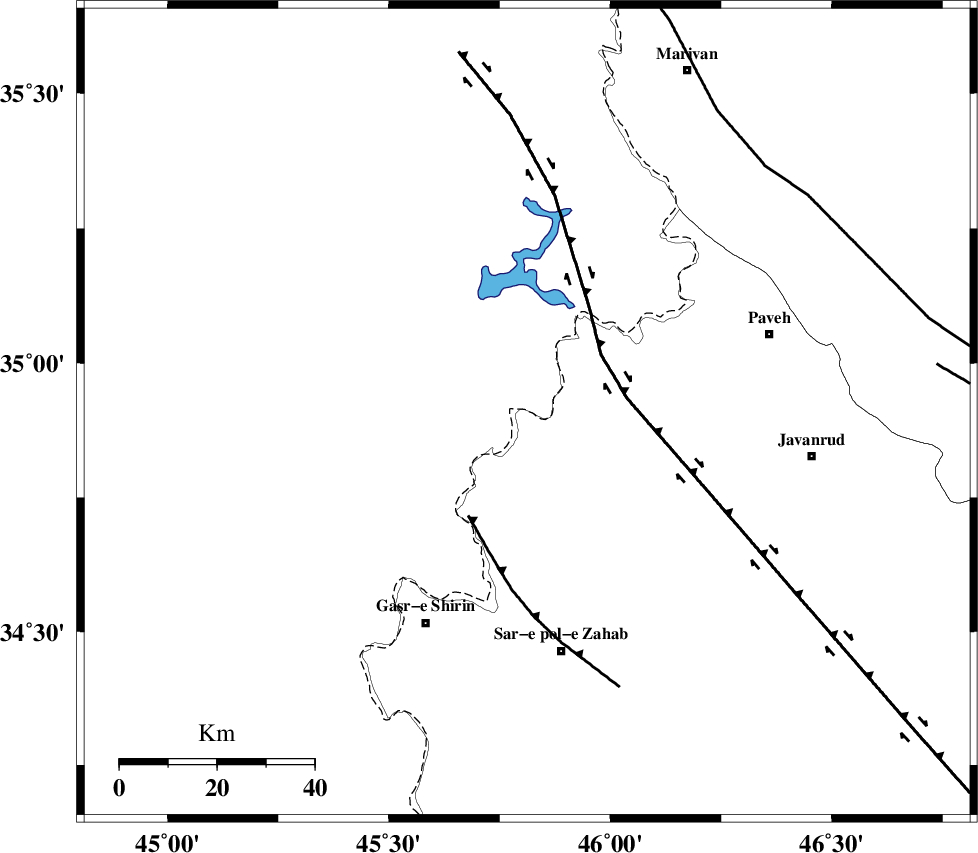

Faults within 150 km: |
|
| HZF4 (Length: 492 km) , Distance to epicenter: 19 km | |
| MFF8 (Length: 48 km) , Distance to epicenter: 24 km | |
| PIRANSHAHR_F (Length: 253 km) , Distance to epicenter: 71 km | |
| Number of Phases | 19 |
| RMS | 0.7 |
| Number of Stations | 16 |
| Error in Latitude | >3.9 km |
| Error in Longitude | 7.5 km |
| Error in Depth | 8.8 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 132123 | IIEES | SNGE | N | 3075.2 | 0.6 | 2018-05-22 00:32:36 | 2018-05-22 04:10:00 | n |
| 132124 | IIEES | SRSL | N | 4245.4 | 0.31 | 2018-05-22 00:32:44 | 2018-05-22 04:10:00 | n |
| 132125 | IIEES | GIDE | N | 275.6 | 0.74 | 2018-05-22 00:34:09 | 2018-05-22 04:10:00 | n |
| 132126 | IIEES | GIDE | E | 223.9 | 0.96 | 2018-05-22 00:34:12 | 2018-05-22 04:10:00 | n |
| 132127 | IIEES | GHVR | N | 125.7 | 0.69 | 2018-05-22 00:34:31 | 2018-05-22 04:10:00 | n |
| 132128 | IIEES | GHVR | E | 164.2 | 0.69 | 2018-05-22 00:34:39 | 2018-05-22 04:10:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | SNGE | Z | Pg | E | 2018-05-22 00:32:13 | -3.79 | n | 4 | 142 | 81 | ||
| IIEES | ILBA | Z | Pg | E | 2018-05-22 00:32:16 | -1.82 | n | 4 | 147 | 166 | ||
| IIEES | ILBA | N | Sg | E | 2018-05-22 00:32:36 | 0.46 | y | 147 | 166 | |||
| IIEES | SRSL | Z | Pg | E | 2018-05-22 00:32:18 | -0.38 | y | 149 | 347 | |||
| IIEES | SRSL | E | Sg | E | 2018-05-22 00:32:37 | -0.02 | y | 149 | 347 | |||
| IIEES | ZNJK | Z | Pn | E | 2018-05-22 00:32:42 | -0.02 | y | 325 | 52 | |||
| IIEES | ASAO | Z | Pn | E | 2018-05-22 00:32:50 | 0.83 | y | 388 | 95 | |||
| IIEES | ASAO | N | Sg | E | 2018-05-22 00:33:42 | -0.1 | y | 388 | 95 | |||
| IIEES | KHMZ | Z | Pn | E | 2018-05-22 00:32:51 | -0.6 | y | 403 | 108 | |||
| IIEES | GIDE | Z | Pn | E | 2018-05-22 00:32:55 | 0.32 | y | 432 | 58 | |||
| IIEES | GRMI | Z | Pn | E | 2018-05-22 00:33:00 | 0.35 | y | 471 | 23 | |||
| IIEES | THKV | Z | Pn | E | 2018-05-22 00:33:00 | -0.36 | y | 474 | 75 | |||
| IIEES | CHTH | Z | Pn | E | 2018-05-22 00:33:03 | 0.79 | y | 495 | 76 | |||
| IIEES | GHVR | Z | Pn | E | 2018-05-22 00:33:03 | 0.14 | y | 500 | 94 | |||
| IIEES | MAKU | Z | Pn | E | 2018-05-22 00:33:04 | 0.39 | y | 504 | 349 | |||
| IIEES | DAMV | Z | Pn | E | 2018-05-22 00:33:12 | 0.35 | y | 566 | 80 | |||
| IIEES | NASN | Z | Pn | E | 2018-05-22 00:33:25 | -1.67 | y | 688 | 108 | |||
| IIEES | AHRM | Z | Pn | E | 2018-05-22 00:33:44 | -1.99 | y | 847 | 141 | |||
| IIEES | SHRO | Z | Pn | E | 2018-05-22 00:33:57 | -0.42 | y | 934 | 80 | |||
