Magnitude |
:3.1 |
| Date & Time (UTC) | 2018-05-22 02:32:18.4 |
| Date & Time (Local) | 1397/3/1 07:02:18.4 |

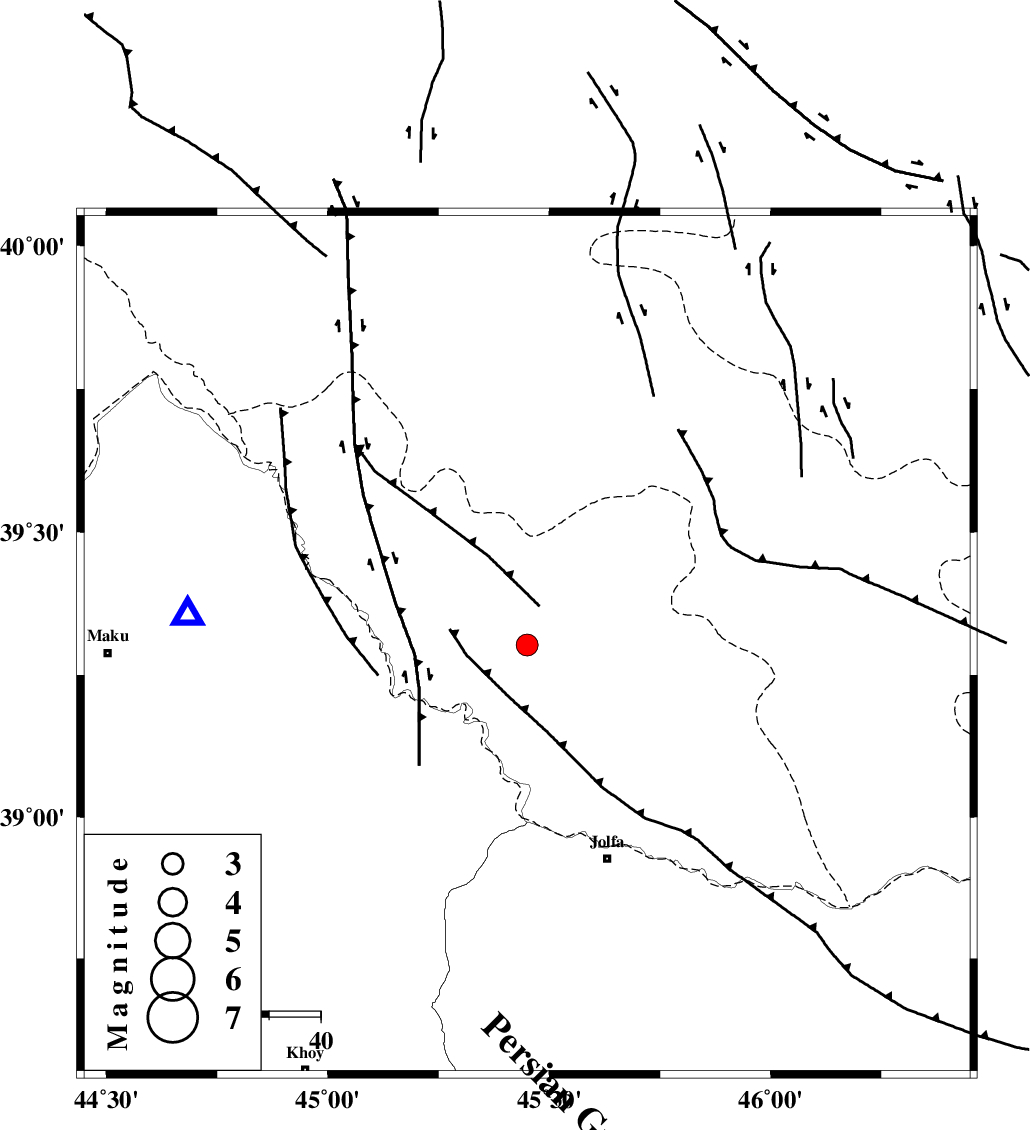

| Location | Lat:39.302 Lon: 45.45 |
| Region | Azerbaijan, 11 km of Nakhicevan |
Nearest Cities |
|
| 11 km North of Nakhicevan, Azerbaijan Province | |
| 27 km North East of Big khan, Azarbaijan Gharbi Province | |
| 33 km East of Paldasht, Azarbaijan Gharbi Province | |
| 40 km North East of Bohlulabad, Azarbaijan Gharbi Province | |
| 42 km North East of Margan, Azarbaijan Gharbi Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| KHOY (Length: 100 km) , Distance to epicenter: 78 km | |
| N_TABRIZ_F1 (Length: 222 km) , Distance to epicenter: 96 km | |
| N_TABRIZ_F3 (Length: 66 km) , Distance to epicenter: 101 km | |
| Number of Phases | 6 |
| RMS | 0.2 |
| Number of Stations | 4 |
| Error in Latitude | >6.7 km |
| Error in Longitude | 2 km |
| Error in Depth | 5.9 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 132135 | IIEES | MAKU | N | 1075.9 | 0.32 | 2018-05-22 02:32:44 | 2018-05-22 04:10:00 | n |
| 132136 | IIEES | MAKU | E | 1174.9 | 0.26 | 2018-05-22 02:32:46 | 2018-05-22 04:10:00 | n |
| 132137 | IIEES | GRMI | E | 149 | 0.56 | 2018-05-22 02:33:29 | 2018-05-22 04:10:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | MAKU | Z | Pg | E | 2018-05-22 02:32:30 | -0.03 | y | 66.3 | 275 | |||
| IIEES | MAKU | N | Sg | E | 2018-05-22 02:32:38 | -0.08 | y | 66.3 | 275 | |||
| IIEES | GRMI | Z | Pn | E | 2018-05-22 02:32:53 | 0.31 | y | 218 | 104 | |||
| IIEES | GRMI | E | Sg | E | 2018-05-22 02:33:20 | -0.26 | y | 218 | 104 | |||
| IIEES | SRSL | Z | Pn | E | 2018-05-22 02:33:08 | 0 | y | 343 | 180 | |||
| IIEES | ZNJK | Z | Pn | E | 2018-05-22 02:33:17 | 0.08 | y | 407 | 135 | |||
